3.3.6 Disassembling and assembling the throat plate

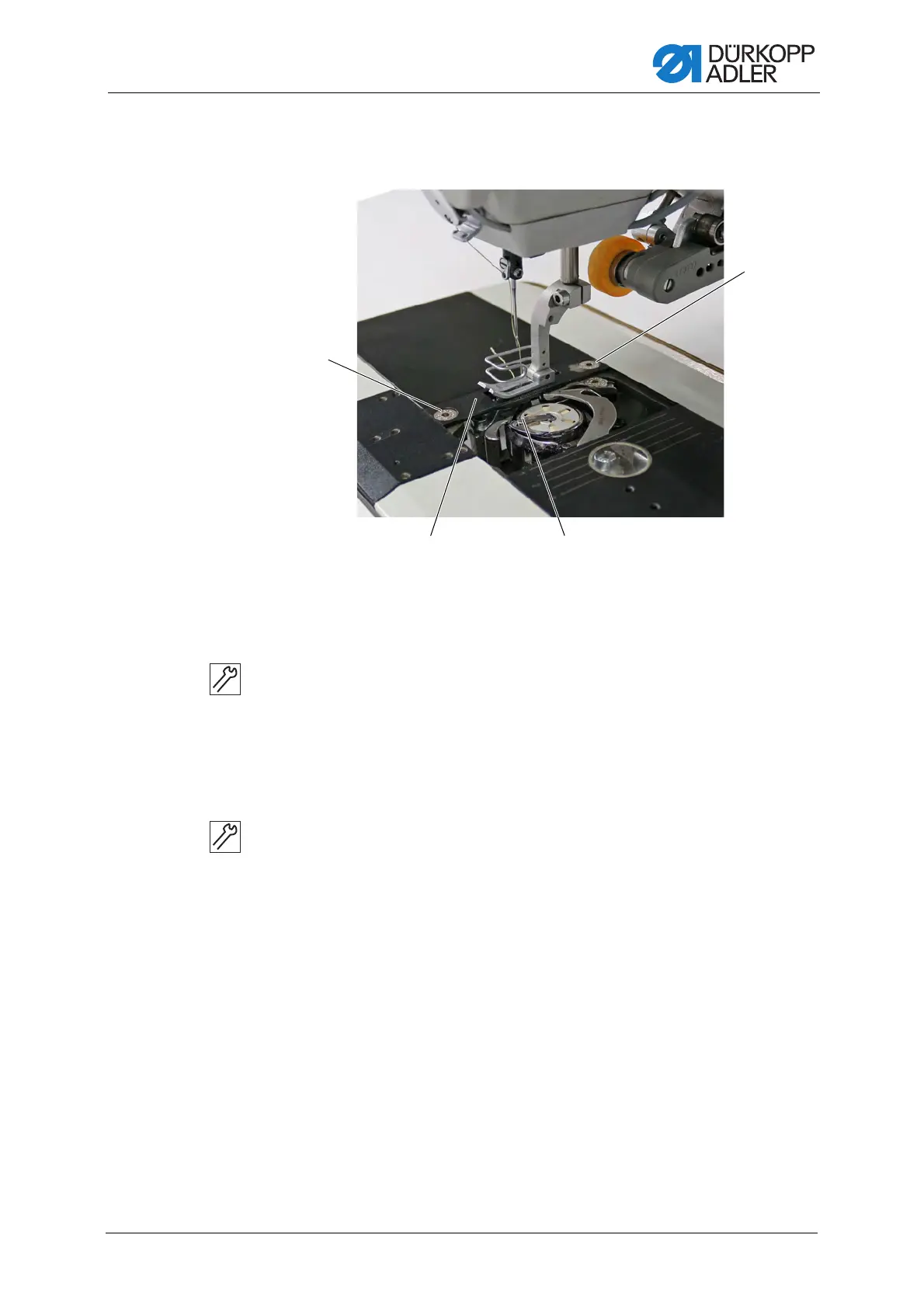

Fig. 6: Disassembling and assembling the throat plate
Disassembling the throat plate
To disassemble the throat plate:
1. Open the throat plate slide ( p. 18).
2. Loosen the screws (1).
3. Disassemble the throat plate (2).
Assembling the throat plate
To assemble the throat plate:
1. Insert the throat plate (2).
Ensure that the bobbin case nose (3) is in the cutout of the throat plate.
2. Tighten the screws (1).
3. Close the throat plate slide.
(1) - Screws
(2) - Throat plate
(3) - Bobbin case nose
