Adjusting the feed dog
38 Service Instructions 827/827-M - 01.0 - 05/2019
9 Adjusting the feed dog
The position and the movement of the feed dog and needle bar have to
be coordinated such that the needle pierces exactly in the center of
the needle hole of the feed dog.
Order
First, check the following adjustment:
Needle bar linkage( p. 35)
9.1 Adjusting the feed dog position
Proper setting
The feed dog is exactly in the center of the throat plate cutout, both
sideways and in the sewing direction.
If the stitch length is 0, the needle pierces exactly in the center of
the needle hole.
9.1.1 Moving the feed dog on the feed dog carrier

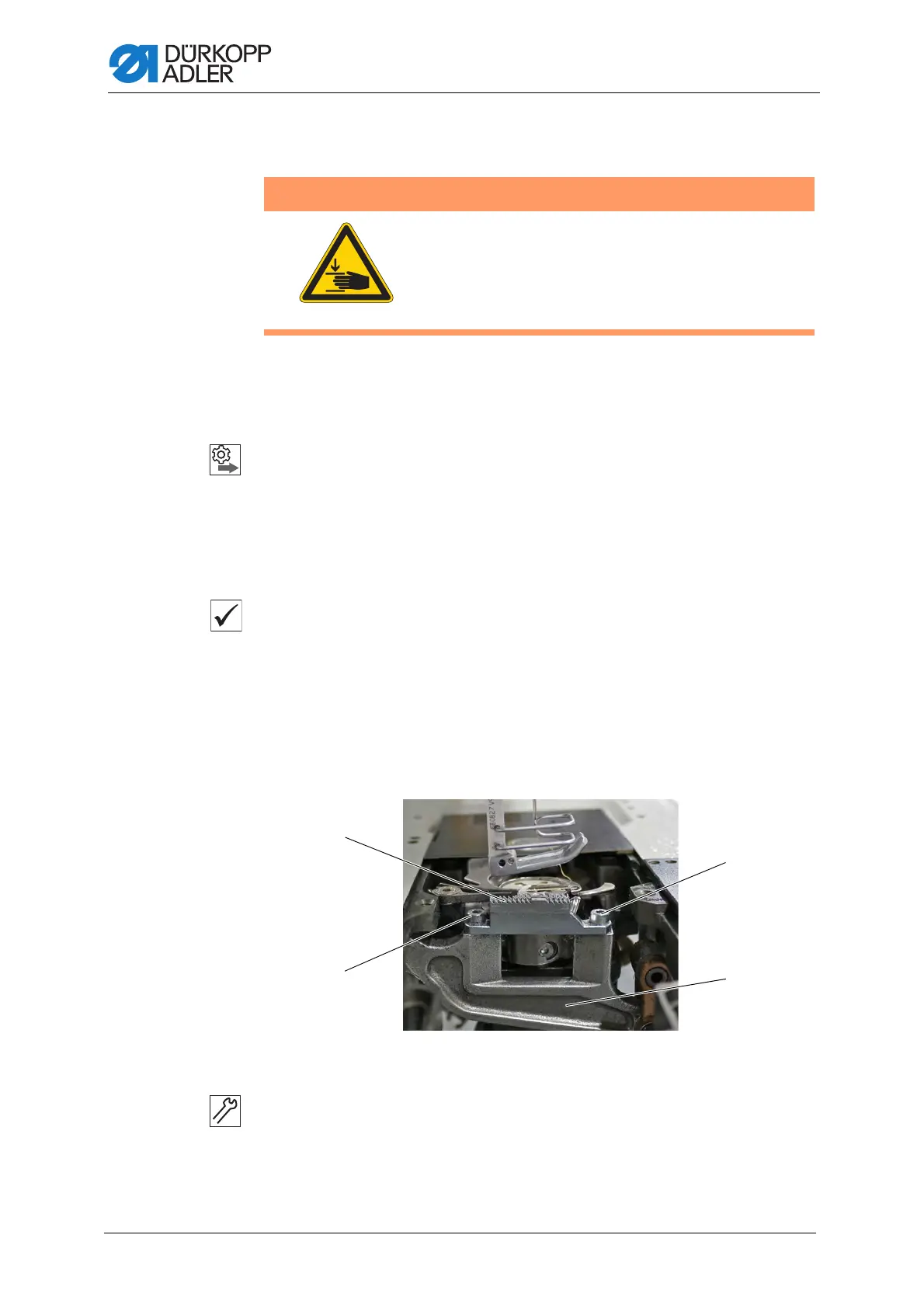

Fig. 23: Moving the feed dog on the feed dog carrier
To move the feed dog on the feed dog carrier:
1. Disassemble the throat plate ( p. 19).
2. Loosen the screws (2).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before adjusting the feed
dog.
(1) - Feed dog
(2) - Screws
(3) - Feed dog carrier
