Integrated motor
78 Service Instructions 827/827-M - 01.0 - 05/2019
18 Integrated motor
18.1 Overview of the components

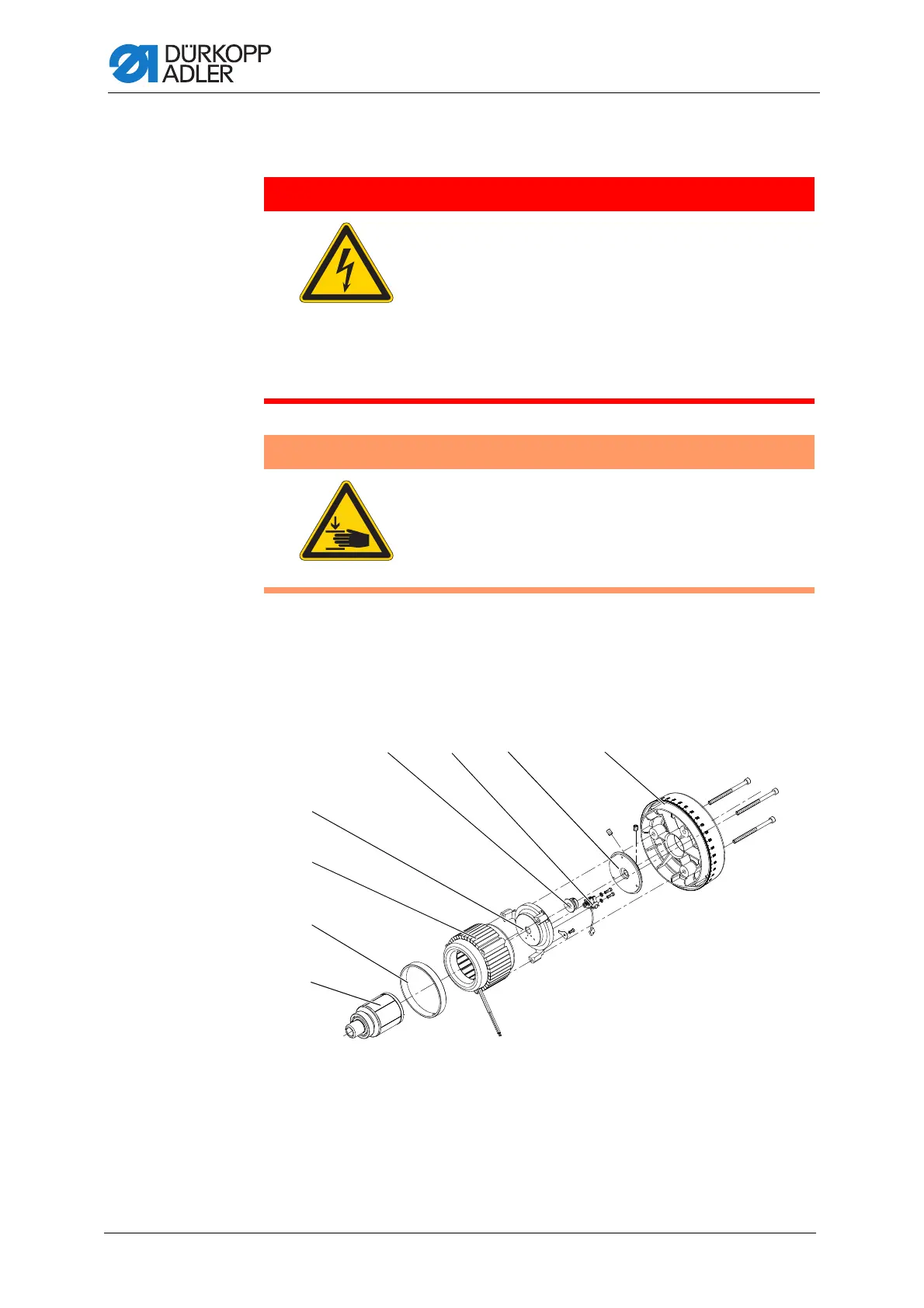

Fig. 59: Overview of the components
DANGER
Risk of injury from electricity!
Unprotected contact with electricity can result in
serious injuries or death.
Work on the electrical system must ONLY be
carried out by qualified electricians or appropriately
trained and authorized personnel.
ALWAYS pull the power plug before working on
the electrical equipment.
WARNING
Risk of injury from moving parts!
Crushing possible.
The machine may only be disassembled and
assembled by trained specialists.
(1) - Handwheel
(2) - Handwheel flange
(3) - Encoder
(4) - Encoder disk
(5) - Cover plate
(6) - Stator
(7) - Ring
(8) - Rotor
