Position of the hook and needle
48 Service Instructions 827/827-M - 01.0 - 05/2019
6. Tighten the screw (2).
7. Remove the lock.
Order
Then check the following adjustment:
Needle guard ( p. 48)
10.4 Adjusting the needle guard
The needle guard prevents contact between needle and hook tip.
Order
First, check the following adjustments:
Looping stroke position ( p. 44)
Hook side clearance ( p. 46)
Needle bar height ( p. 47)
A straight and undamaged needle has to be inserted ( Operating
Instructions)

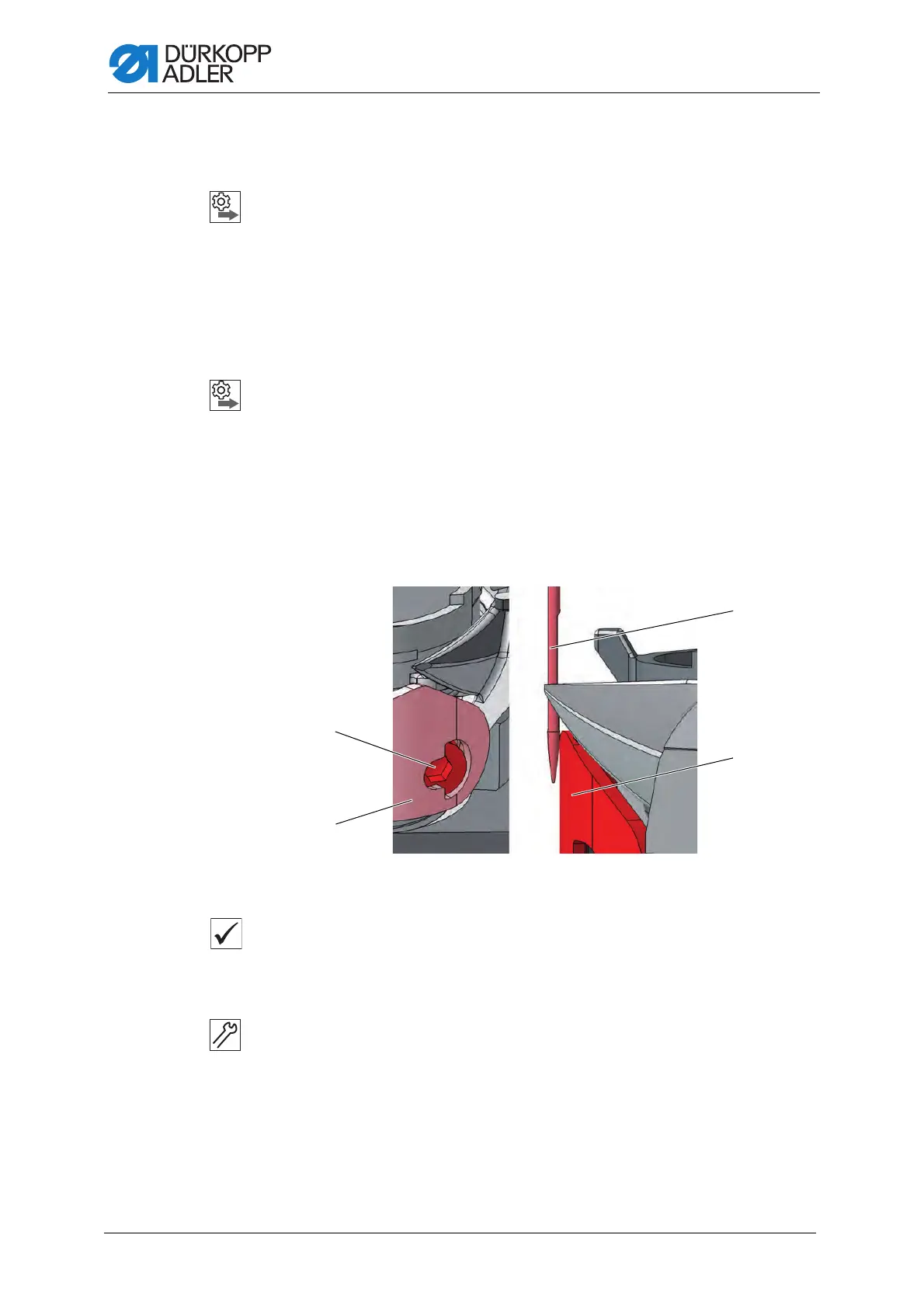

Fig. 32: Adjusting the needle guard
Proper setting
1. Lock the machine in place at position 1 ( p. 22).
The needle guard pushes the needle just enough away so that it
cannot be touched by the hook tip.
To adjust the needle guard:
1. Disassemble the feed dog ( p. 20).
2. Turn the handwheel and check how far the needle guard (2) pushes
the needle away.
(1) - Screw
(2) - Needle guard
(3) - Needle
