Puller
70 Service Instructions 827/827-M - 01.0 - 05/2019
To adjust the lower end position:
1. Loosen the counternut (5).
2. Turn the threaded pin (6).
lifting: Turn the threaded pin (6) clockwise
lowering: Turn the threaded pin (6) counterclockwise
3. Tighten the counternut (5).
15.4 Adjusting the carrier roller pressure

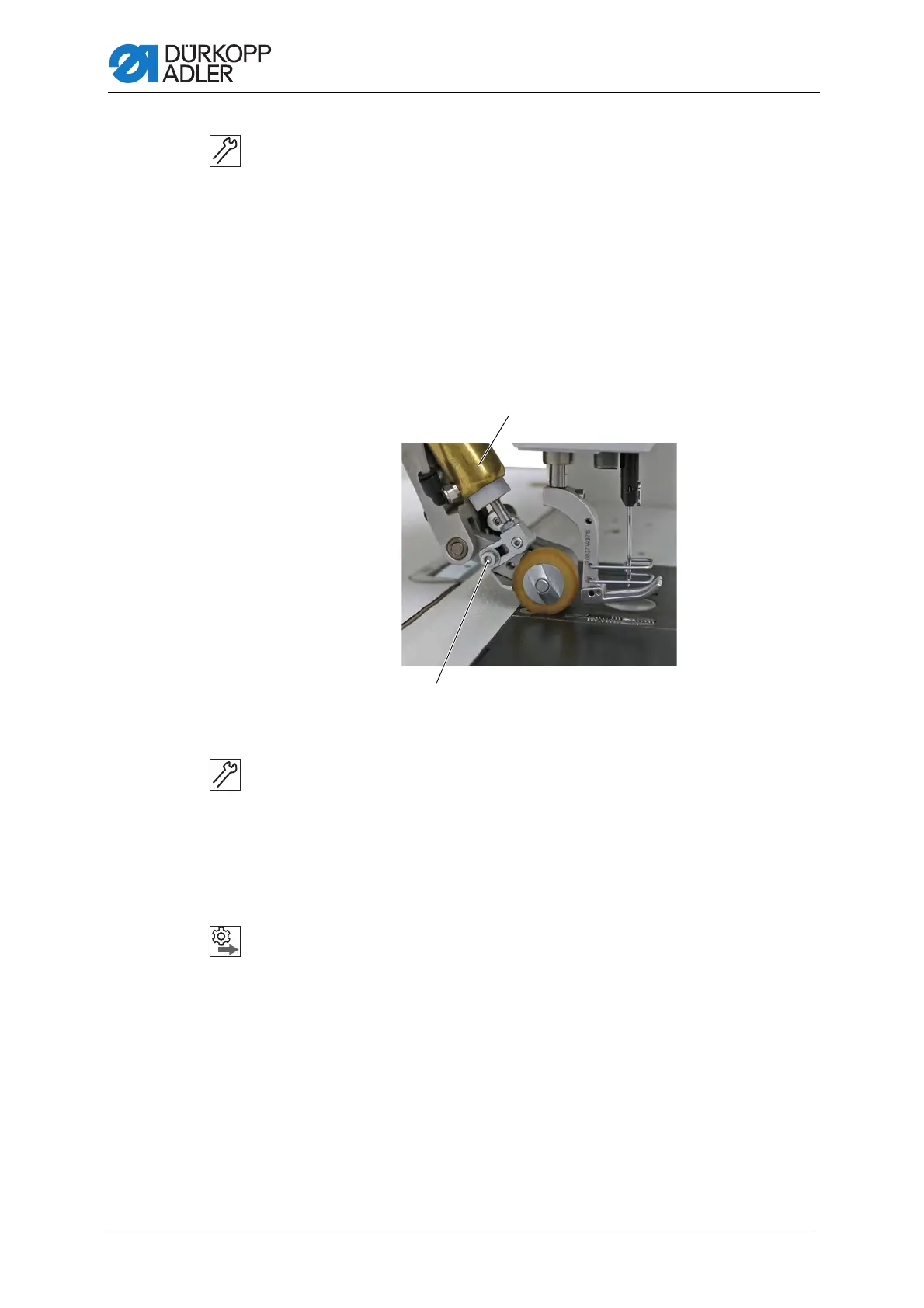

Fig. 51: Adjusting the carrier roller pressure
To adjust the carrier roller pressure:
1. Loosen the screw (2).
2. Move the cylinder (1).
To reduce pressure: Slide the cylinder (1) to the back
To increase pressure: Slide the cylinder (1) to the front
3. Tighten the screw (2).
Order
Proceed by adjusting the upper end position of the carrier roller
stroke ( p. 69).
(1) - Cylinder (2) - Screw
