3.3.7 Disassembling and assembling the feed dog

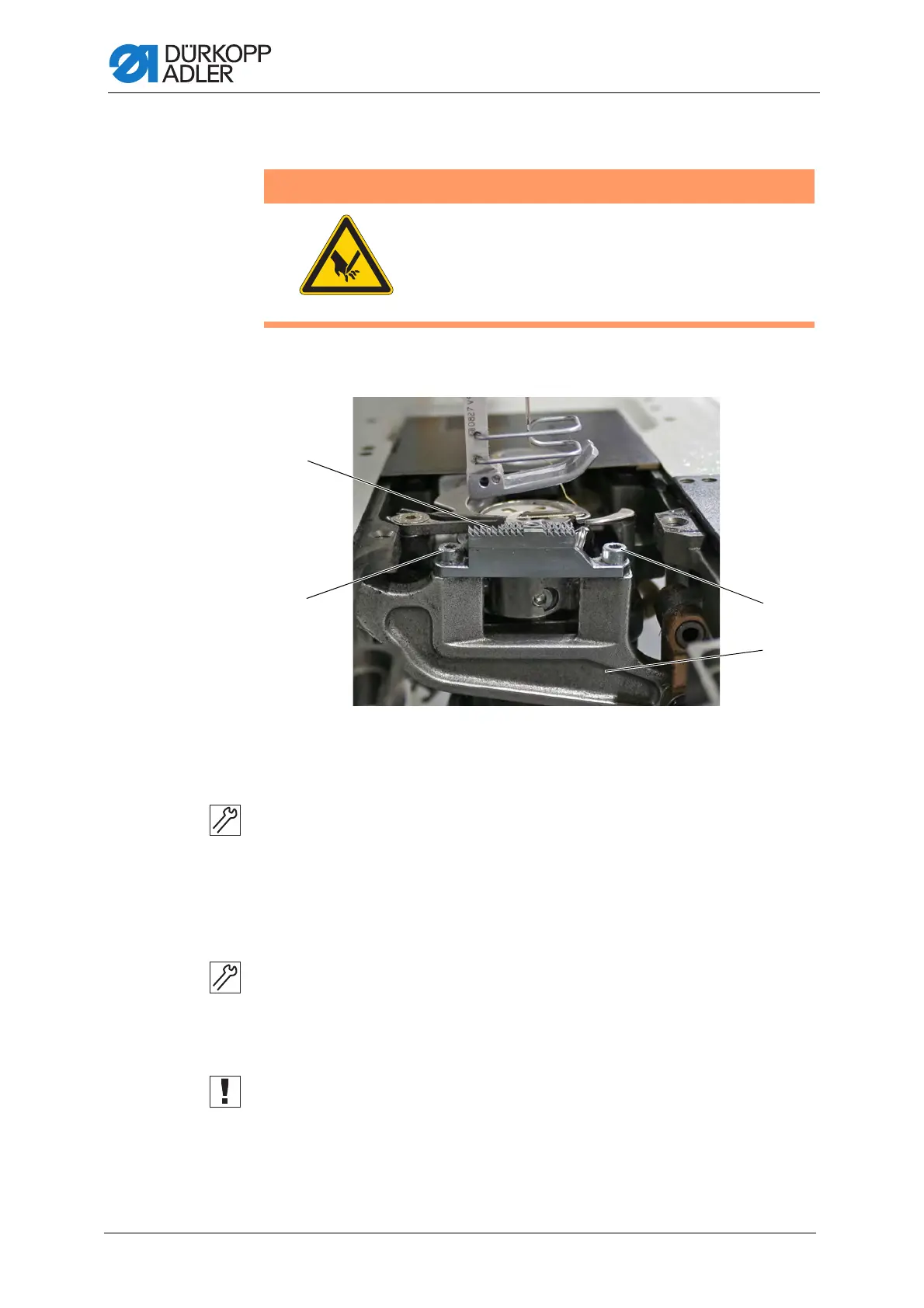

Fig. 7: Disassembling and assembling the feed dog
Disassembling the feed dog
To disassemble the feed dog:
1. Disassemble the throat plate ( p. 19).
2. Loosen the screws (2).
3. Disassemble the feed dog (1) from the feed dog carrier (3).
Assembling the feed dog
To assemble the feed dog:
1. Assemble the feed dog (1) onto the feed dog carrier (3).
2. Tighten the screws (2).
3. Assemble the throat plate ( p. 19).
Important
Check the feed dog position in motion and with the stitch length at its
maximum by turning the handwheel. The feed dog must not hit against
the throat plate.
WARNING
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before you disassemble or
assemble the feed dog.
(1) - Feed dog
(2) - Screws
(3) - Feed dog carrier
