3.5 Locking the machine in place
For some adjustments, the machine must be locked in place. To do this,
the locking peg (3) from the accessory pack is inserted into a slot on the
arm shaft crank, blocking the arm shaft.

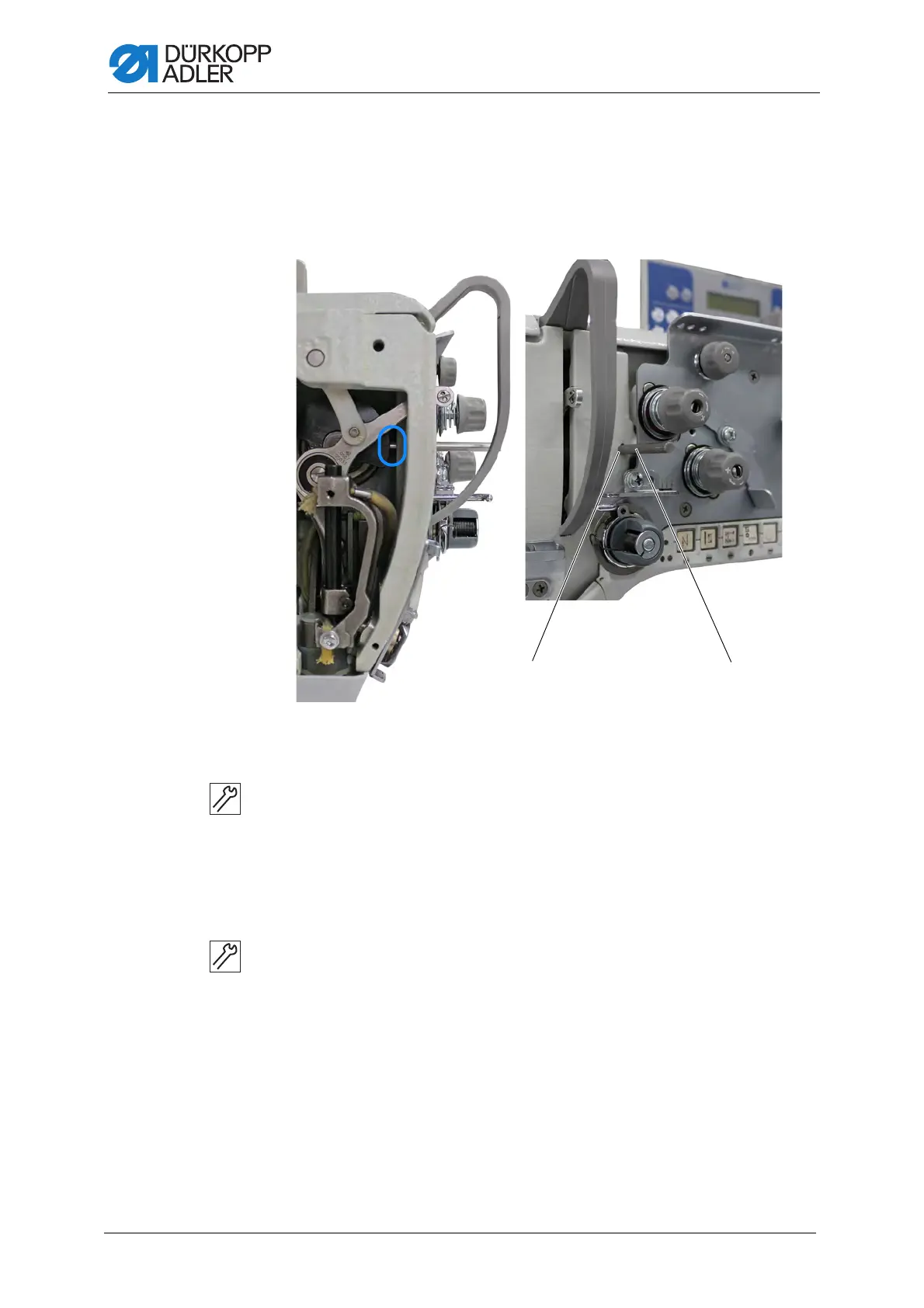

Fig. 9: Locking the machine in place
Locking the machine in place
To lock the machine in place:
1. Remove the plug from the locking opening (1).
2. Turn the handwheel until the slot is in front of the locking opening (1).
3. Insert the locking peg (2) into the slot.
Removing the lock
To remove the lock:
1. Pull the locking peg (2) out of the slot.
2. Insert the plug into the locking opening (1).
(3) - Locking opening (3) - Locking peg
