Winder
Service Instructions 827/827-M - 01.0 - 05/2019 57
Adjusting the winder run

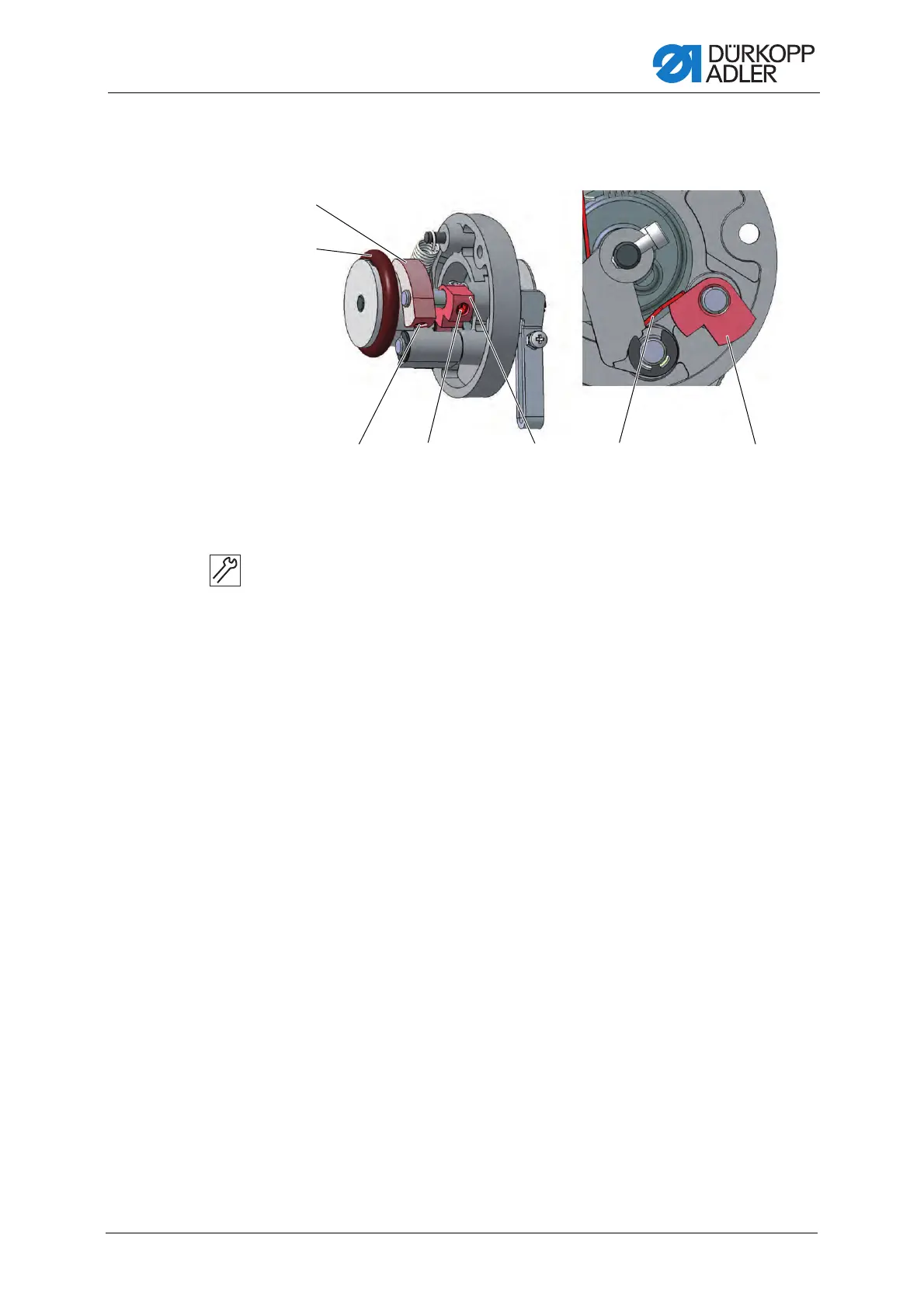

Fig. 40: Adjusting the winder run
To adjust the winder run:
1. Loosen the threaded pin (12).
2. Adjust the switch cam (13) such that it is just contacting the leaf
spring (14) when the block (8) has engaged in the locking disk.
3. Adjust the switch cam (13) such that the winder lever (3) has no axial
play.
4. Tighten the threaded pin (12).
5. Re-assemble the winder.
(8) - Block
(10) - Winder wheel
(11) - Threaded pin
(12) - Threaded pin
(13) - Switch cam
(14) - Leaf spring
