Thread trimmer
Service Instructions 827/827-M - 01.0 - 05/2019 61
Important
The set collar (1) and control cam (3) are both mutually used as a stop
and must not be loosened at the same time.
Tighten the threaded pins (2) before you loosen the threaded pins (4).
6. Loosen the threaded pins (5).
7. Press the lever (8) against the solenoid (9).
8. Turn the control cam (3) such that its widest extent (6) is at the top,
next to the roller (5).
9. Move the control cam (3) such that the distance between its widest
extent (6) and the roller (5) is 0.1 mm at most.
10. Tighten the threaded pins (4).
11. Loosen the clamping screw (7).

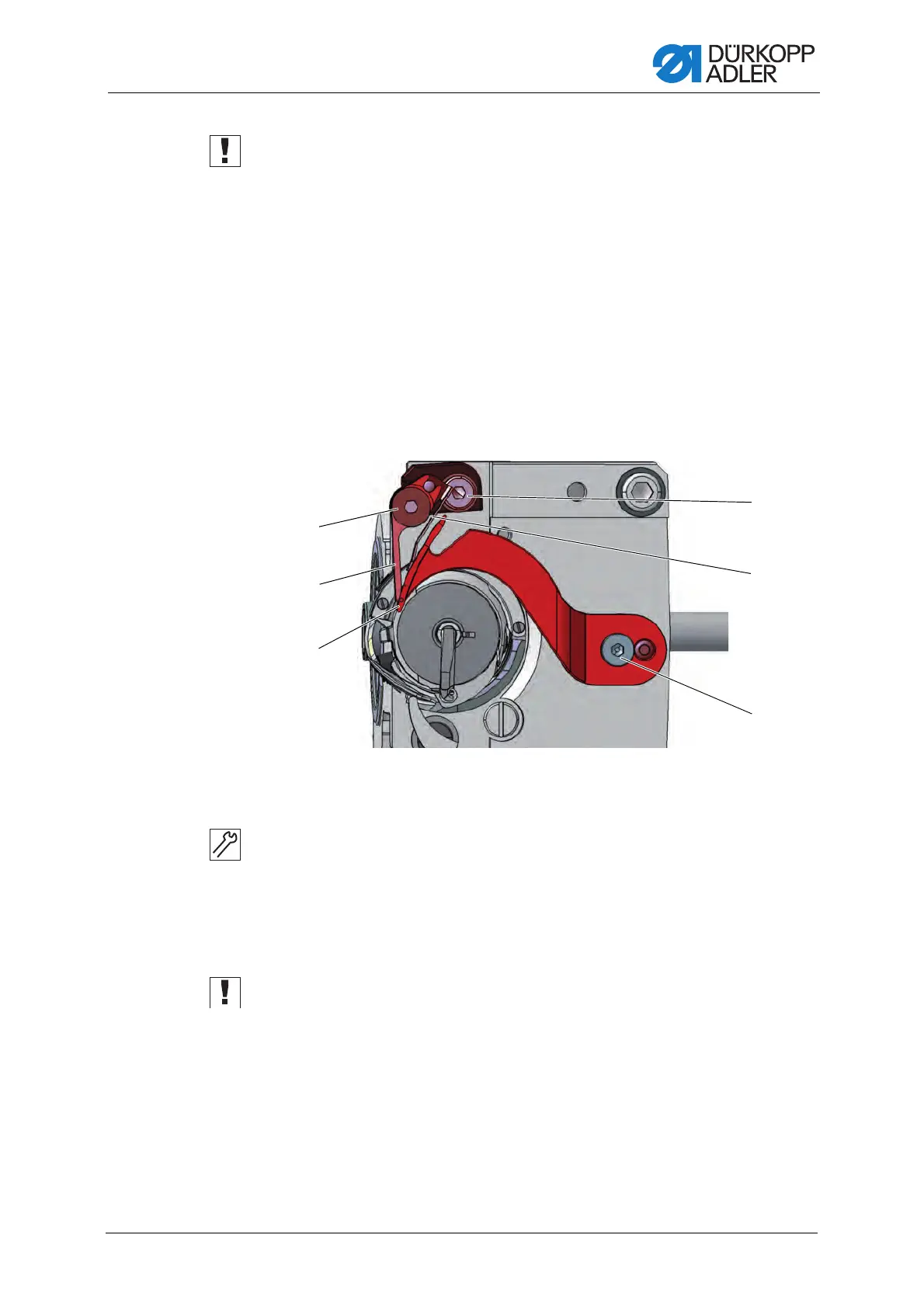

Fig. 44: Adjusting the cutoff curve (2)
12. Turn the thread-pulling knife (12) such that the circle mark is exactly
next to the tip of the counter blade (11).
13. Tighten the clamping screw (7) such that the lever (8) has no axial play.
14. Loosen the threaded pins (2).
15. Push the set collar (1) to the right as far as it will go and against
the control cam (3).
Important
Check the looping stroke position ( p. 44).
16. Tighten the threaded pins (2).
(10) - Screw
(11) - Counter blade
(12) - Thread-pulling knife
(13) - Screw
(14) - Hook thread clamp
(15) - Screw
