dynabook PORTEGE X30L-J Series - Figure 4-21 Removing the W-LAN ANTENNA(1)

Maintenance Manual (960-943) 4-27
Replacement Procedures
4.21.2 Removing the W-LAN ANTENNA
1. Remove the the following screws and disconnect CORNER CAP R (W-
LAN ANTENNA MAIN (white cable).
2. Open the INSU and release the W-LAN ANTENNA CABLE (W-LAN
ANTENNA AUX (black cable).
3. Disconnect CORNER CAP L.

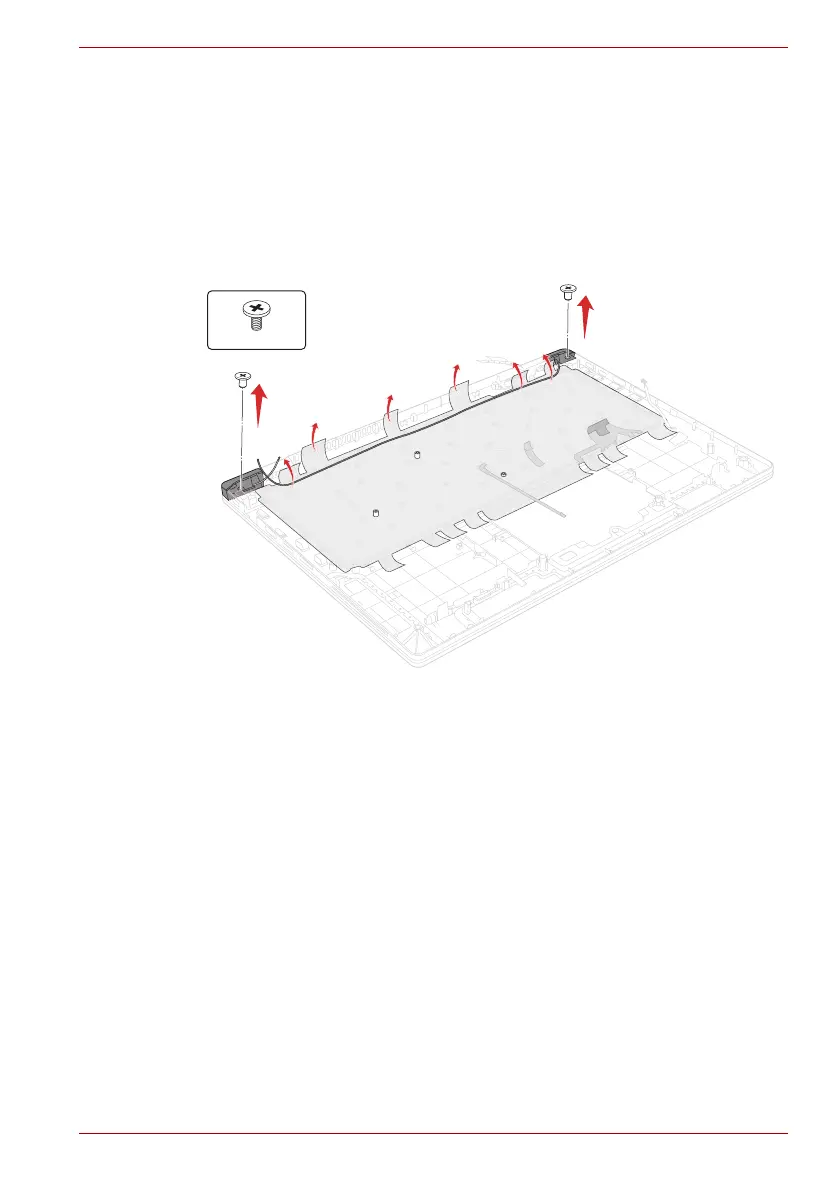

Figure 4-21 Removing the W-LAN ANTENNA(1)
S2 x 3CT
