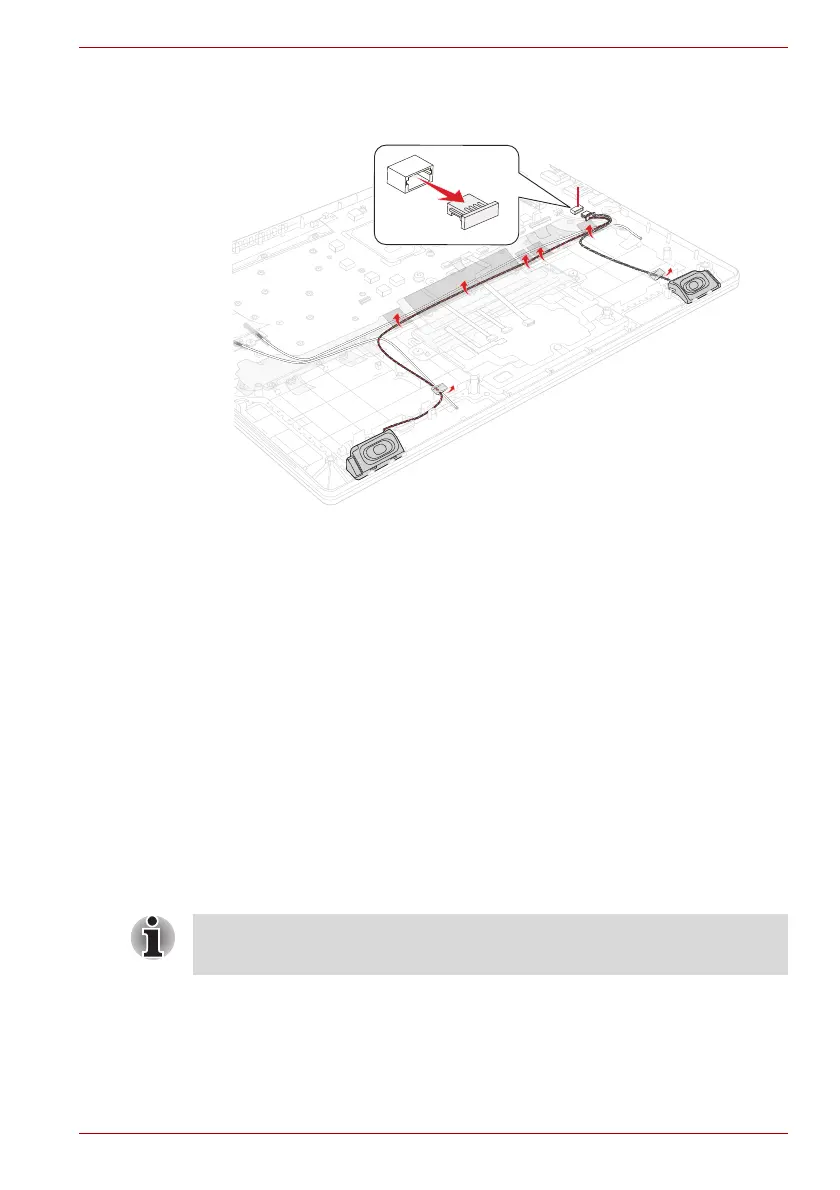

Figure 4-24 Removing the Speaker (1)
4.22.2 Installing the Speaker
To install the Speaker, follow the steps below.
1. Set the speakers to the slots of the Cover Assembly.
2. Arrange the Speaker harness under the guides and fix it with the new
INSU.
3. Connect the Speaker harness to the connector CN6290 on the system
board.
4.23 3G Wireless antennas
4.23.1 Removing the Wireless antennas
To remove the wireless antennas , follow the steps below.
1. Peel off the insulators securing the wireless antennas cables and
release the antennas cables.
CN6290
Do not reuse the removed wireless antennas. Be sure to use new wireless
antenna.
