dynabook PORTEGE X30L-J Series User Manual

Maintenance Manual (960-943) 1-2
Hardware Overview

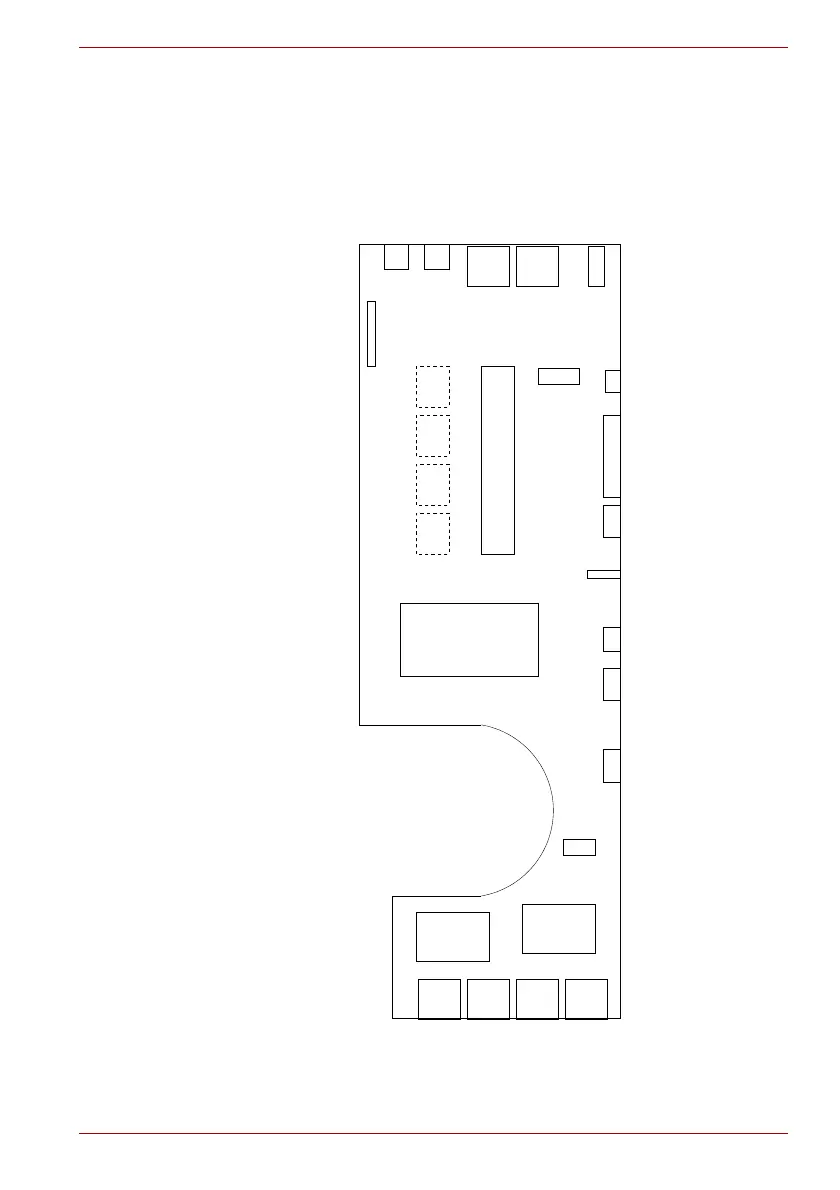

Figure 1-1 System unit configurations
CPU
SDRAM M EM
SO -DI M M M EM
CN5390
LCD I/F
Au dio Jack
Speaker I /F
SSD I /F
Finger F/I BKF/I DAP
Battery
J6320
CN6290CN9550 0423NC0159NC
CN8021
CN3270
BlacklightSmart Card
CN2170
FC RYSY*
USB-A Po r t 1 (S&C )
CN4850
LAN I/F
J4050
Micro SD Card I/F
IS2142
Nano SI M Card I/F
IS2621
CN4800
CN4821
U SB- C Port 1 U SB- C Port 2 HDMI I/F
CN5590 CN4860
U SB- A Port 2
WLAN
IC2631
CN2610
5G (M .2)
CN3380
FAN I /F
CN1900

dynabook PORTEGE X30L-J Series Specifications

General

RAM	Up to 32GB LPDDR4x
Storage	Up to 1TB PCIe SSD
Graphics	Intel Iris Xe Graphics
Processor	Intel Core i5-1135G7 or i7-1165G7
Display	13.3-inch Full HD (1920 x 1080)
Operating System	Windows 10 Pro
Ports	HDMI, microSD card slot, headphone/mic combo jack
Connectivity	Wi-Fi 6, Bluetooth 5.1
