Maintenance Manual (960-943) 2-27
Troubleshooting Procedures
To connect an HDMI-compatible display device, follow the steps as detailed
below:
1.Plug one end of the HDMI cable into the HDMI in port of the HDMI display
device.
2.Plug the other end of the HDMI cable into the HDMI out port on your
computer.
3.Turn the HDMI display device's power on.

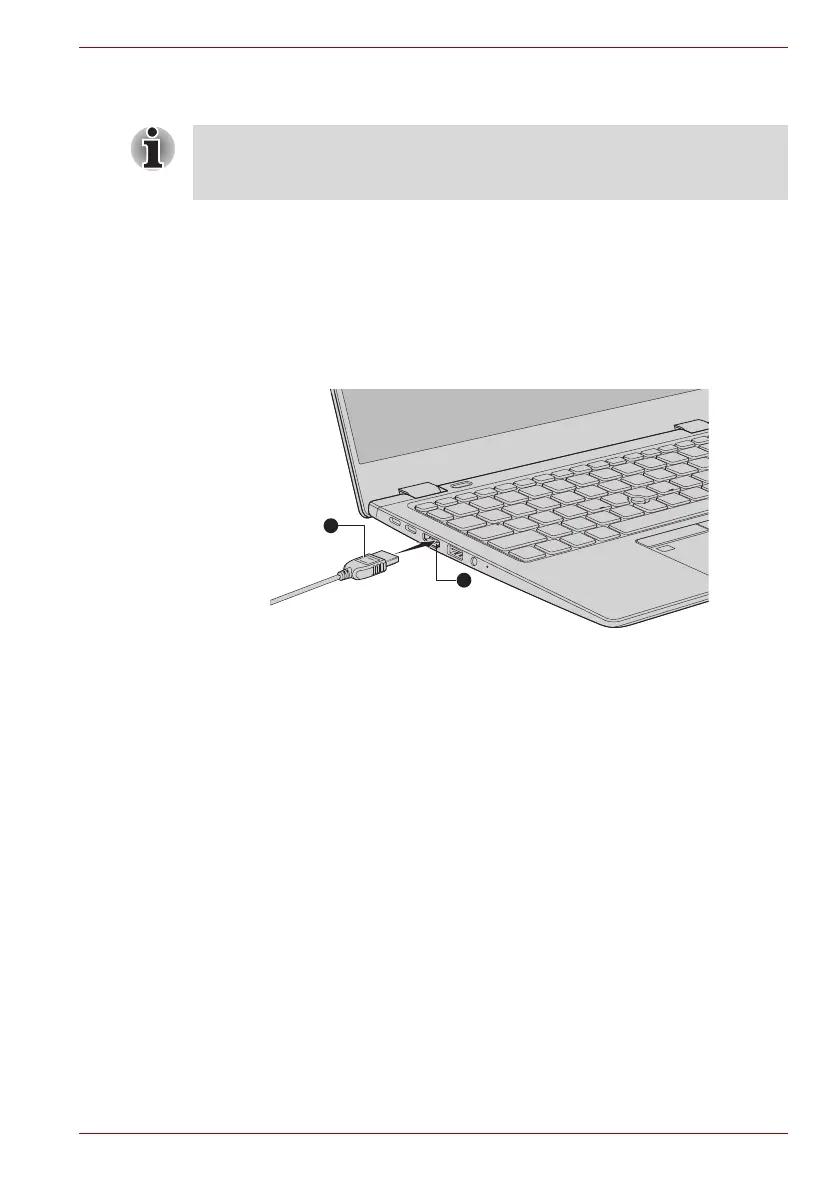

Figure 2-6 Connecting the HDMI out port
2.17.2 Procedure 2 Connector Check and Replacement Check
The connection of cables, boards and module may be defective.
Otherwise, they may be faulty. Disassemble the computer following the
steps described in Chapter 4 and perform the following checks:
Check 1
Make sure HDMI TV is firmly connected to the HDMI out port on
the system board. If the problem still occurs, perform Check 2.
Check 2
It checks whether there are any abnormalities in a setup of
HDMI TV, and returns to Procedure 1. In addition, an HDMI
setup of television should check "the instructions manual of
attachment on HDMI TV." If the problem still exists, perform
Check 3.
Check 3
HDMI cable may be damaged. Replace it with a new one. If the
problem still exists, perform Check 4.
As the port operation of all HDMI (High-Definition Multimedia Interface)
monitors have not been confirmed, some HDMI monitors may not function
properly.
1. HDMI out port 2. HDMI cable
To Next Page
