dynabook PORTEGE X30L-J Series User Manual

Maintenance Manual (960-943) 4-17
Replacement Procedures

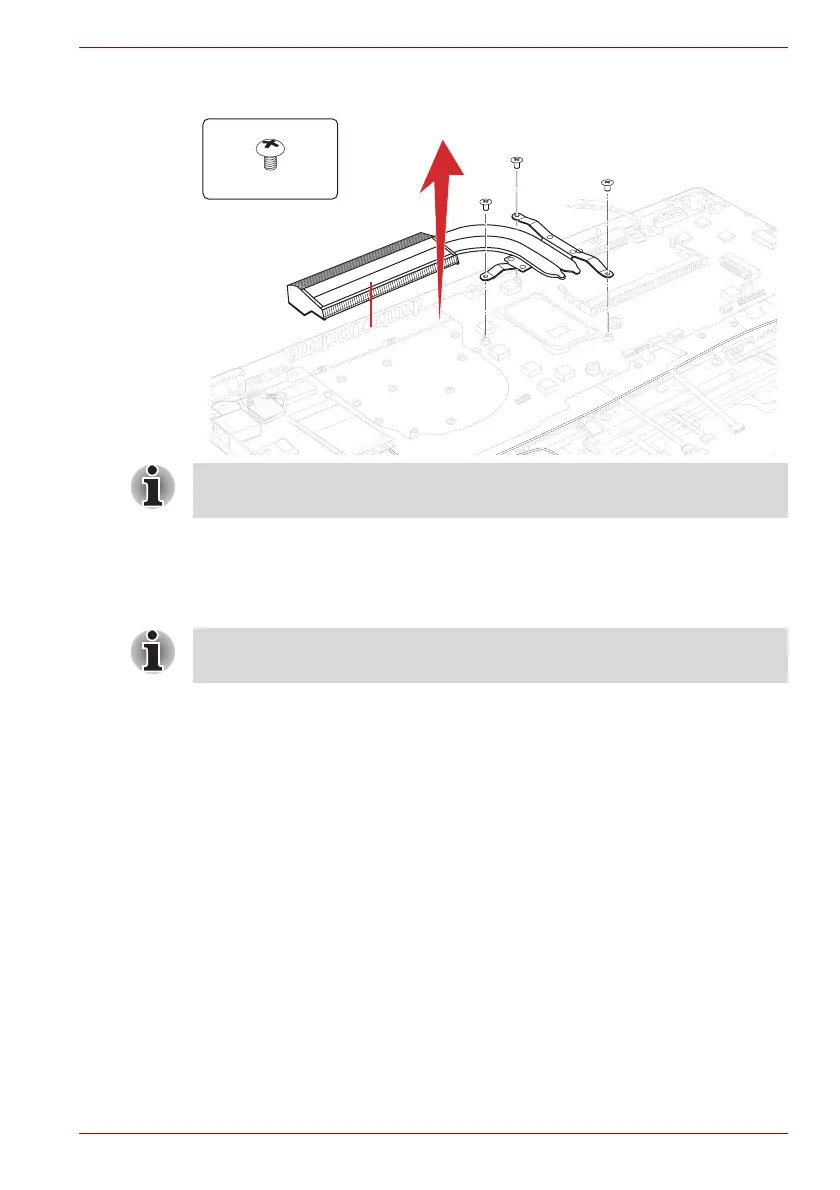

Figure 4-12 Removing the Fin
4.16.2 Installing the Fin
To install the Fin, follow the steps below.
1. Set the Fin in place and secure it with the screws.
4.17 Smart Card slot
4.17.1 Removing the Smart Card slot
To remove the Smart Card slot unit, follow the steps below.
1. Disconnect the Smart Card slot FFC from the connector CN2170 on
the system board.
2. Remove the following screw, and then slide and lift the Smart Card slot
unit shown in the following figure to remove the Smart Card slot.
B2X2.5CT
Fin
1
2
3
When removing the Fin, be sure to remove the screws in the reverse order
of the number marked on the Fin.
When installing the Fin, be sure to install the screws in the order of the
number marked on the Fin.
