Maintenance Manual (960-943) 4-28
Replacement Procedures

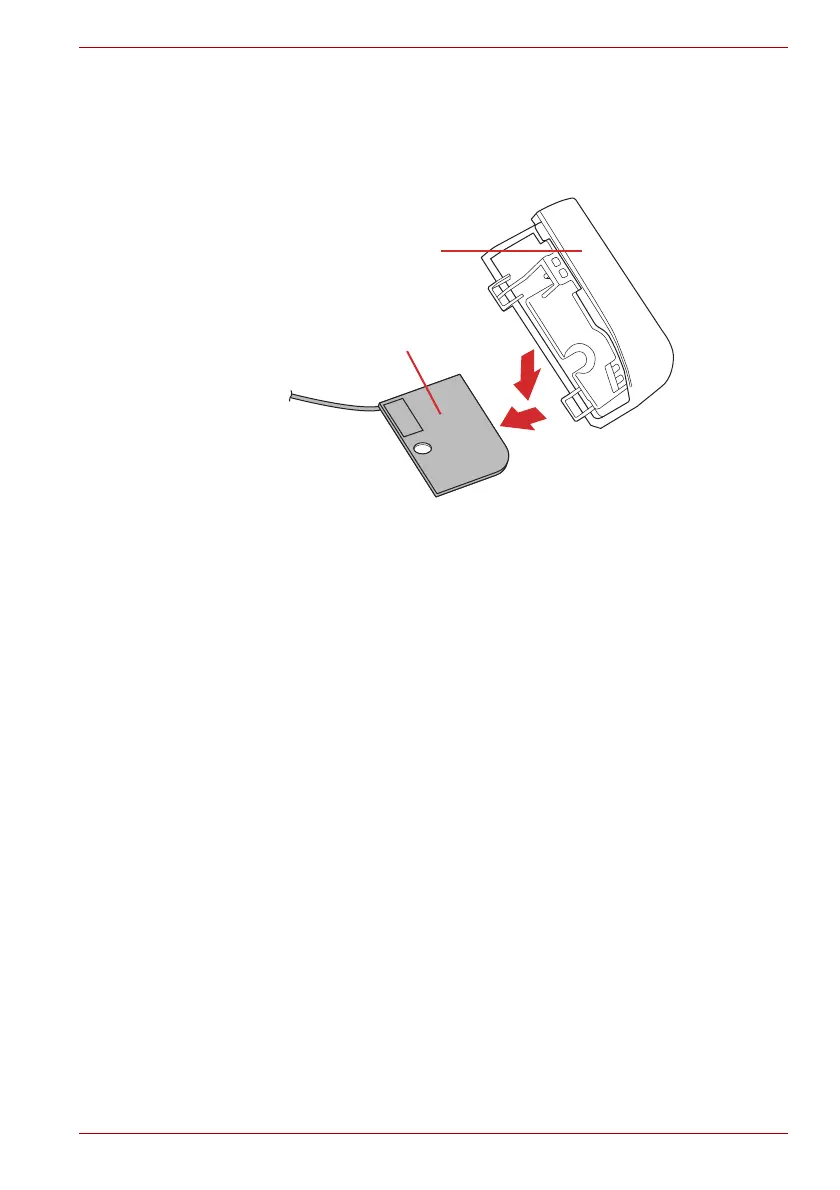

4. Peel off the W-LAN ANTENNA MAIN (white cable) from the CORNER
CAP L and W-LAN ANTENNA AUX (black cable) from the CORNER
CAP R.
Figure 4-22 Removing the W-LAN ANTENNA(2)
4.21.3 Installing the W-LAN ANTENNA
To install the W-LAN ANTENNA, follow the steps below.
1. Stick the W-LAN ANTENNA MAIN (white cable) to the CORNER CAP L
and WLAN ANTENNA AUX (black cable) to the CORNER CAP R.
2. Arrange the Wireless LAN antenna cables to the guides as below.
W-LAN ANTENNA MAIN
CORNER CAP L
