dynabook PORTEGE X30L-J Series User Manual

Maintenance Manual (960-943) 4-19
Replacement Procedures
4.17.2 Installing the Smart Card slot
To install the Smart Card slot, follow the steps below.
1. Connect the Smart Card slot FFC to the connector on the Smart Card
slot.
2. Set the Smart Card slot in place and secure it the with the screw.
3. Connect the Smart Card slot FFC to the connector CN2170 on the
system board.
4.18 3G module
4.18.1 Removing the 3G module
To remove the 3G module, follow the steps below.
1. Peel off the INSU LTE.
2. Disconnect the 3G ANTENNA cables from the connectors on the 3G
MODULE. (red tube from “MAIN”)

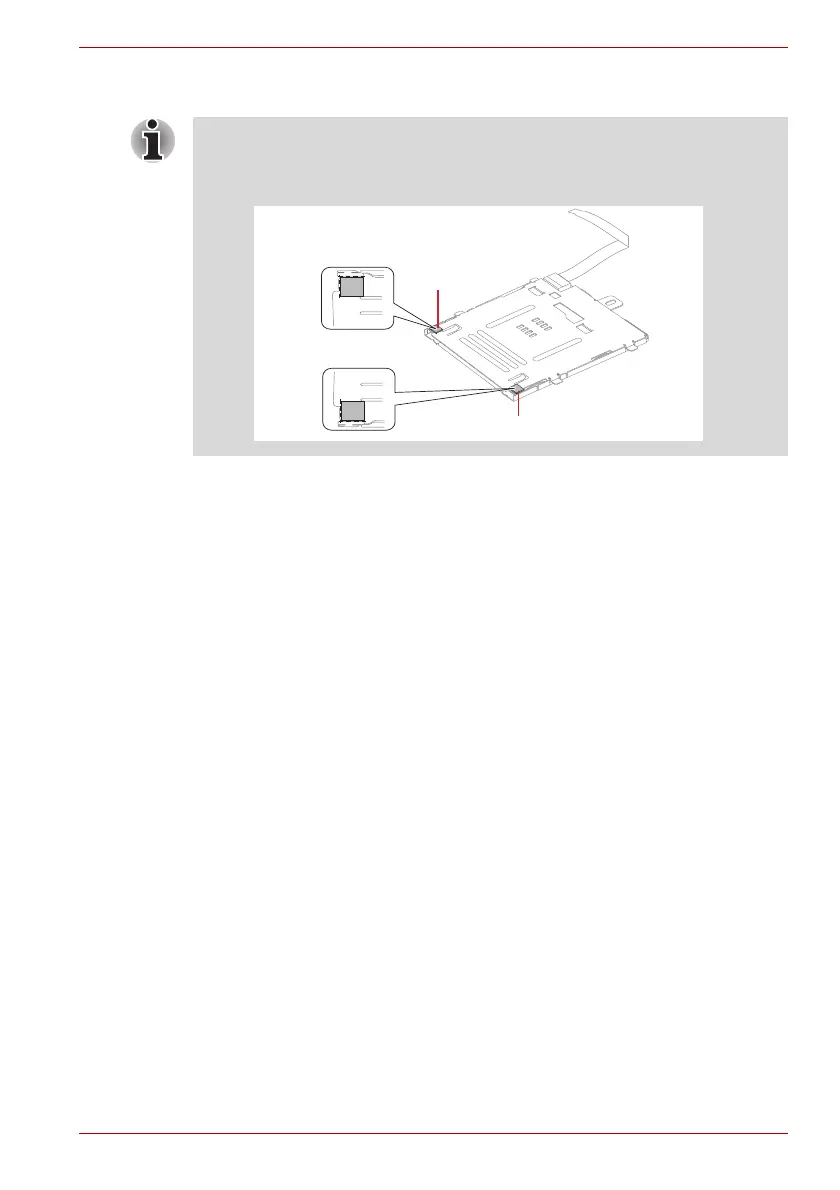

When replacing the Smart Card slot with a new one, stick two pieces of
SQUARE CHUSION on the Smart Card.
Square cushion
Square cushion

dynabook PORTEGE X30L-J Series Specifications

General

RAM	Up to 32GB LPDDR4x
Storage	Up to 1TB PCIe SSD
Graphics	Intel Iris Xe Graphics
Processor	Intel Core i5-1135G7 or i7-1165G7
Display	13.3-inch Full HD (1920 x 1080)
Operating System	Windows 10 Pro
Ports	HDMI, microSD card slot, headphone/mic combo jack
Connectivity	Wi-Fi 6, Bluetooth 5.1
