dynabook PORTEGE X30L-J Series User Manual

Maintenance Manual (960-943) 4-32
Replacement Procedures
4.24 Dual button unit/Click pad
4.24.1 Removing the dual button unit/Click pad
To remove the dual button unit and click pad, follow the steps below.
1. Disconnect the Click Pad FFC, Accupoint FPC from the connectors
on the Click Pad.

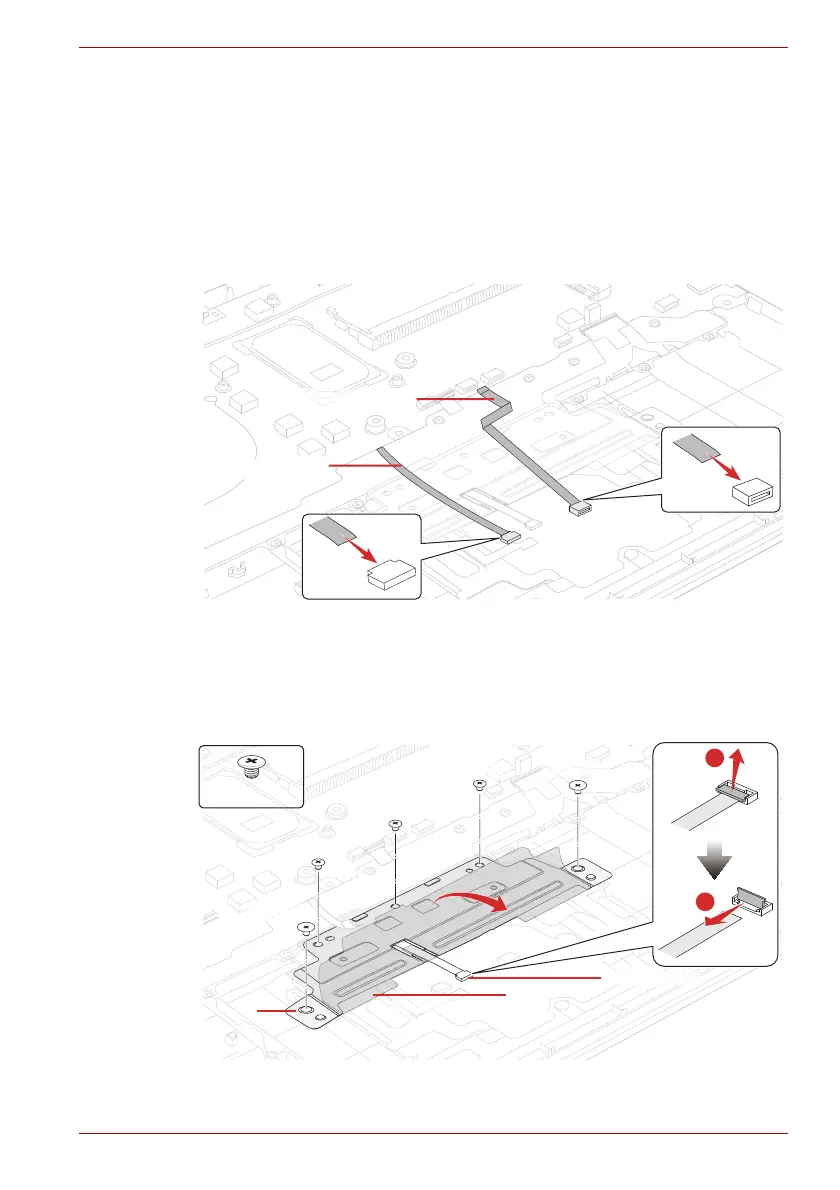

Figure 4-26 Removing the dual button unit/Click pad (1)
2. Peel off the DUAL BUTTON INSU, and disconnect the Dual button
FPC from the connector on the Click Pad.
3. Remove the following screws and then remove the click pad plat.
Figure 4-27 Removing the dual button unit/Click pad (2)
4. Remove the following screws and then release the Dual button FPC
from the hole on the Click pad plat.
Click Pad FFC
Accupoint FPC
1
2
Dual button FPC
Click Pad plat
S2x2.5CT
DUAL BUTTON INSU

dynabook PORTEGE X30L-J Series Specifications

General

RAM	Up to 32GB LPDDR4x
Storage	Up to 1TB PCIe SSD
Graphics	Intel Iris Xe Graphics
Processor	Intel Core i5-1135G7 or i7-1165G7
Display	13.3-inch Full HD (1920 x 1080)
Operating System	Windows 10 Pro
Ports	HDMI, microSD card slot, headphone/mic combo jack
Connectivity	Wi-Fi 6, Bluetooth 5.1
