dynabook PORTEGE X30L-J Series User Manual

Maintenance Manual (960-943) 4-41
Replacement Procedures
Figure 4-42 Removing the LCD unit (
5 )
4.26.2 Installing the LCD unit
To install the LCD unit, follow the steps below.
1. Connect the LCD harness to the connector on the LCD unit and secure
it with the pull tape and glass tape.
2. Peel off the separators on the bound & detach tapes on the LCD cover.
1
2
1
Open
Lock

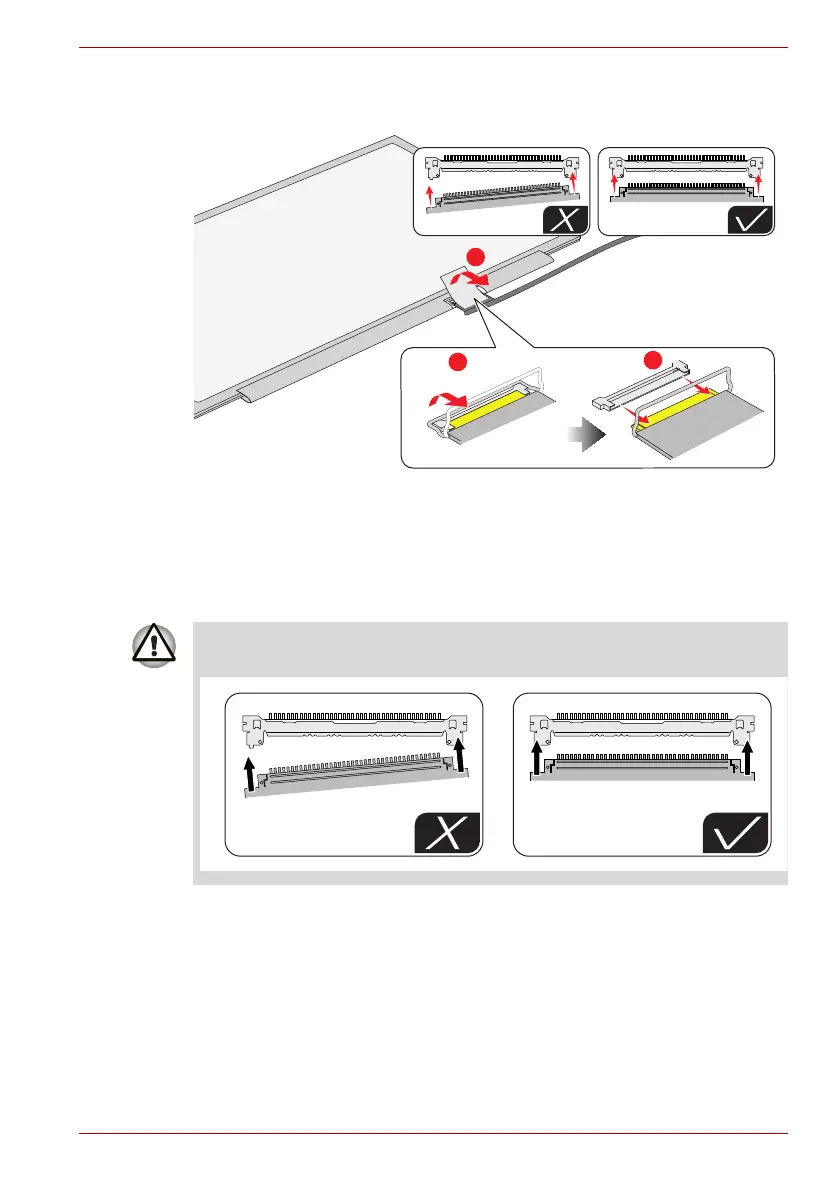

When connect the LCD harness, make sure to connect the right and left
side at the same time as shown in the figure below.

dynabook PORTEGE X30L-J Series Specifications

General

RAM	Up to 32GB LPDDR4x
Storage	Up to 1TB PCIe SSD
Graphics	Intel Iris Xe Graphics
Processor	Intel Core i5-1135G7 or i7-1165G7
Display	13.3-inch Full HD (1920 x 1080)
Operating System	Windows 10 Pro
Ports	HDMI, microSD card slot, headphone/mic combo jack
Connectivity	Wi-Fi 6, Bluetooth 5.1
