dynabook PORTEGE X30L-J Series - Figure 4-13 Removing the Smart Card Slot (1); Figure 4-14 Removing the Smart Card Slot (2)

Maintenance Manual (960-943) 4-18
Replacement Procedures

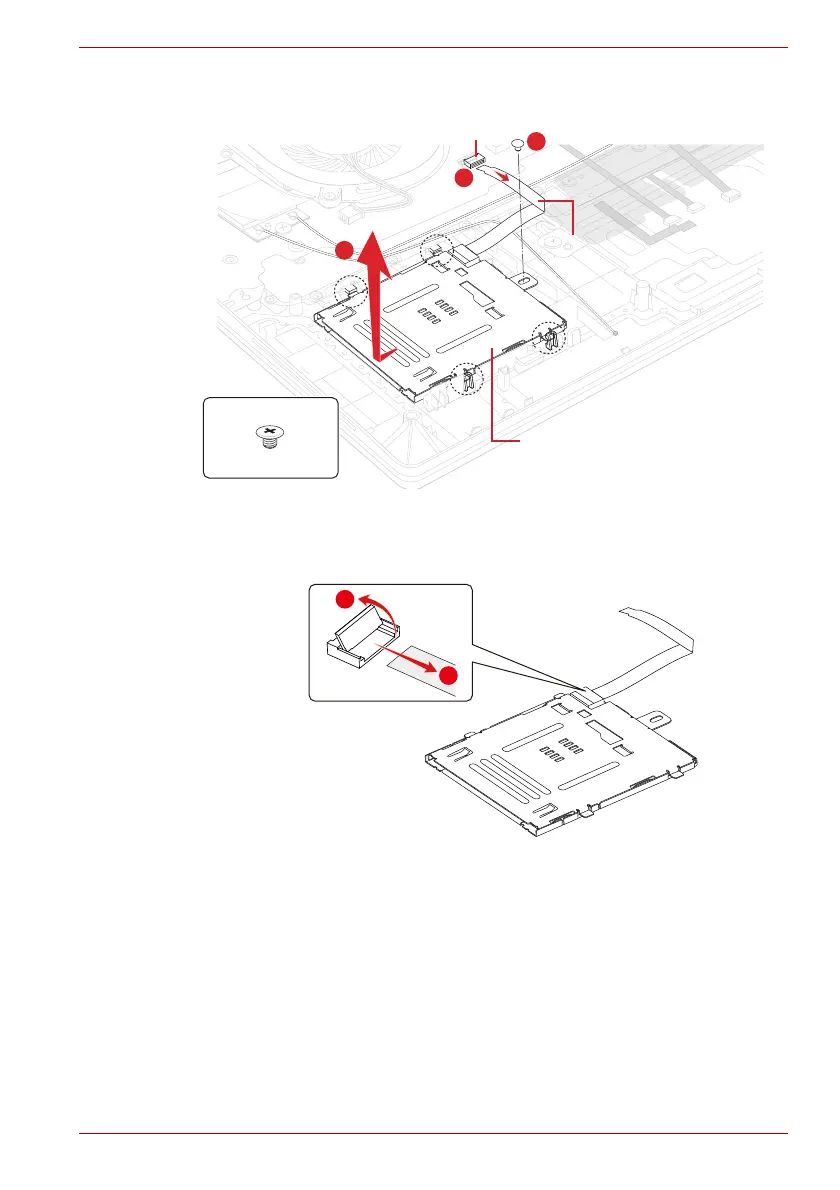

Figure 4-13 Removing the Smart Card slot (1)
3. Disconnect the Smart Card slot FFC from the connector on the Smart
Card slot.
Figure 4-14 Removing the Smart Card slot (2)
Smart Card slot
CN2170
Smart Card slot FFC
2
3
1
S2x2BT
2
1
