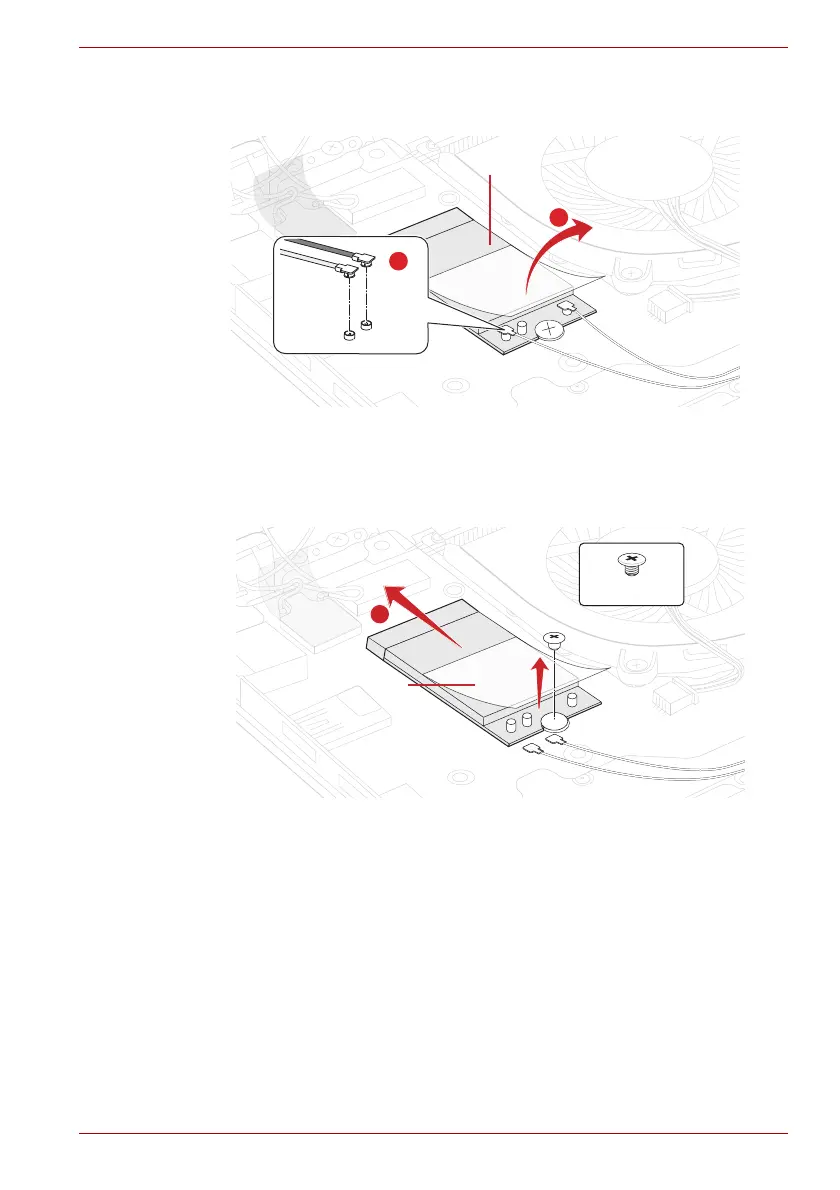

Figure 4-15 Removing the 3G module (1)
3. Remove the following screw and disconnect the 3G MODULE from the
connector CN2610 on the System Board.
Figure 4-16 Removing the 3G module (2)
4.18.2 Installing the 3G module
To install the 3G module, follow the steps below.
1. Insert the 3G MODULE to the connector CN2610 on the system board.
Secure the 3G MODULE with the screw.
2. Connect the 3G ANTENNA cables to the connectors on the 3G
MODULE. (red tube to “MAIN”)
3. Stick a new INSU LTE in place.
2
1
INSU LTE
3G MODULE
1
S2x2.3BT
