dynabook PORTEGE X30L-J Series - Speaker; Figure 4-23 Installing the W-LAN ANTENNA(1)

Maintenance Manual (960-943) 4-29
Replacement Procedures

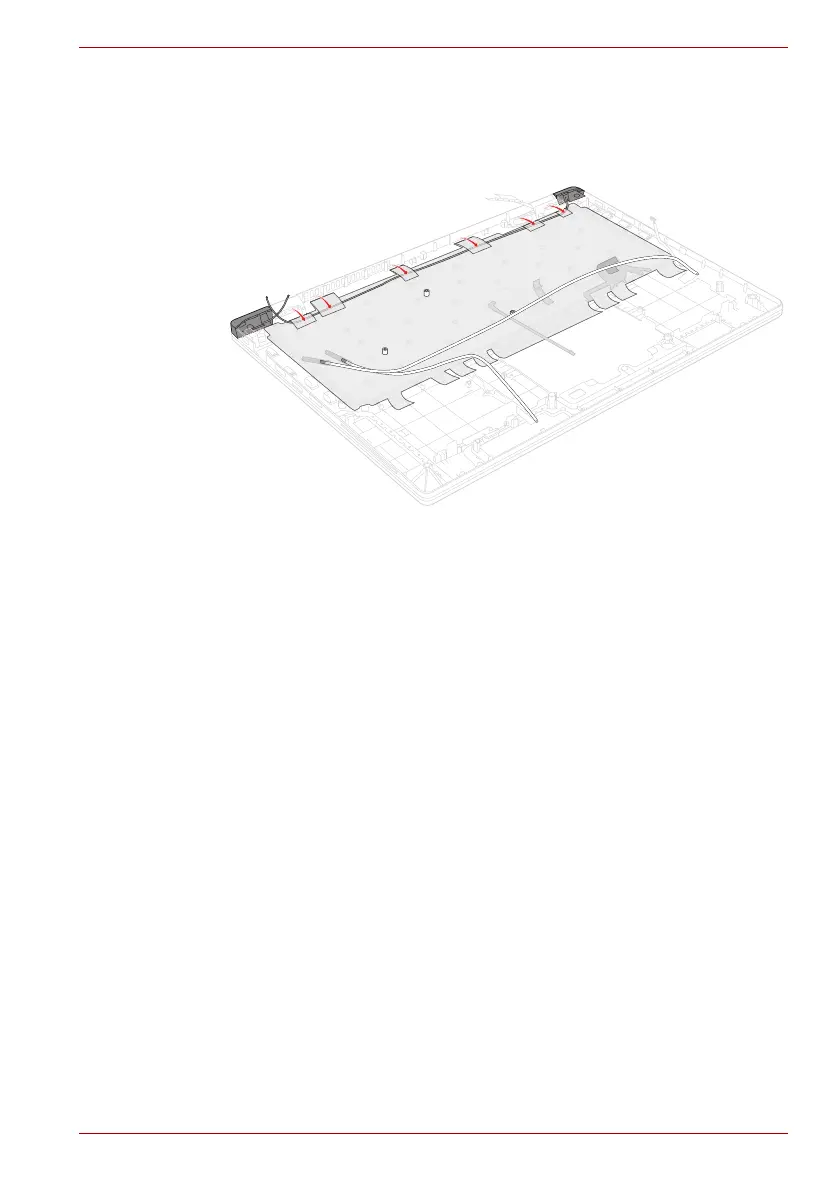

Figure 4-23 Installing the W-LAN ANTENNA(1)
3. Set the CORNER CAP L and CORNERCAP R to the COVER ASSY
and secure them with the screws.
4.22 Speaker
4.22.1 Removing the Speaker
To remove the Speaker, follow the steps below.
1. Disconnect the Speaker harness from the connector CN6290 on the
system board.
2. Open the INSU and stick tape. Release the Speaker harness from the
guides.
