dynabook PORTEGE X30L-J Series - Figure 4-49 Removing the Camera Module (3)

Maintenance Manual (960-943) 4-45
Replacement Procedures

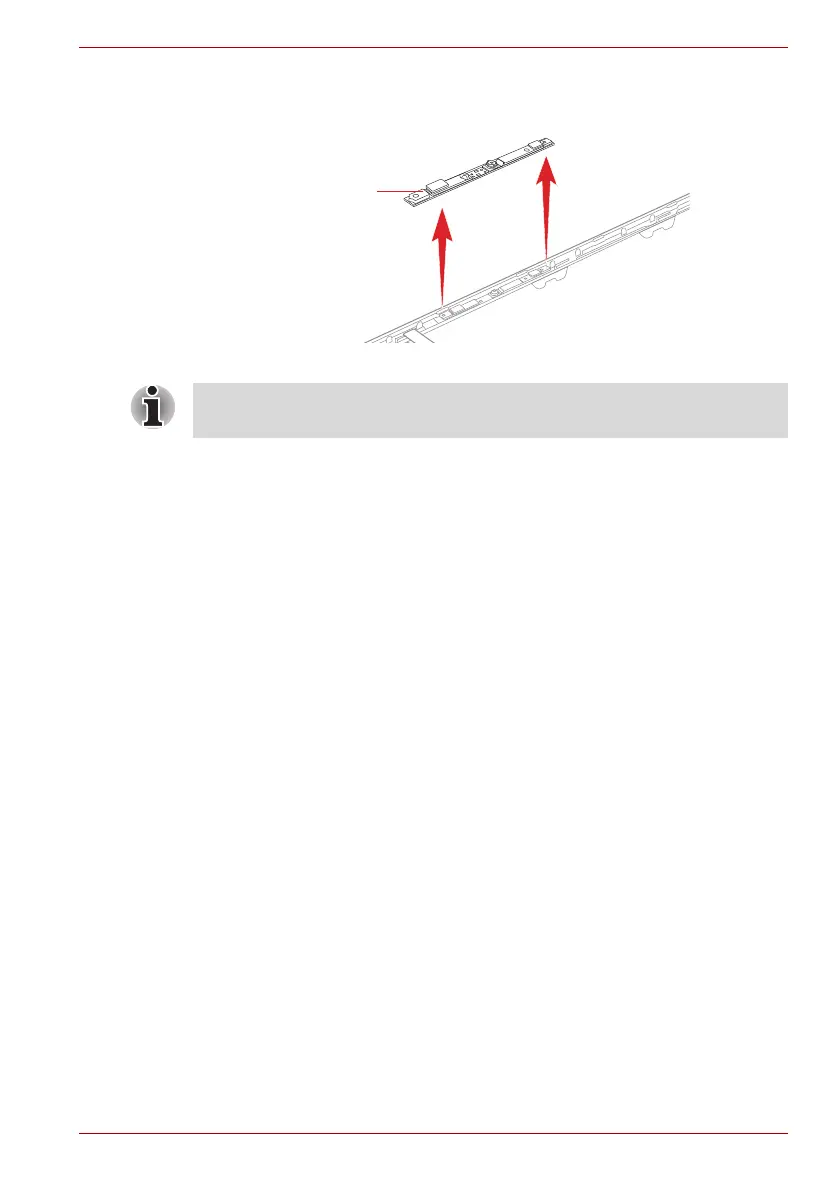

Figure 4-49 Removing the camera module (3)
4.27.2 Installing the Camera module
To install the camera module, follow the steps below.
1. Peel off a protection sheet from a new camera module.
2. Stick the new camera module to the LCD cover.
3. Connect the HD web CAM FPC/IR CAM FPC to the connector on the
camera module and stick the HD web CAM FPC/IR CAM FPC to the
LCD cover in place.
4. Stick two pieces of AL TAPE and GASKET on the new camera
module.
Camera module
Do not reuse the removed camera module. Be sure to use new camera
module.
