Morpheus Operation Manual94
PRESET PROGRAMMING
NOTE-ON CTRL #0
Vel Attack +064
NOTE-ON MODULATION CONTROL
Modulation sources must be connected to a destination in order to

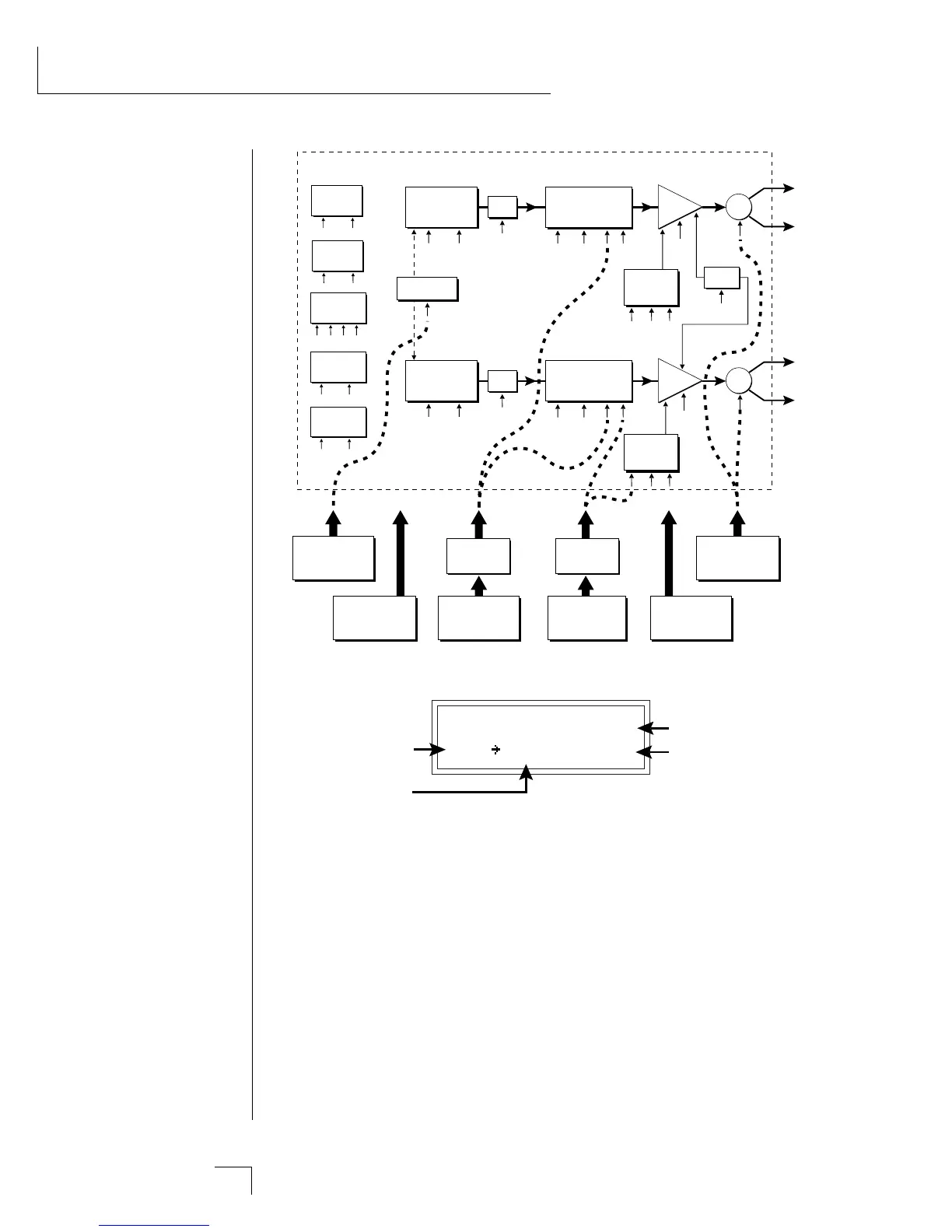

have any effect. The diagram and the LCD screen above show how
modulation sources are connected to destinations. The modulation
sources can control any of the destinations indicated by the small
arrows.
â–¼ Note-On modulation sources are only measured once at Note-On
time, hence the name. Even a controller like the Pitch Wheel is only
measured once (at note-on time) when routed as a Note-On control.
The Realtime Modulation screen (on the next page), allows continu-
ous variation.
The possible modulation routings are completely flexible as shown in
the diagram above. Multiple sources can control the same destination,
or a single source can control multiple destinations.
Source
Patch Number
Modulation
Amount
Destination
Note-On
Modulation Sources
Key Number, Key Velocity
Initial Pitch Wheel Amount
Initial Controller A Amount
Initial Controller B Amount
Initial Controller C Amount
Initial Controller D Amount
Initial Mono Pressure Amount
Initial FR Func. Gen. Amount
Destinations
Off
Pitch, Primary Pitch
Secondary Pitch
Volume, Primary Volume
Secondary Volume
Attack, Primary Attack
Secondary Attack
Decay, Primary Decay
Secondary Decay
Release, Primary Release
Secondary Release
Crossfade
LFO 1 Amount, LFO 1 Rate
LFO 2 Amount, LFO 2 Rate
Auxiliary Envelope Amount
Auxiliary Envelope Attack
Auxiliary Envelope Decay
Auxiliary Envelope Release
Function Gen 1 Amount
Function Gen 2 Amount
Portamento Rate
Primary Portamento Rate
Secondary Portamento Rate
Filter Morph
Primary Filter Morph
Secondary Filter Morph
Pan, Primary Pan
Secondary Pan
Sample Start
Primary Sample Start
Secondary Sample Start
Tone, Primary Tone
Secondary Tone
Filter Level, Primary Filter Level
Secondary Filter Level
Filter Frequency Track
Primary Filter Frequency Track
Secondary Filter Freq. Track
Filter Transform 2
Primary Filter Transform 2
Secondary Filter Transform 2
LFO 1
Amount Rate
LFO 2
Amount Rate
R
L
Volume
Pan
Primary
Instrument
Pitch
Sample
Start
Tone
VELOCITY
VELOCITY
CURVE
KEY NUMBER
KEYBOARD
CENTER
Note-On Modulation Sources
X-Fade
Atk Dec Rel
Volume
AHDSR
R
L
Volume
Pan
Secondary
Instrument
Pitch
Sample
Start
Tone
Atk Dec Rel
Volume
AHDSR
Portamento
Rate
DCA
DCA
Modulation Destinations
Auxiliary
DAHDSR
AmtAtk Dec Rel
CONTROLLER
A-B-C-D
(INITIAL SETTING)
PRESSURE
(INITIAL SETTING)
FR FUNCTION
GENERATOR
(INITIAL SETTING)
PITCH WHEEL
(INITIAL SETTING)
Function
Generator 1
AmountCond
Function
Generator 2
AmountCond
Z-Plane
Filter
T2TrkMorphAttn.
Z-Plane
Filter
T2TrkMorphAttn.
