E-Mu MORPHEUS User Manual

Chapter 5: Effects Section 55
• Ring Modulator
A Ring Modulator is a device which takes two signals and multiplies
them together into one resultant signal containing only the sum and
difference frequencies of the two input waves. The original frequen-
cies are not output! However, every harmonic of each signal multiplies
every other, according to its amplitude. As a result, ring modulators
tend to generate a lot of non-harmonic frequencies which can sound
very bell-like or out of tune.

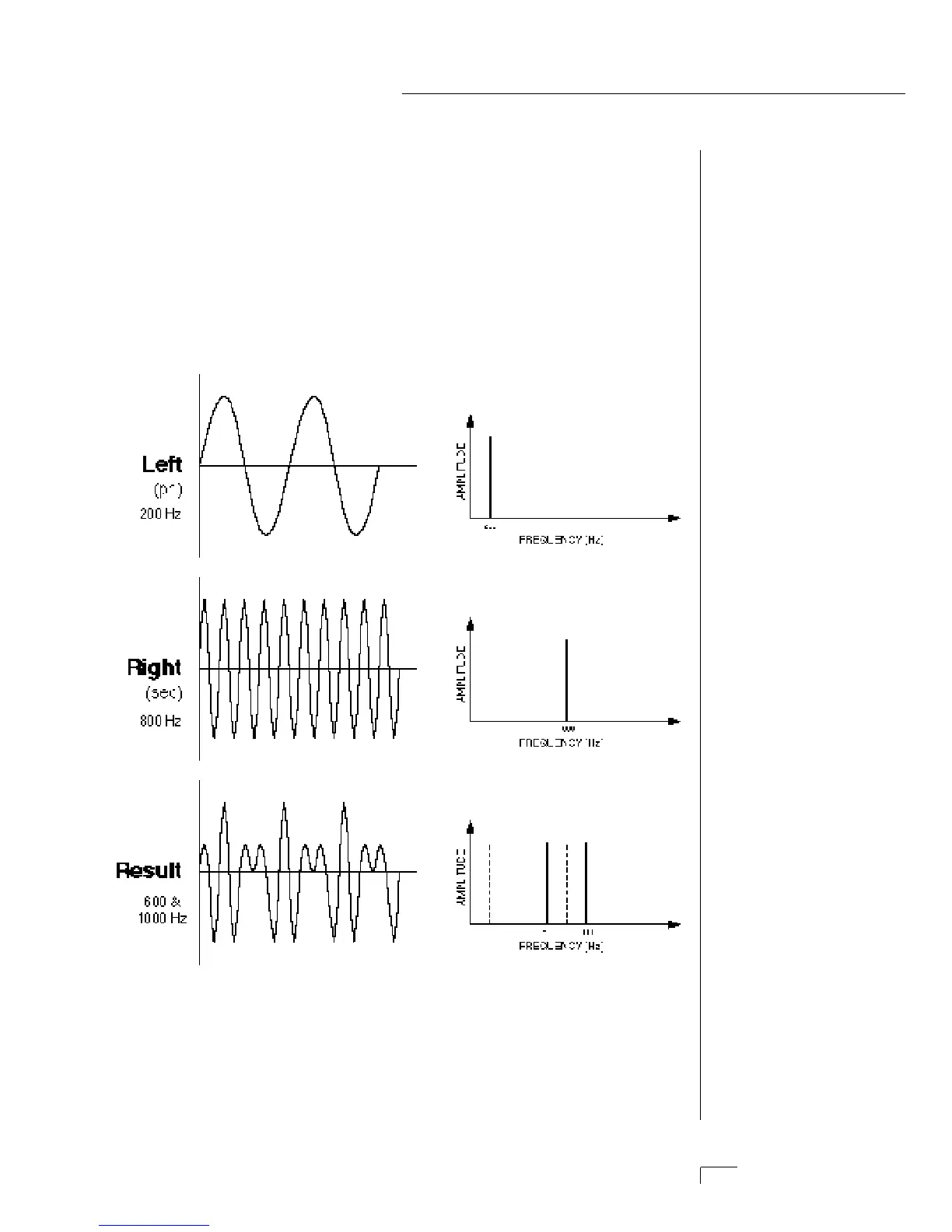

This diagram shows the result of Ring Modulating two sine waves with frequencies of
200 Hz and 800 Hz. Only the Sum and Difference frequencies of 1000 Hz and 600
Hz will result.
EFFECTS SECTION
