Morpheus Operation Manual40
EFFECTS OUTPUT ROUTING

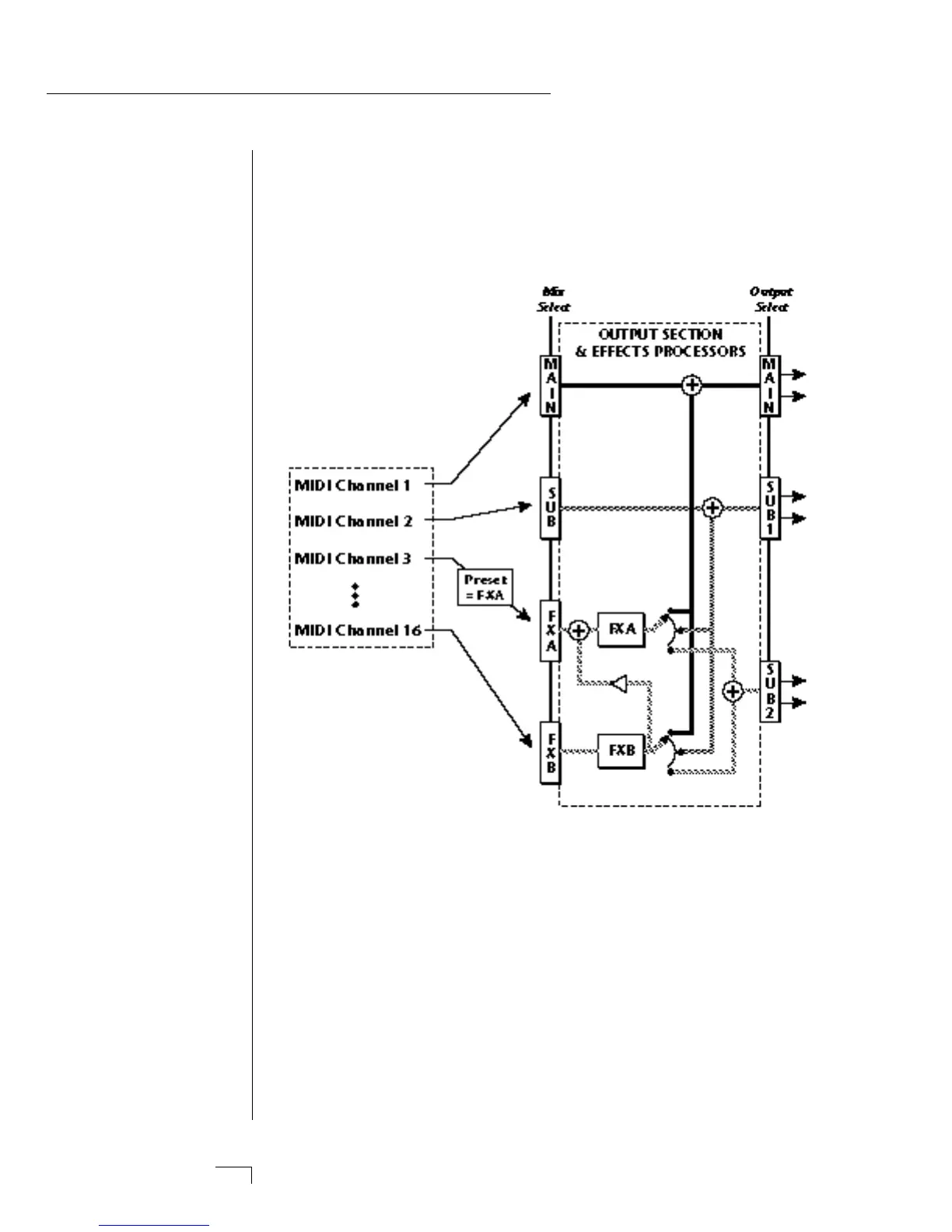

The diagram below shows how the effects section is integrated into the
output jack routing scheme. The mix bus can be selected either by the
preset or by MIDI channel. When “Preset” is selected, the MIX SELECT
programmed in the preset is used.
EFFECTS SECTION
MORPHEUS EFFECT BUS ARCHITECTURE
The two stereo effect processors on Morpheus are designated as A and
B effects. “A” effects contain Reverb and other effects. The “B” effects
do not include Reverbs, but include a host of other great effects which
are listed on page 53.
Each effect has its own set of control parameters which are appropriate
to that particular effect. For both the A and B effects there is an
amount parameter which determines the relative mix of the processed
and unprocessed signals (wet/dry mix). The output of the B effect can
also be routed back through processor A. In addition, the stereo
submix outputs (Sub 1) can be used to externally process selected
presets.
