Morpheus Operation Manual98
PRESET PROGRAMMING
First, we would go to the Master menu, MIDI Controller Assign and
define the 4 MIDI controllers that we wish to use. Assign each control-
ler number to one of the letters
A-B-C-D.
01 - Modulation Wheel A
02 - Breath Controller B
04 - Foot Pedal C
06 - Data Entry D
To complete the connections for a particular preset, go to the Edit
menu, Realtime Modulation Control, and route the MIDI A, B, C, D to
the desired destinations. These could be patched to any four destina-
tions or even to the same destination. The MIDI Controller Amount
menu, (in the Preset menu) allows you to scale the amounts of each of

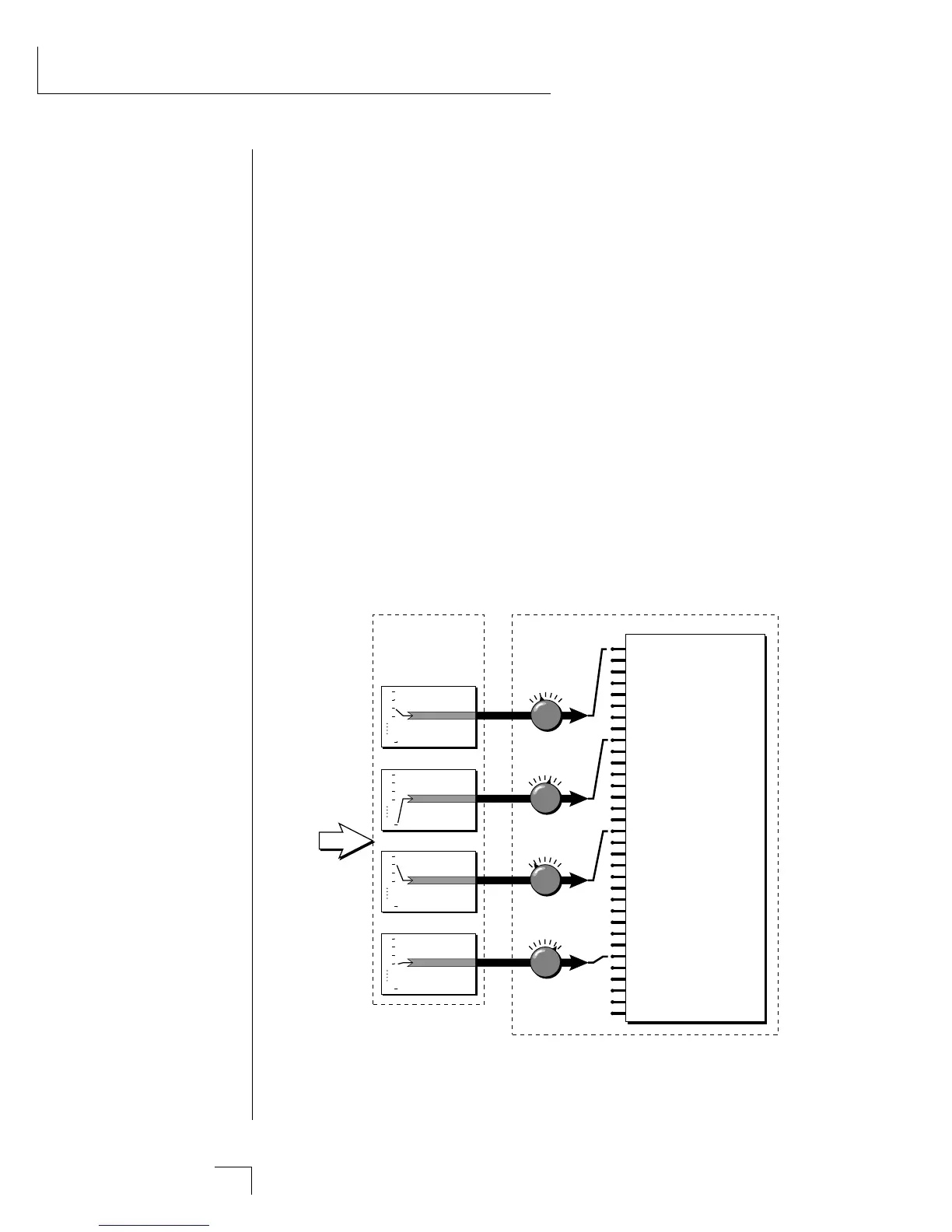

the controllers by a positive or negative value. The signal flow is
shown in the diagram below.
The MIDI controllers A-B-C-D must have both a source (0-31), and a control
destination assigned.
0
1
2
3
31
MIDI
Controller
C
Control Destinations
+-
Master
Menu
Edit
Menu
A
B
C
D
0
1
2
3
31
MIDI
Controller
A
0
1
2
3
31
MIDI
Controller
B
0
1
2
3
31
MIDI
Controller
D
MIDI
Amount
+-
+-
+-
Pitch
Primary Pitch only
Secondary Pitch only
Volume
Primary Volume only
Secondary Volume only
Attack
Primary Attack only
Secondary Attack only
Decay
Primary Decay only
Secondary Decay only
Release
Primary Release only
Secondary Release only
Crossfade
LFO 1 Rate
LFO 1 Amount
LFO 2 Rate
LFO 2 Amount
Auxiliary Envelope Amount
Auxiliary Envelope Attack
Auxiliary Envelope Decay
Auxiliary Envelope Release
Portamento Rate
Primary Portamento Rate
Secondary Portamento Rate
Filter Morph
Primary Filter Morph
Secondary Filter Morph
Pan
Primary Pan
Secondary Pan
Standard MIDI
Controller Numbers
1 Modulation Wheel
2 Breath Controller
3 Pressure (Rev 1 DX7)
4 Foot Pedal
5 Portamento Time
6 Data Entry
7 Volume
8 Balance
9 Undefined
10 Pan
