Morpheus Operation Manual76
PRESET PROGRAMMING
FUNCTION GENERATOR
The Function Generator is another kind of modulation source which is
much more programmable than an envelope generator or an LFO
although it can function as either. The function generator can be used
when you want the type of complex control that a normal AHDSR

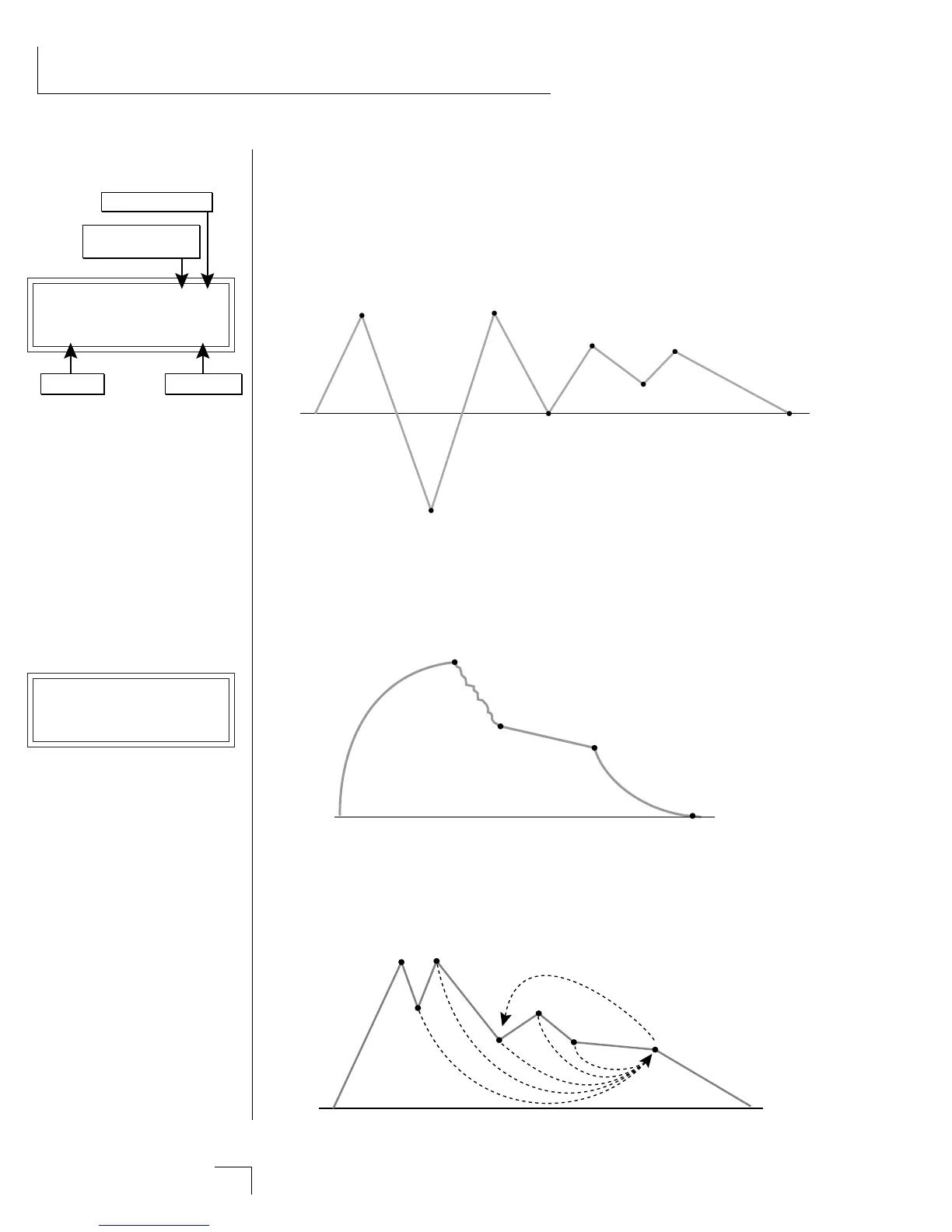

envelope cannot handle. Refer to the diagram below.
The function generator can have up to eight segments, each with a
Level and a Time parameter. The level parameter can be either positive
or negative. Each segment of the function generator can also have a
different Shape. There are 63 different shapes to choose from, many of
which have unusual shapes or are random in nature.
The function generator also has the ability to jump from one segment
to another based on certain programmable conditions. For example,
the function generator could be programmed to jump back to segment
5 if the key is held, but jump to segment 8 whenever the key is
released.
1
23
6
5
4
7
8
Jump if
Note On
Jump if
Note Off
L1
T1
L2
L3
L4
L5
L6
L7
L8
T2 T3
T4
T5
T6
T7
T8
Chaos
Linear
E
x
p
o
n
e
n
t
i
a
l
E
x
p
+
1
FUNC GEN F1S1
Level +127
FUNC GEN F1S1
Shape Linear
Segment Number
Function Generator
1 or 2
Value/ShapeParameter
••• The function generator
shapes are diagrammed in
the Reference Section of this
manual.
••• Routing the Function
Generator to control Pitch
makes it easy to hear what
you are doing.
