Receiving and Inspection
2-2 MVX9000 User Manual
Overview of the
MVX9000 Drive
Receiving and Inspection
This MVX9000 AC drive has gone through quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:
•
Check to make sure that the package includes an AC drive and User Manual.
•
Inspect the unit to insure it was not damaged during shipment.
•
Make sure that the part number indicated on the nameplate corresponds with
the part number of your order.

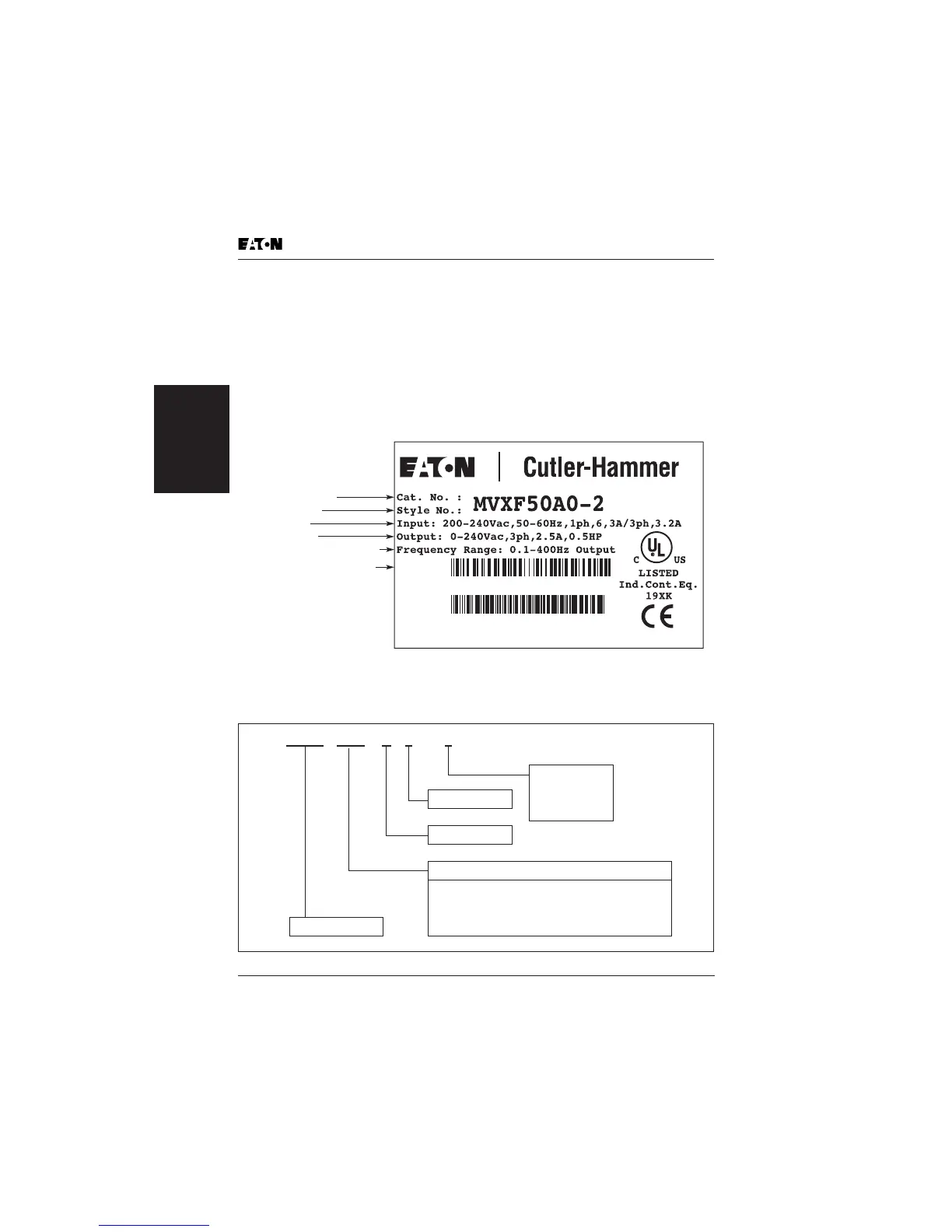

Nameplate Information
Figure 2-1: Example of 1/2 hp 230V AC drive
Catalog Number
Table 2-1: MVX9000 Catalog Numbering System
MADE IN XXXXXXX
10782116036223
F50A02T2410002
Catalog Number
Style Number
Input Spec.
Output Spec.
Output Frequency Range
Serial Number Bar Code
M V X F 5 0 A0 -2
1 = 115V AC
2 = 240V AC
4 = 480V AC
5 = 575V AC
Enclosure
Version Type
Motor Horsepower
F25 = 1/4 hp (0.2 kW)
F50 = 1/2 hp (0.4 kW)
001 = 1 hp (0.7 kW)
002 = 2 hp (1.5 kW)
003 = 3 hp (2.2 kW)
005 = 5 hp (3.7 kW)
007 = 7-1/2 hp (5.5 kW)
010 = 10 hp (7.5 kW)
Model Number
