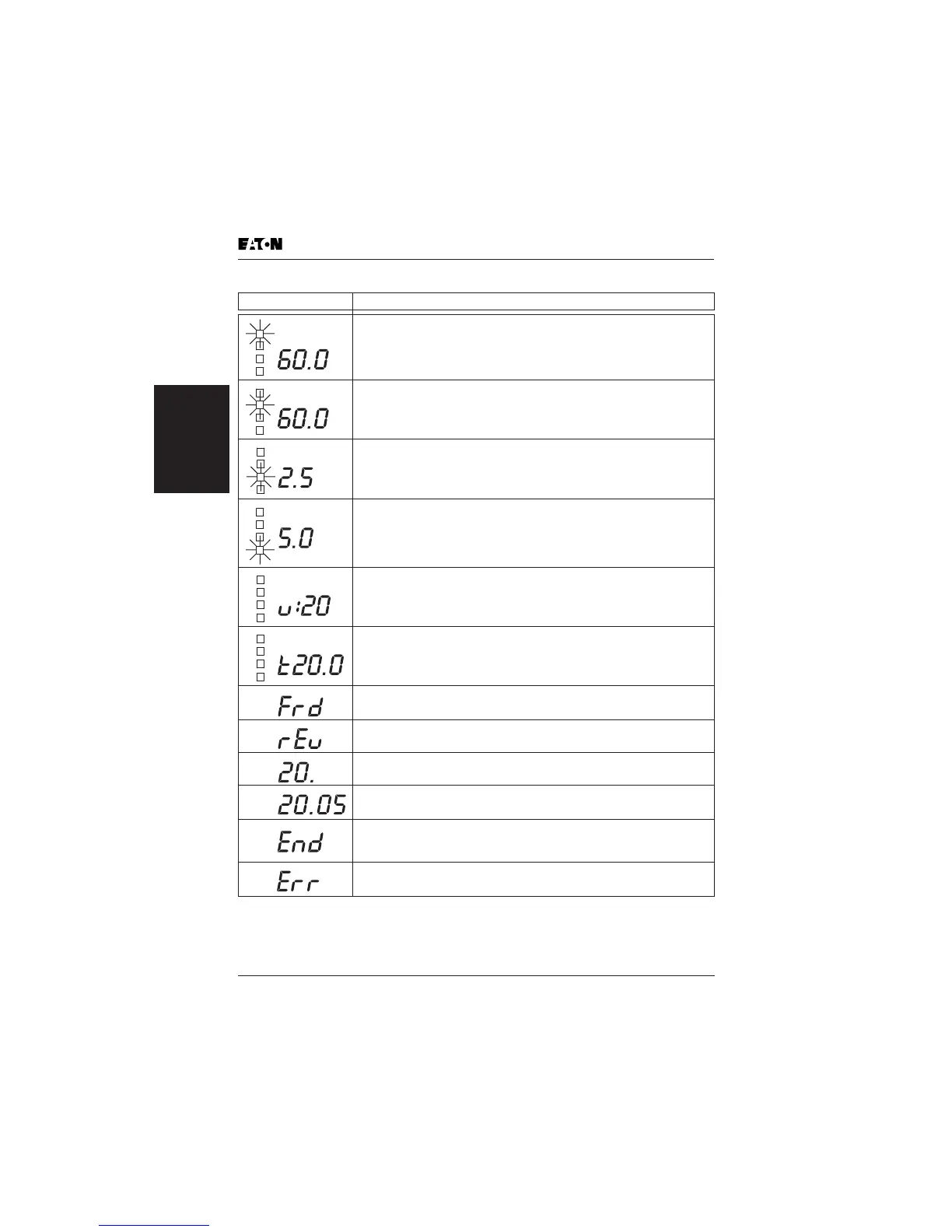

Table 2-3: Explanation of Display Messages
Displayed Message Descriptions
The AC drive Input Frequency Reference.
The Actual Operation Frequency at the output terminals T1, T2
and T3.
The output current present at the output terminals T1, T2 and T3.
The value of the user defined units.
The output voltage present at the output terminals T1, T2 and T3.
The temperature of the unit.
The AC drive forward run status.
The AC drive reverse run status.
Parameter group selection.
The specific parameter selection.
“End” displays for approximately 1 second if input has been
accepted. After a parameter value has been set, the new value is
automatically stored in memory.
“Err” displays, if the input is invalid.
F
H
A
U
