Group 30 — Inputs
5-16 MVX9000 User Manual
Descriptions of
Parameter Settings
Explanations: Digital Input Terminal
Settings 01, 02
When an External Fault input signal is received, the AC drive output will turn off,
the drive will display “E.F” on digital keypad, and the motor will coast to a stop.
Normal operation will resume after the External Fault is cleared and the AC drive
is reset.

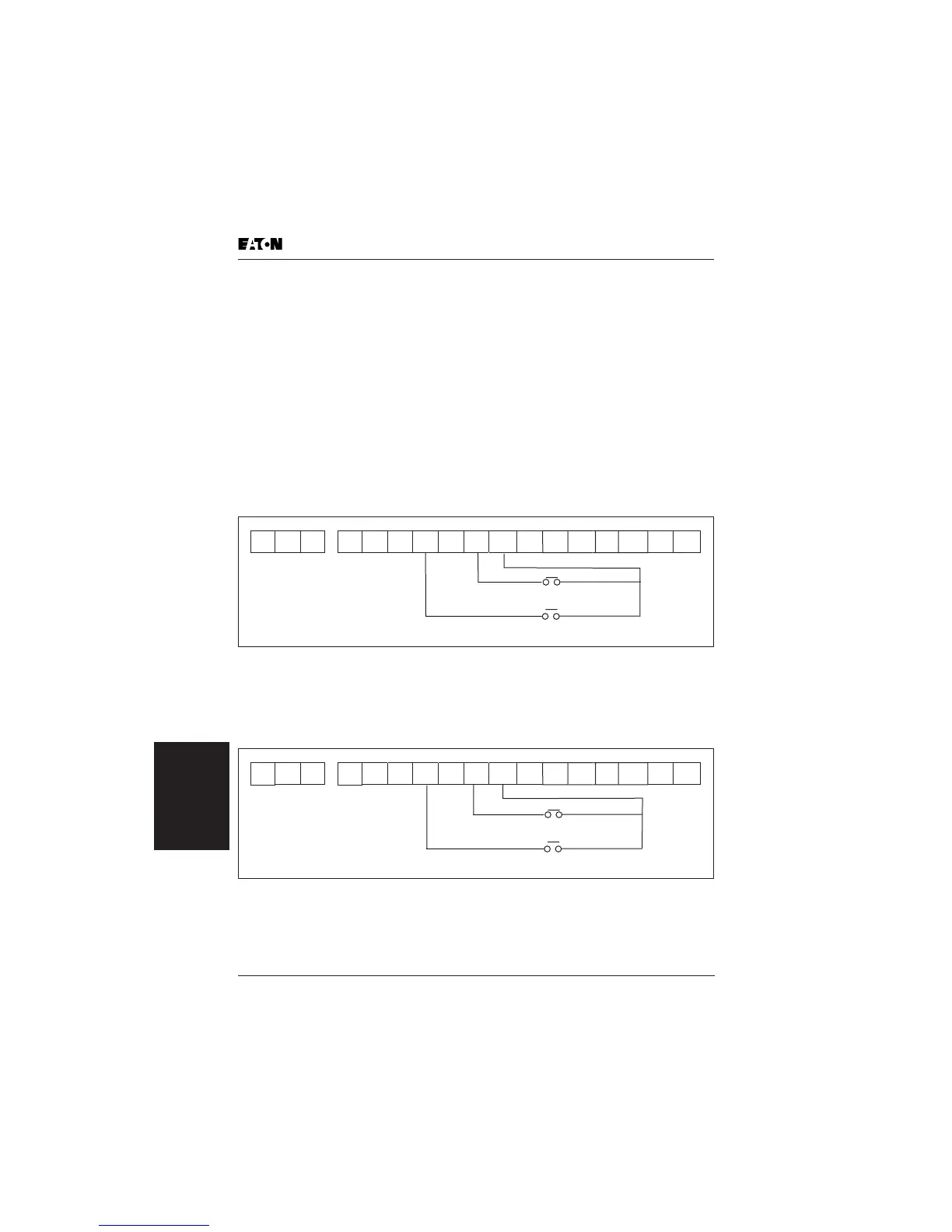

Figure 5-12: Digital Input Terminal Settings 01, 02
Settings 03, 04
The External Reset has the same function as the Reset key on the Digital keypad.
It is used to reset the drive after a fault.
Figure 5-13: Digital Input Terminal Settings 03, 04
30.14
Digital Input Terminal
(DI5)
Range: See Parameter 30.12 Default: 07
30.15
Digital Input Terminal
(DI6)
Range: See Parameter 30.12 Default: 03
02:External Fault (NC)
01:External Fault (NO)
