OPERATION
CAUTION:
• Always use caution when moving parts within the control cabinet. Avoid pulling or snagging wires.
• Be mindful of live electrical components when test ring the appliance, use care and good practices. It is
recommended that the cabinet be closed during normal operation.
PREVENTATIVE MAINTENANCE
BURNER ASSEMBLY CLEANING (CONTINUED)
The induction blower is secured to the top of burner assembly. Dust and fat solids will collect on the blades and
should be inspected and cleaned at this time.
14. Begin by recording or marking the setting on the restriction plate with a permanent marker.

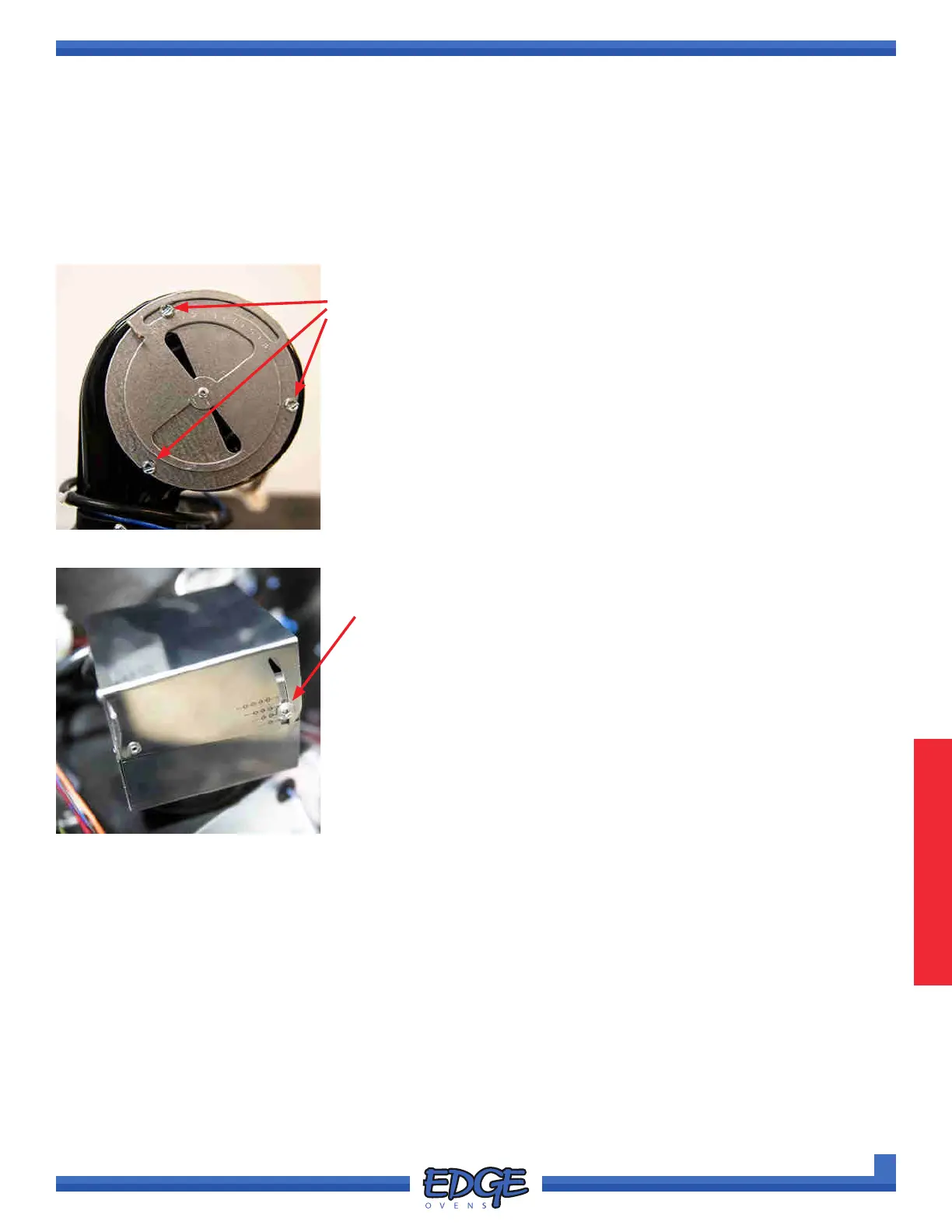

FIGURE 3-79
TYPE 1 INDUCTION BLOWER
15. Remove the three (3) 1/4” sheet metal screws and set the restriction
plate aside.
16. Gently clean the fan blades with a brush.
17. Install the restriction plate according to the original settings noted on
your marking.
FIGURE 3-80
TYPE 2 INDUCTION BLOWER
18. Remove the securing screw which holds the air shutter in place and lift
it to expose the fan blades.
19. Gently clean the fan blades with a brush.
20. Lower the air shutter to the original settings noted on your marking and
install the securing screw.
