INSTALLATION
OVEN ASSEMBLY
SPLIT-BELT CONVEYOR DRIVE SYSTEM ASSEMBLY (CONTINUED)
Similarly to the conveyor motor, the conveyor input shaft also has specic sprocket sizes. ALL sprockets are
keyed with a 1/2” bore.

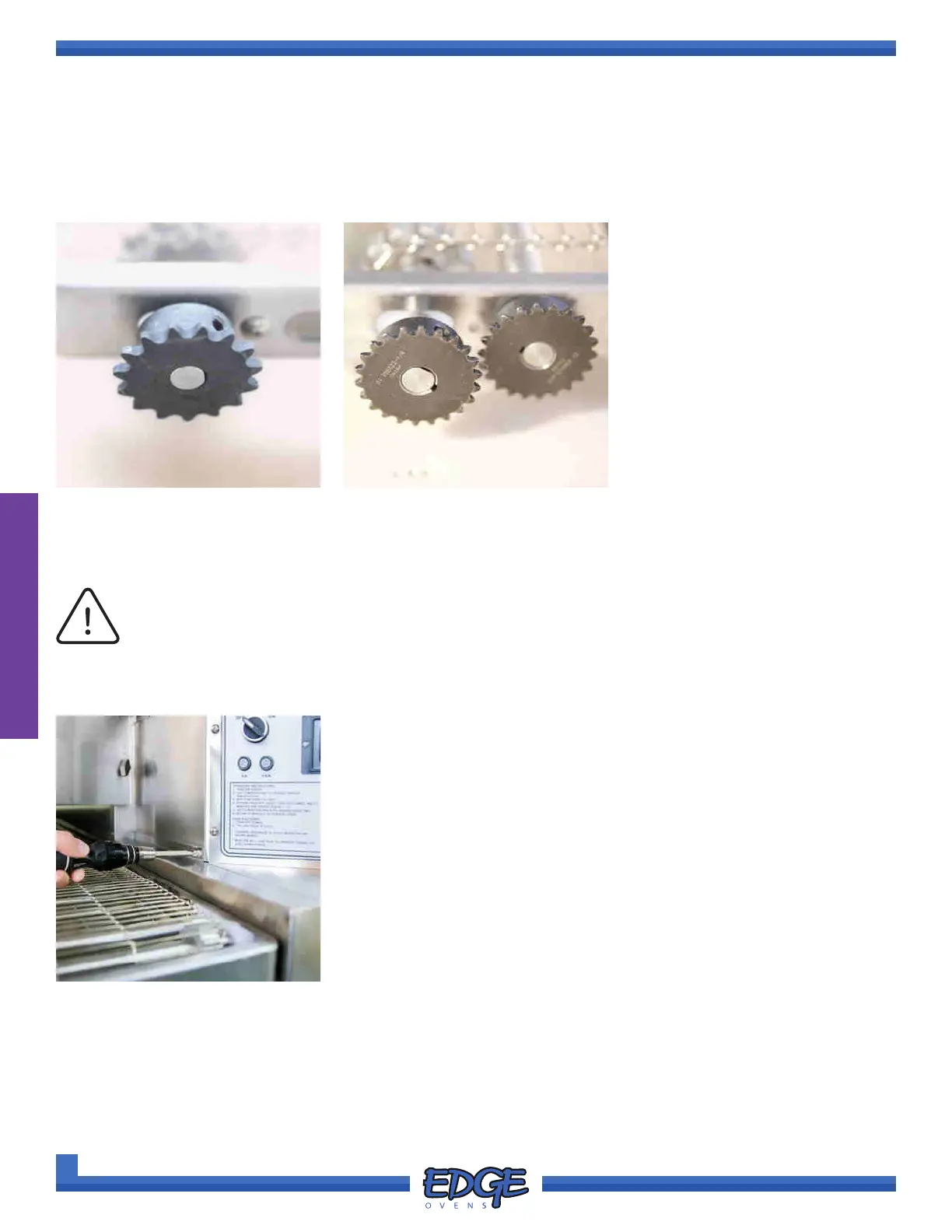

FIGURE 2-74
NON SPLIT-BELT CONVEYOR
15 TOOTH, 36 PITCH
(2 x ALLEN SET SCREWS)
SPLIT-BELT CONVEYOR
22 TOOTH, 25 PITCH
(2 x ALLEN SET SCREWS)
FIGURE 2-75
The oven conveyor belt will arrive tted in your oven. Each belt end is folded to protect the
belt from damage during shipping. For instructions of how to unfold the belt ends please see
the “BELT ASSEMBLY” section.
NOTICE
1. Using a #2 Phillips screwdriver, remove the securing screw from the
conveyor drive chain guard. RETAIN SCREW FOR LATER USE.
(Figure 2-76)
FIGURE 2-76
To Next Page
