INSTALLATION
FIRE SUPPRESSION

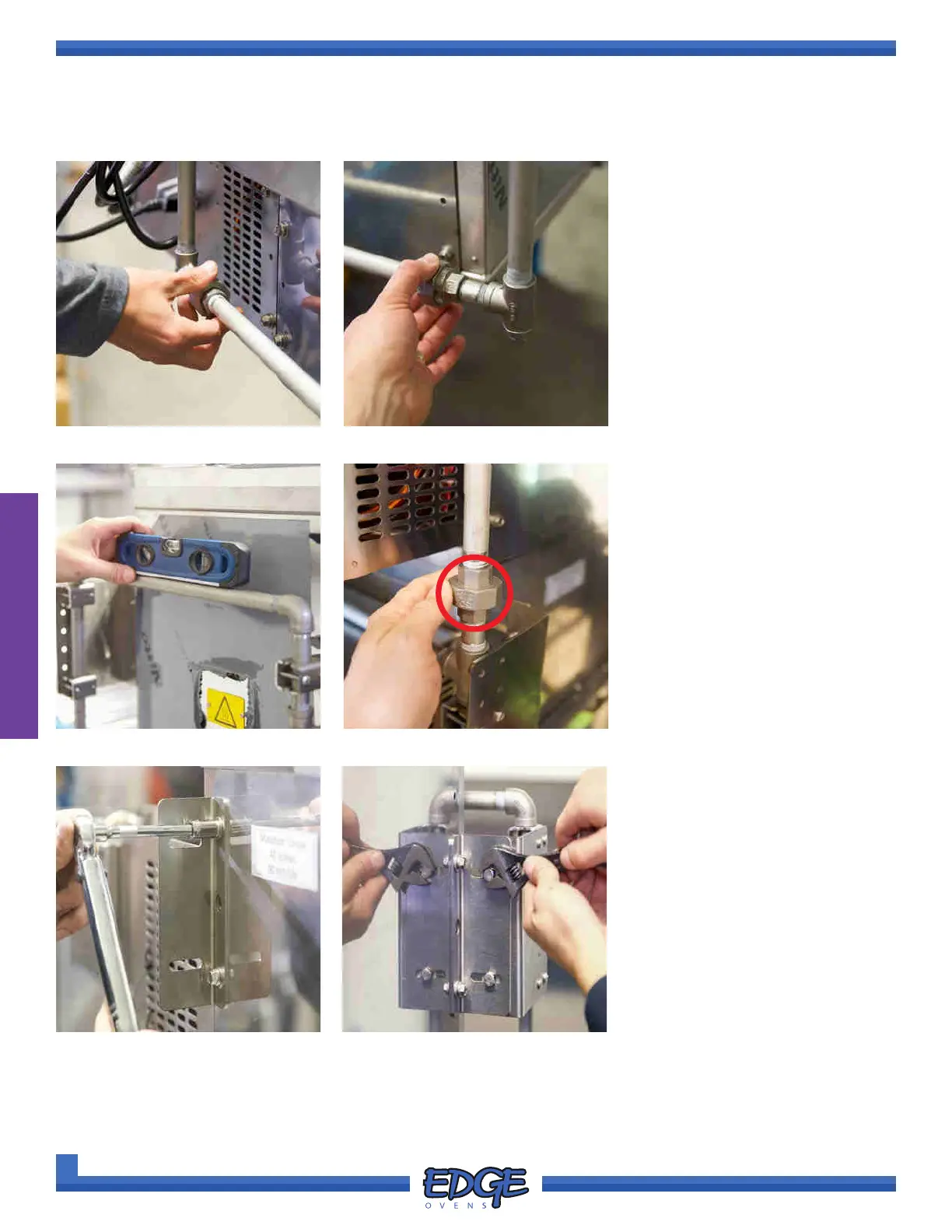

FIGURE 2-140
8. Install the horizontal
connection pipe between the
lower pipework sections of the
bottom oven deck.
Join the unions by hand and
tighten with an adjustable
wrench. (Figure 2-140 & Figure
2-141)
FIGURE 2-141
FIGURE 2-144
9. Once you are satised with
the level and positioning of
the pipework, tighten all union
ttings between oven decks
with an adjustable wrench.
(Figure 2-142 and Figure
2-143)
FIGURE 2-142 FIGURE 2-143
10. Using a 3/8” socket and torque
wrench, tighten the 3/8” hex-
head screws that secure the
‘A’ brackets to the oven back.
(Figure 2-144)
DO NOT EXCEED 90inch/lbs
of torque when tightened.
11. Tighten the securing bolts on
the adjustment slots for all ‘A’
brackets using 7/16” wrench or
an adjustable wrench. (Figure
2-145)
FIGURE 2-145
PIPE & BRACKET INSTALL (CONTINUED)
