Edwards nEXT nEXT85 - Accessories; Air Cooler; Water Cooler; Figure 23 Accessories

13. Accessories

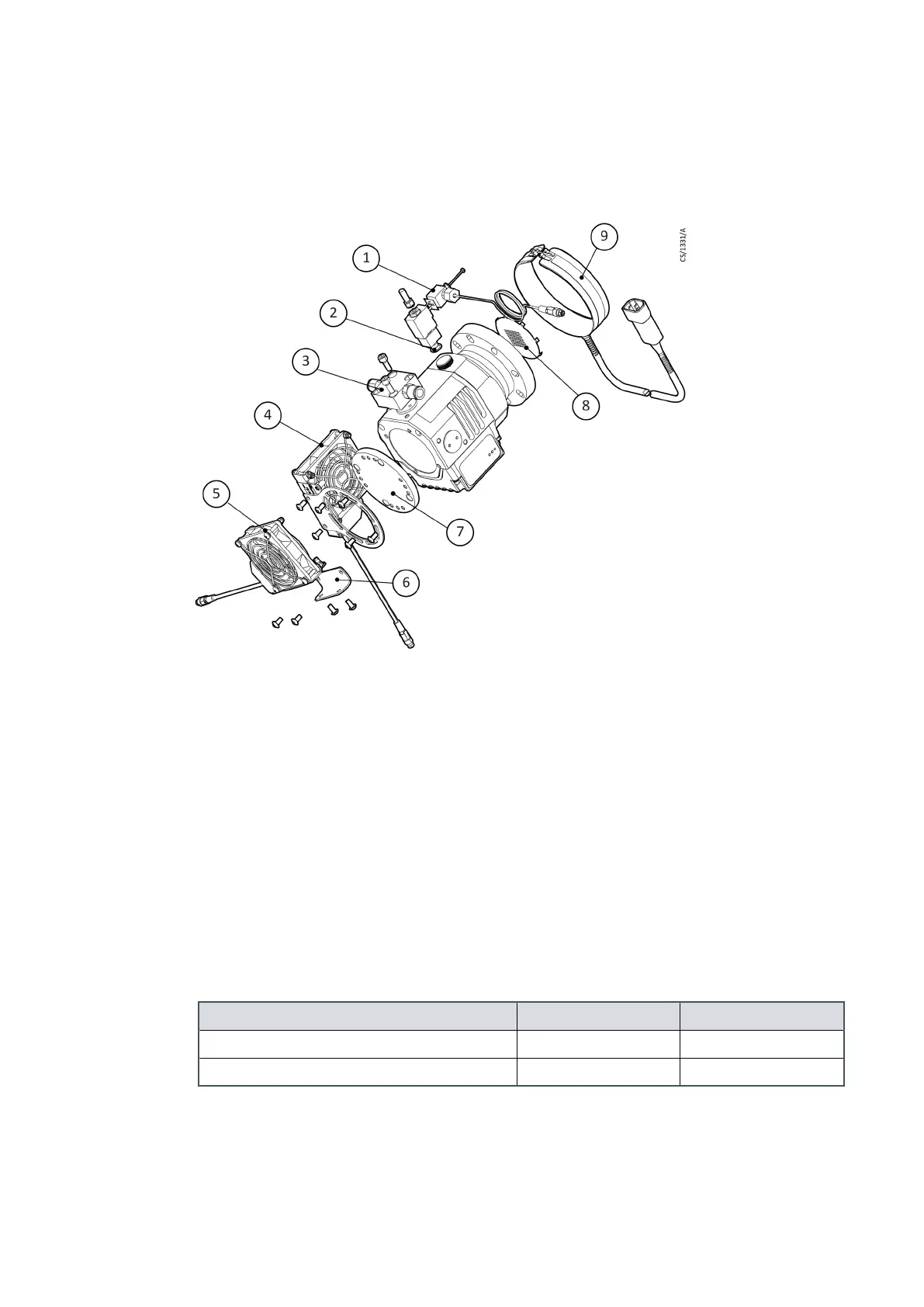

Figure 23 Accessories
1. TAV Solenoid vent-valve 2. Manual vent-valve (ed)
3. nEXT85 water cooler 4. ACX85 Radial air cooler
5. ACX85 Axial air cooler 6. ACX85 Axial air cooler mounng bracket
7. Base mounng adaptor 8. Inlet screen (CF63 shown)
9. Flange heater
1. TAV Solenoid vent-valve 2. Manual vent-valve (ed)
3. nEXT85 water cooler 4. ACX85 Radial air cooler
5. ACX85 Axial air cooler 6. ACX85 Axial air cooler mounng bracket
7. Base mounng adaptor 8. Inlet screen (CF63 shown)
9. Flange heater
13.1 Air cooler
The air coolers are available with a pre-wired connector which connects to an auxiliary
port on the controller or with a bare wire.
An air cooler can be installed to the pump. Refer to Forced air cooling on page 56 to
check the correct air-cooling in a parcular applicaon. The air coolers are pre-wired to
Vent Opon 2 and the default is set to Always On (opon 8).
Table 42
Air cooler
Air Cooler
Current draw Item number
nEXT85 Air cooler kit - wired 150 mA B8G200820
nEXT85 Air cooler kit - bare wire 150 mA B8G200821
13.2 Water cooler
A water cooler can be installed to the pump if the water supply is applicable.
Refer to Forced air cooling on page 56 to check the applicable water-cooling supply.
