Edwards nEXT nEXT85 - Technical Data; General Technical Data; Figure 1 Dimensions - Next85 ISO63

3. Technical data
3.1 General technical data
Table 1 General technical data
General items Reference data
Dimensions
Refer to Figure: Dimensions - nEXT85 ISO63
on page 18, Figure: Dimensions - nEXT85
CF63 on page 19, Figure: Dimensions -
nEXT85 ISO100 on page 19 and Figure:
Dimensions - nEXT85 DN40 on page 19.
Maximum inlet ange temperature 120 °C
Maximum permied external magnec
eld
5 mT Radial (for standard aluminium
envelope pump)
Polluon degree 61010-1 Polluon degree 2
Equipment type Fixed equipment, for indoor use only
Enclosure protecon (installed) IP64
Power supply 24 - 48 V d.c. (Refer to Electrical data on
page 22 for addional informaon)

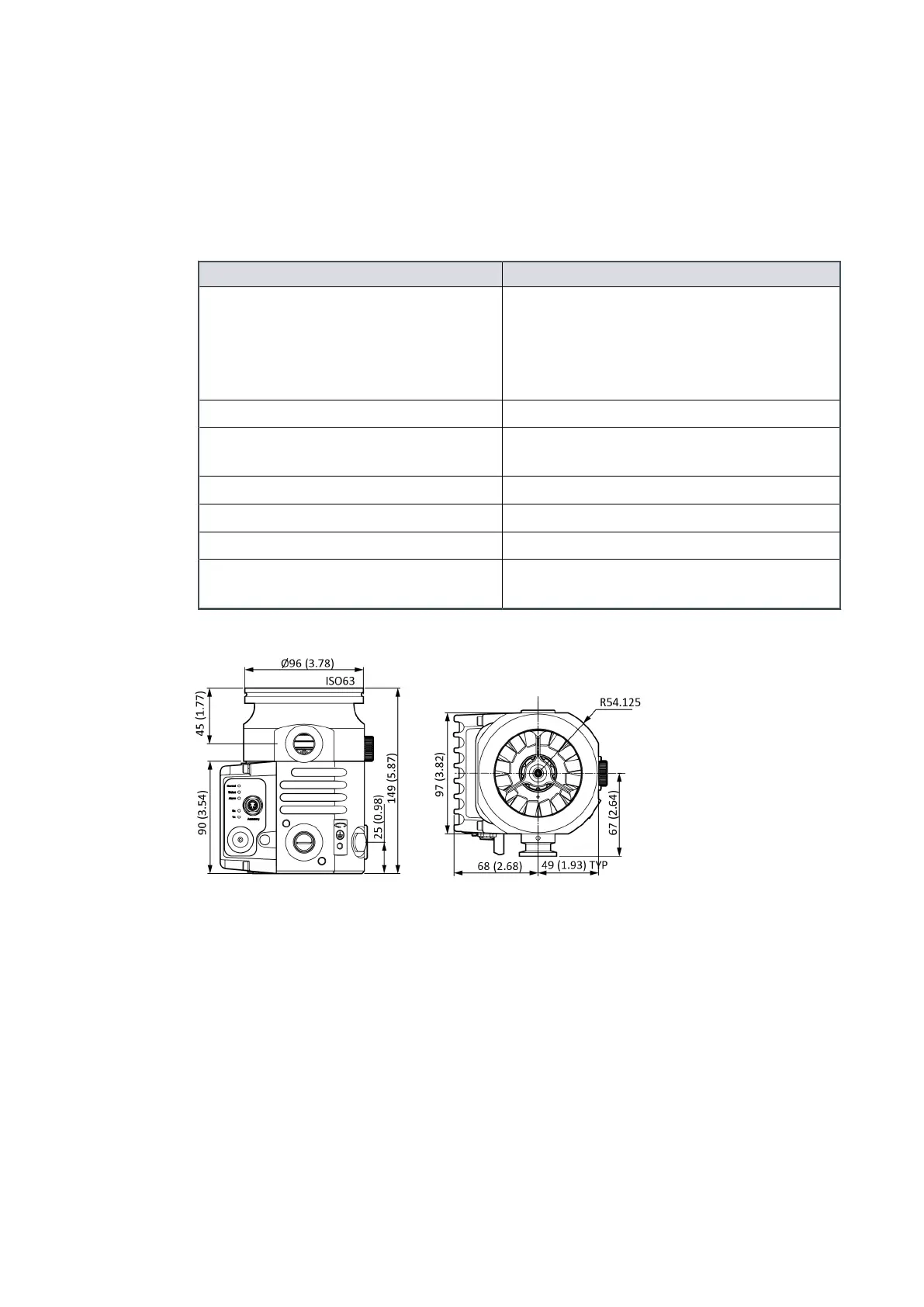

Figure 1 Dimensions - nEXT85 ISO63
All measurements shown are in mm (inches)
Page 18
B8G000880_D - Technical data
