22Installation and Service Guide: Color Controller E-85
Installing hardware
Connecting to the network
Use the following procedure to connect the E-85 to the customer network.
To connect to the network
1 Shut down the E-85 before connecting it to any network device (see page 38).
2 Obtain the appropriate straight-through Ethernet cable for the customer network connection:
• For 10BaseT link speed, use a cable that is Category 3 or higher.
• For 100BaseTX, use Category 5 or higher (4-pair/8-wire, short-length).
• For 1000BaseT, use Category 5e or higher (4-pair/8-wire, short-length).
Note: Be sure to use a straight-through Ethernet cable for the network connection. To verify the cable type, align the
connectors on each end of the cable, as shown in Figure 6. On a straight-through cable, the wire arrangements are
identical on both ends; on a crossover cable, the wire arrangements are different.

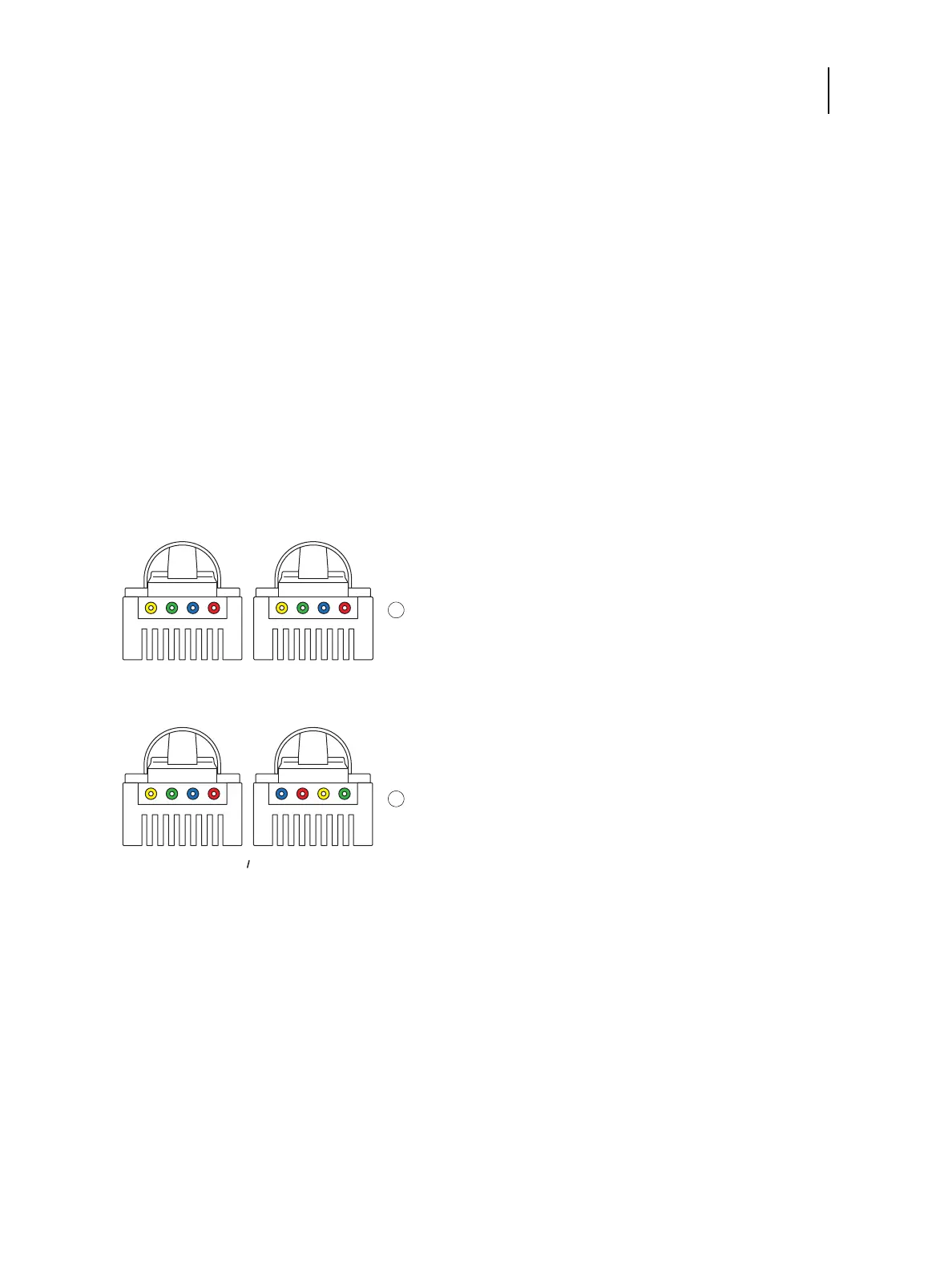

Figure 6: Straight-through and crossover Ethernet cables
3 Connect one end of the network cable to the network connector on the back of the E-85 (see Figure 21 on page 44).
The motherboard in the E-85 has an external Ethernet network connector that supports 10/100/1000 Mbps link speed.
4 Connect the other end of the cable to the customer network.
1 Straight-through cable:
wire arrangements are identical on both connectors
2 Crossover cable:
wire arrangements are different (The wire arrangement shown here is an example;
actual arrangements may vary.)
Note: Align cable connectors side by side and examine wires
