75Installation and Service Guide: Color Controller E-85
Replacing parts
11 Slide the power supply toward the front panel and take the power supply off from under the chassis bar.

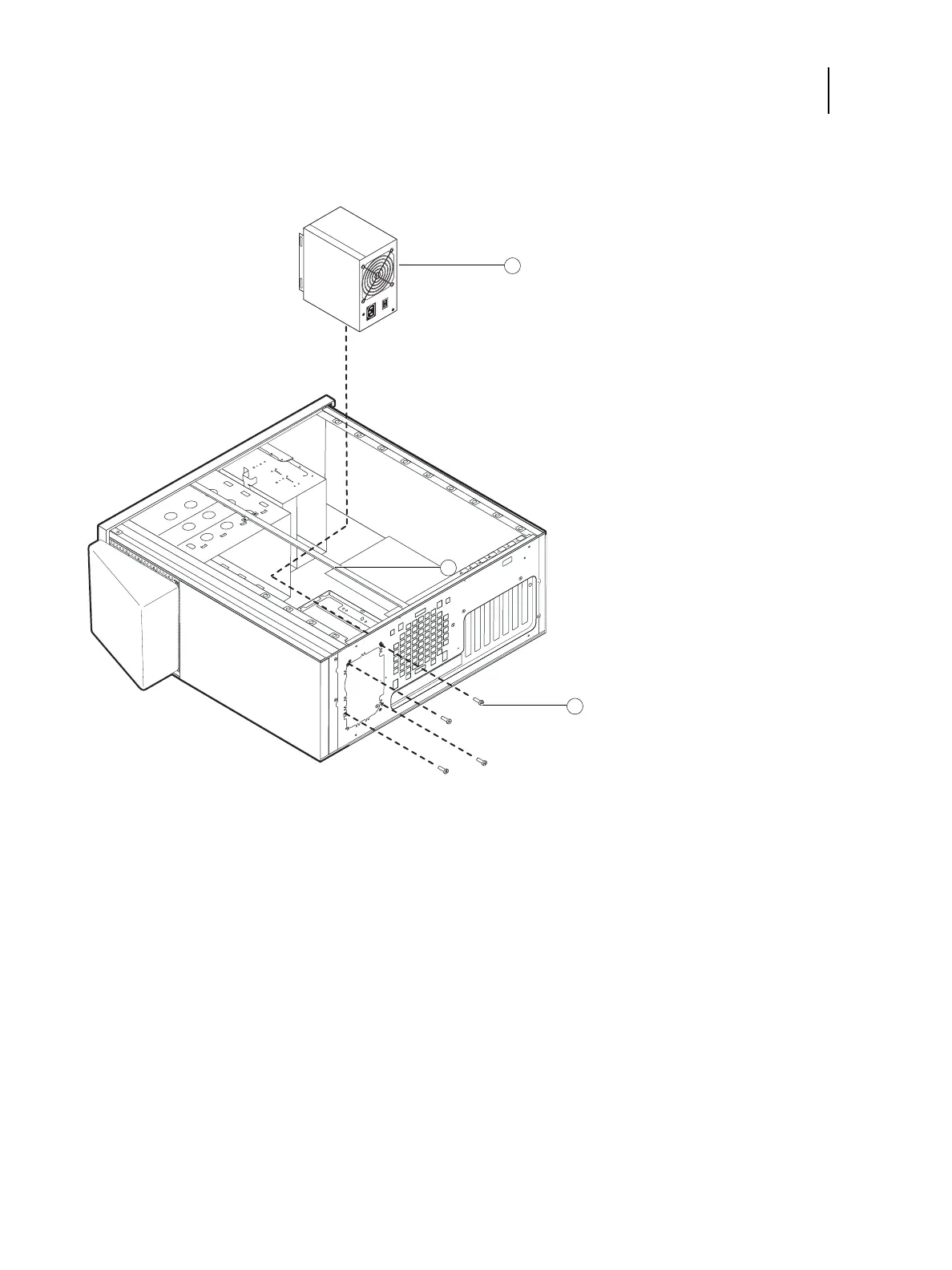

Figure 40: Removing/replacing the power supply
To replace the power supply
1 Make sure that the E-85 is in upright position.
2 Position the power supply inside the chassis (see Figure 40 on page 75).
Insert the power supply unit under the chassis bar, and place the power supply on top of the left and right chassis bars.
Position the power supply so that it is flush against the connector panel.
3 Install the four screws that secure the power supply to the connector panel of the chassis.
4 Replace the motherboard (see page 60).
1Power supply unit
2 Chassis bar
3 Screw (1 of 4)
Note: To service the power supply, place the E-85 in an upright position.
