51Installation and Service Guide: Color Controller E-85
Replacing parts

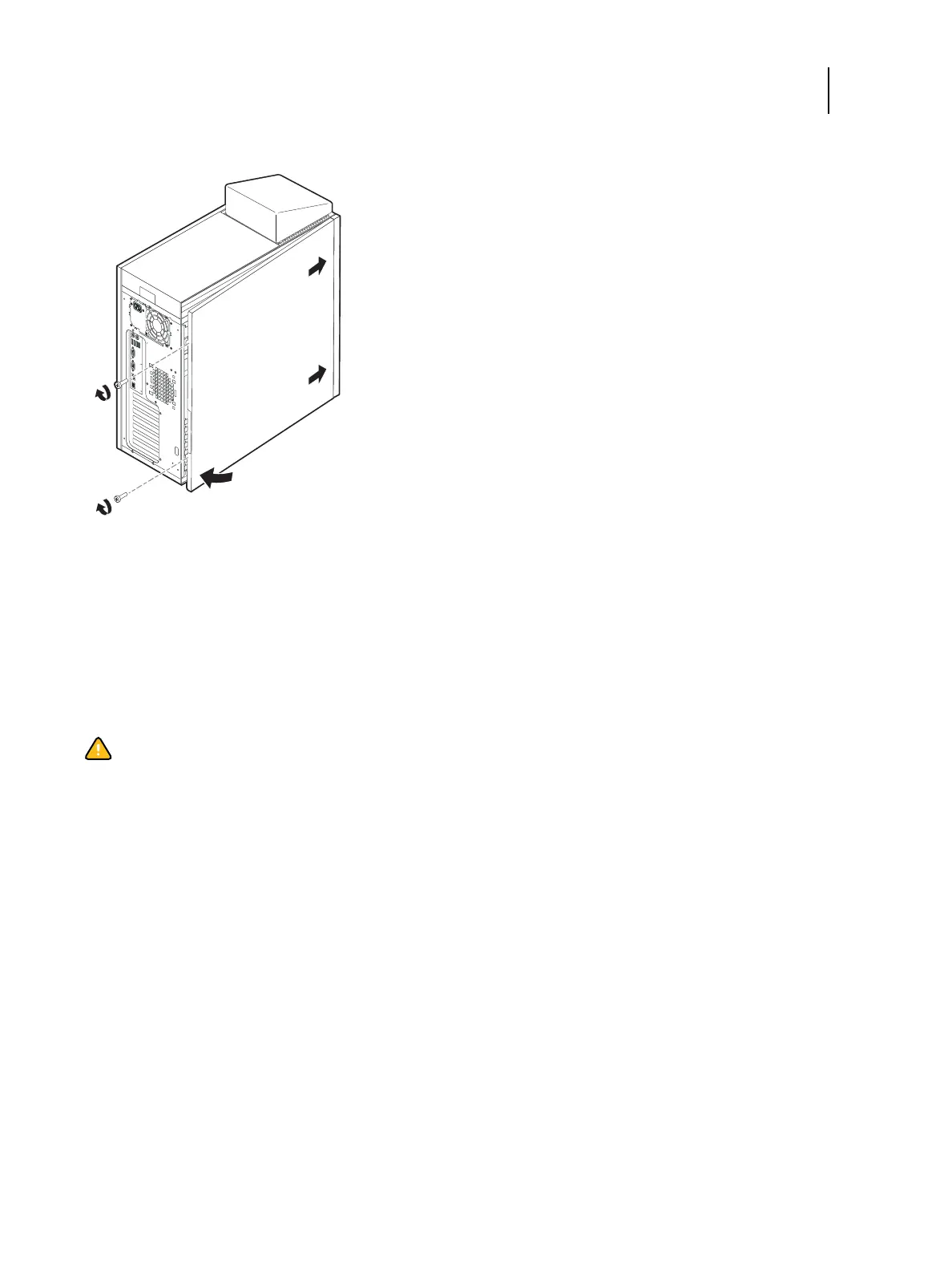

3 Slide the right chassis cover into place and secure with two screws on backside of the unit.
4 Slide the left chassis cover into place and secure with two screws on backside of the unit.
Fiery QuickTouch display module
Fiery QuickTouch is attached to the top panel of the E-85.
Follow the directions to remove the chassis covers. See “Opening the E-85” on page 48. You will need to remove the side
covers, then the front cover before you will be able to release the top bezel with the Fiery QuickTouch attached.
To remove the Fiery QuickTouch
1 Follow the instructions to remove the side and front chassis covers.
2 To remove the top bezel, slide the bezel forward and release it from the top of the chassis.
Caution: It is highly recommended that you use a screwdriver with a magnetic tip when removing or replacing
screws on the Fiery QuickTouch. If you do not, the screws you remove or replace might fall inside the Fiery
QuickTouch device.
