68Installation and Service Guide: Color Controller E-85
Replacing parts
2 To release a DIMM, push outward on the levers on each side of the DIMM.

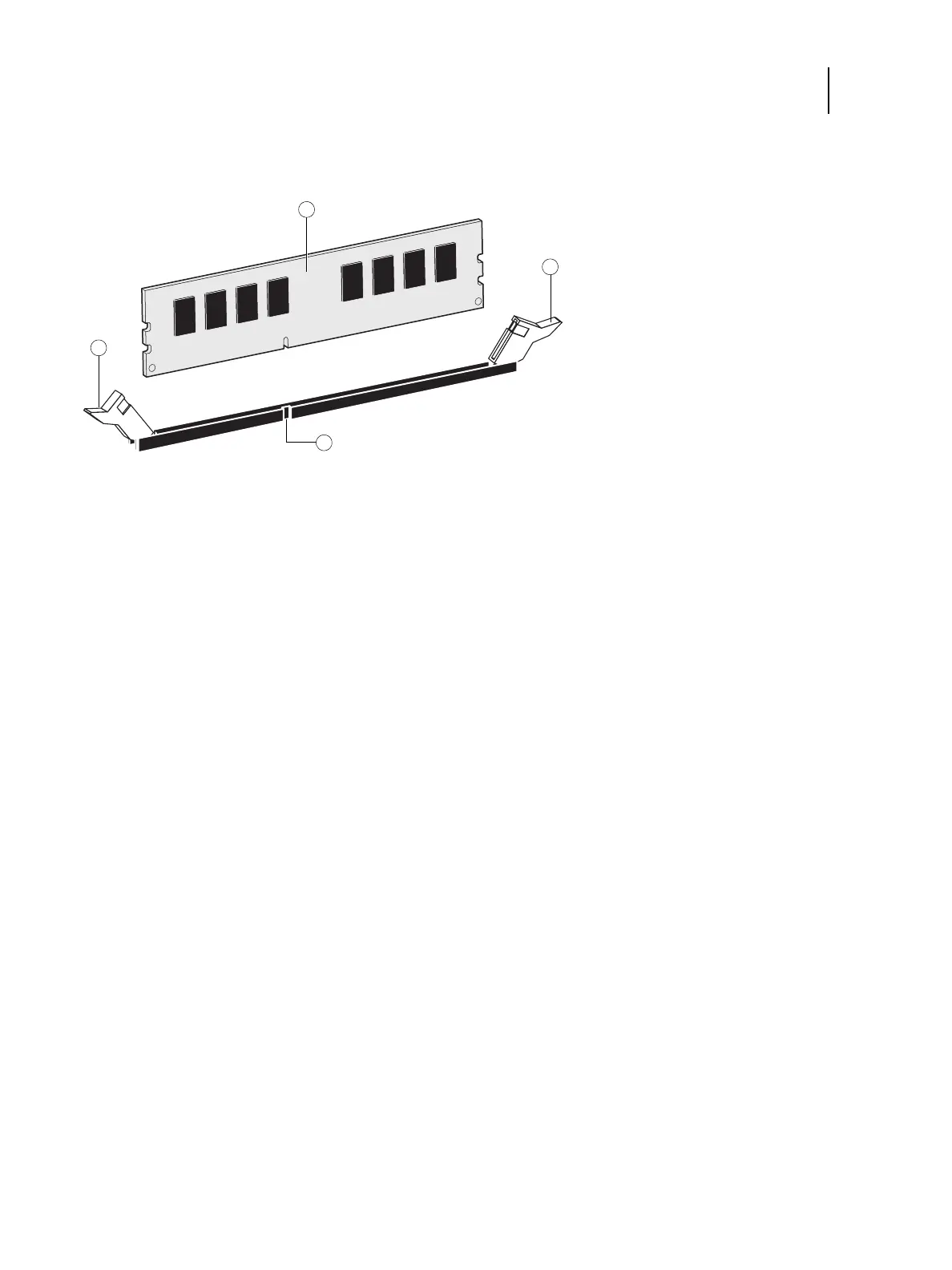

Figure 35: Releasing a DIMM
3 Lift the DIMM straight out of the socket.
4 To replace a DIMM, position the DIMM in the socket and press the DIMM straight down into the socket so that the
levers lock the DIMM into place.
Note: DIMMs fit in the socket only one way. The notch on the bottom of each DIMM should line up with the notch in
the socket.
Make sure that the levers close securely around the ends of the DIMM and each DIMM is fully seated in its socket.
5 Reassemble the E-85 and verify its functionality (see page 83).
6 If you installed a new DIMM, configure the time and date in Setup.
For more information, see Configuration and Setup, which is part of the user documentation set.
1DIMM
2 Lever
3 Socket notch
1
2
3
2
