82Installation and Service Guide: Color Controller E-85
Replacing parts
3 Release the front latches on both side of the DVD drive by squeezing the levers, and pull the DVD drive out of the slot.

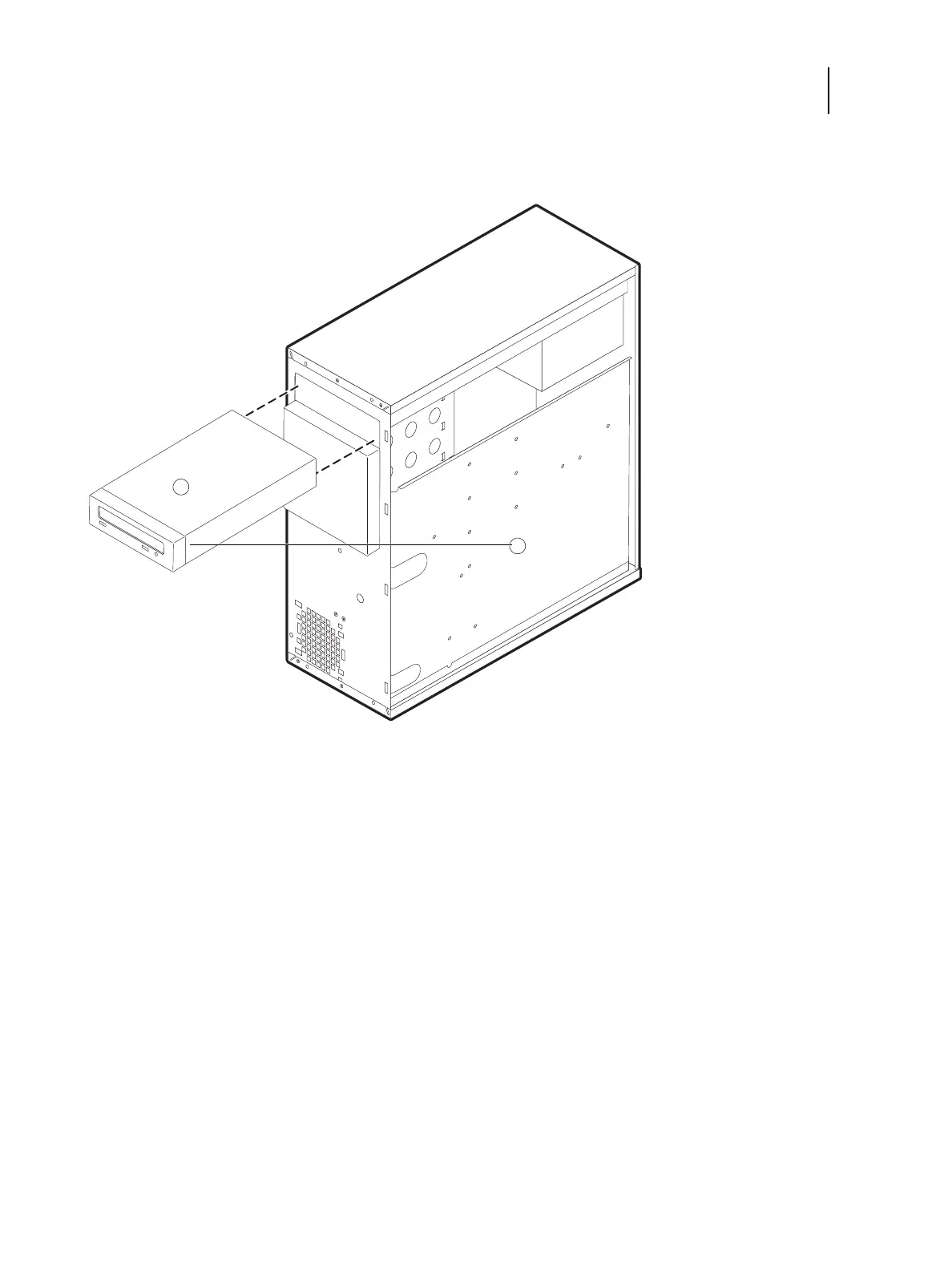

Figure 43: Removing/replacing the DVD drive
4 If you are replacing the DVD drive with new one, remove the eight screws on the side of the DVD drive and remove
the ears.
Set aside the screws so that you can replace them later.
To replace the DVD drive
1 If you are installing the new DVD drive, attach the ears on both side of the DVD drive using the eight screws you
removed earlier.
2 Insert the DVD drive into the front panel cutout until the latch snaps.
3 Connect the data/power cables to the connectors on the back of the DVD drive.
Make sure that the other ends of the cable are connected to the power supply and to Mini SAS on the motherboard.
4 Reassemble the E-85 and verify its functionality (see page 83).
1 Latch lever (1/2)
2DVD drive
