Servicing the System with Furniture
This chapter describes how to remove the E-85 from the furniture to access internal components for service.
For the assembly instruction on the Fiery NX Station, see the documentation provided with Fiery NX Station kit.
Procedures
If the E-85 is installed in the optional furniture, you need to remove it from the furniture before performing most service
procedures.

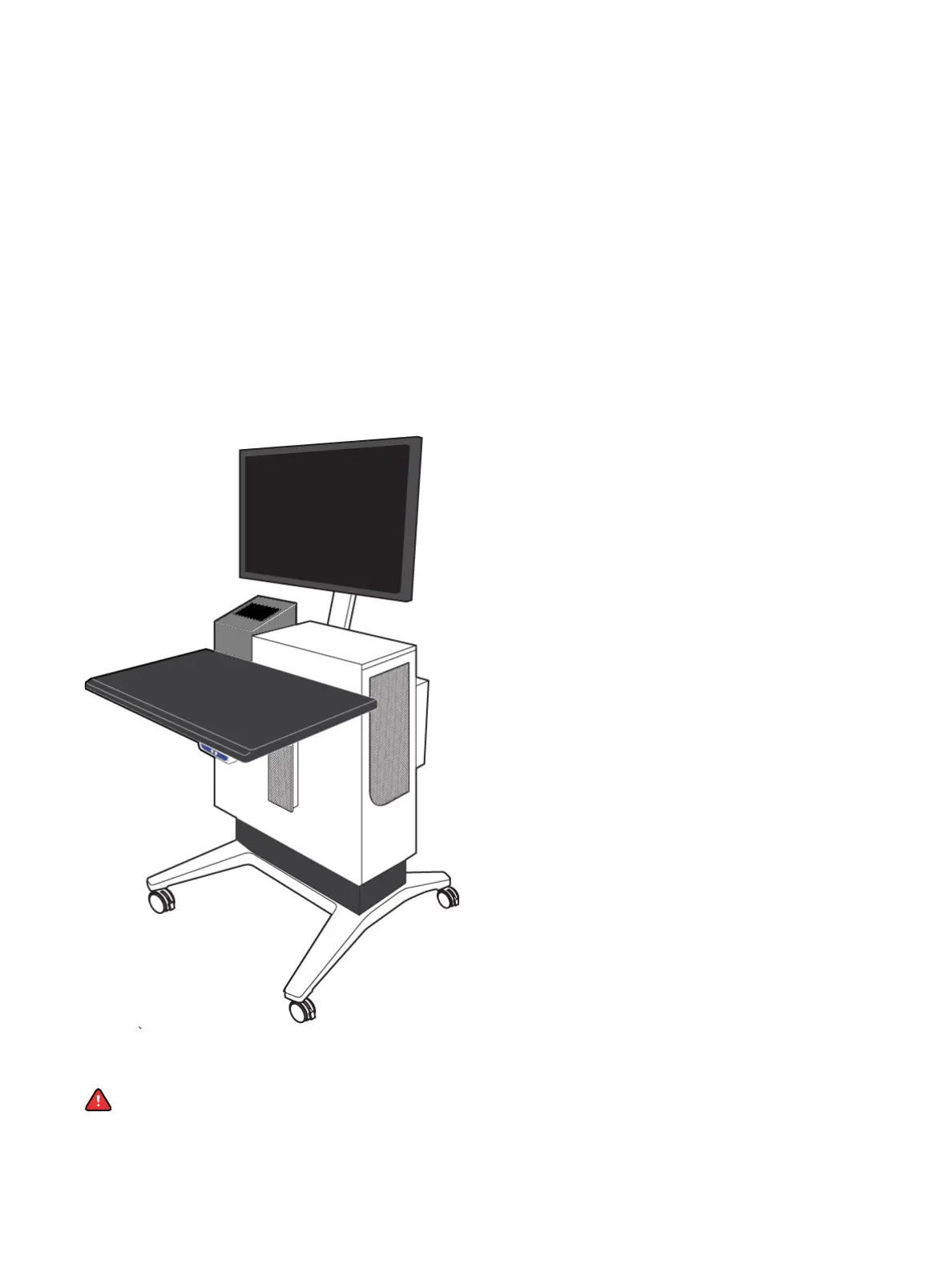

Figure 45: E-85 installed on the furniture
To remove the E-85 from the furniture
1 Make sure the E-85 is powered off and all the cables are removed from the back of the E-85.
To avoid injury, do not lift the E-85 without assistance. The E-85 weighs approximately 22kg. At least two persons
are required to move the device.
