Probes and Biopsy 12-25
2. Separate the bracket and the transducer from the needle.
3. Screw the pinch nut to release the needle-guided bracket.
4. Separate the bracket and the transducer.

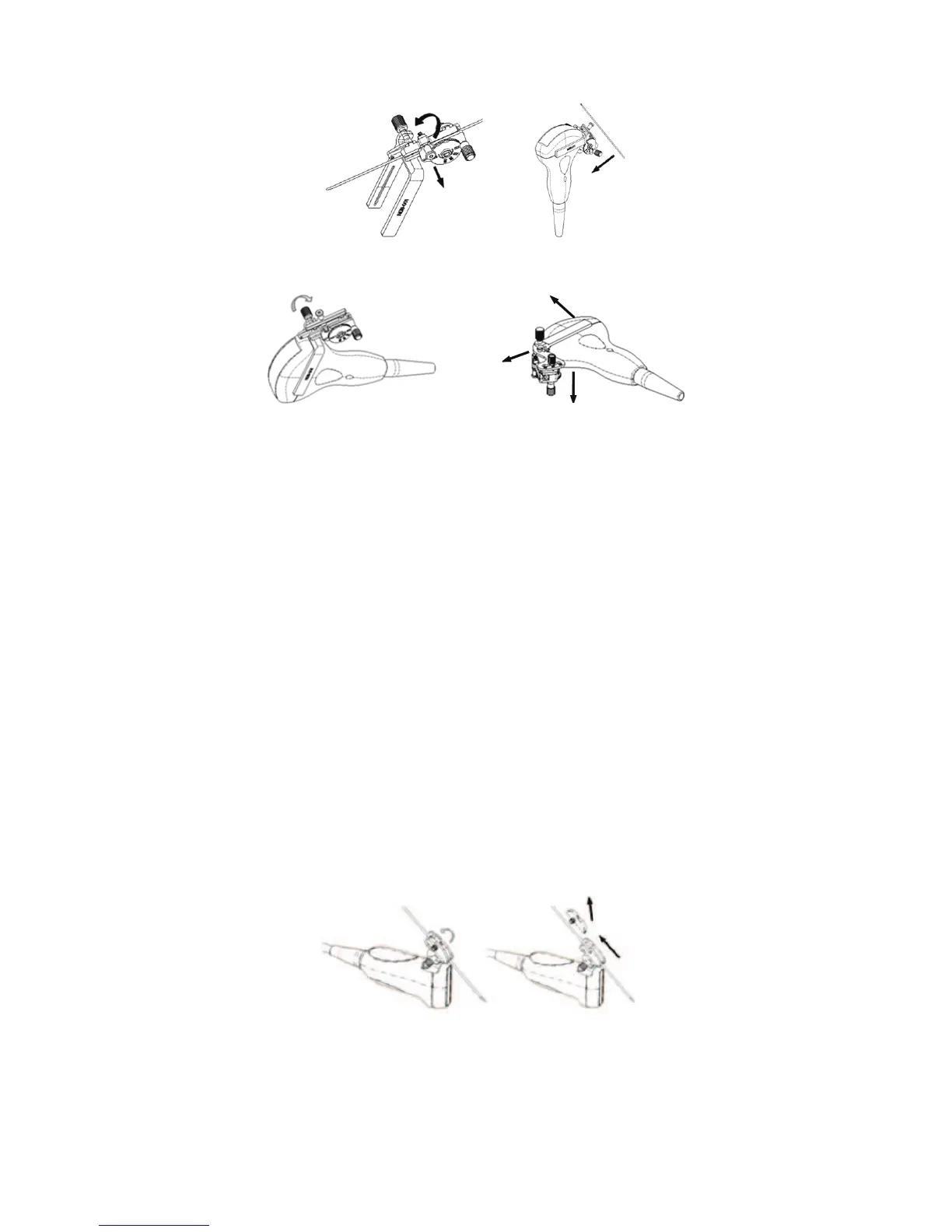

z Metal-needle undetachable
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
NGB-002
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
NGB-004
Hold the transducer in the left hand, unscrew the locking nut with the right hand to open
the retaining clamp, and then raise the needle-guided bracket to separate the locating
bulge from the locating grooves.
NGB-005
While holding the transducer and the needle-guided bracket, open the Grip knob of the
needle-guided bracket.
NGB-007
z Metal
1) Screw the nut of the guiding block and remove the guiding block slightly along
the direction of the needle!s tail.
2) Separate the residual part of the needle-guide bracket and the transducer from
the needle.
3) Screw the pinch nut of the bracket, and remove the needle-guided bracket from
the transducer.
