Eickemeyer MAGIC 6000 User Manual

12-26 Probes and Biopsy
z
Plastic

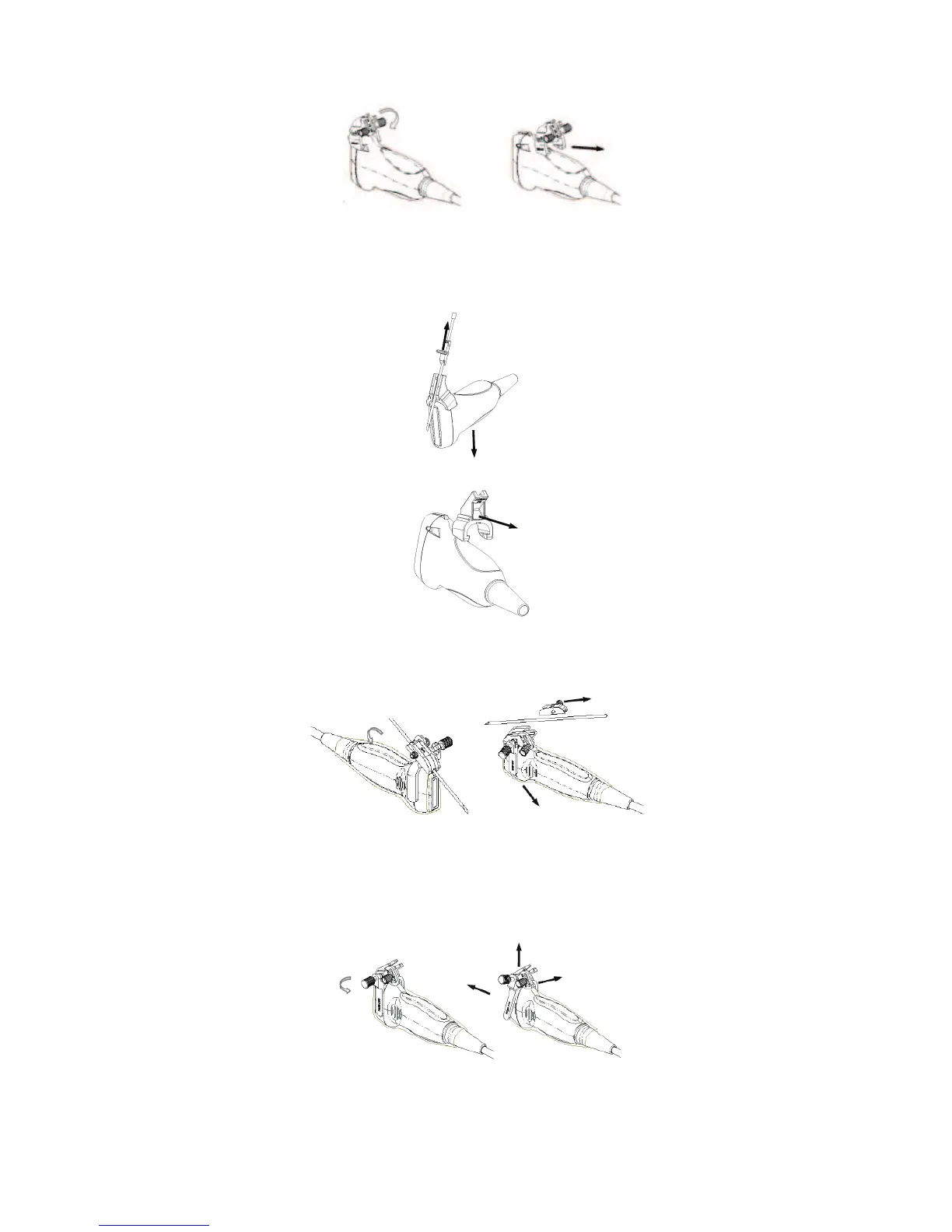

1) Remove the guiding block slightly along the direction of the needle!s tail.
2) Separate the residual part of the needle-guide bracket and the transducer from
the needle.
3) Remove the support of needle-guided bracket from the transducer.
 NGB-016
1. Screw the nut of the guiding block and remove the guiding block slightly along the
direction of the needle!s tail.
2. Separate the residual part of the needle-guide bracket and the transducer from the
needle.
3. Screw the pinch nut of the bracket, and remove the needle-guided bracket from the
transducer.
4. Separate the transducer and the needle-guided bracket.
