5.4 Assembling the balancer

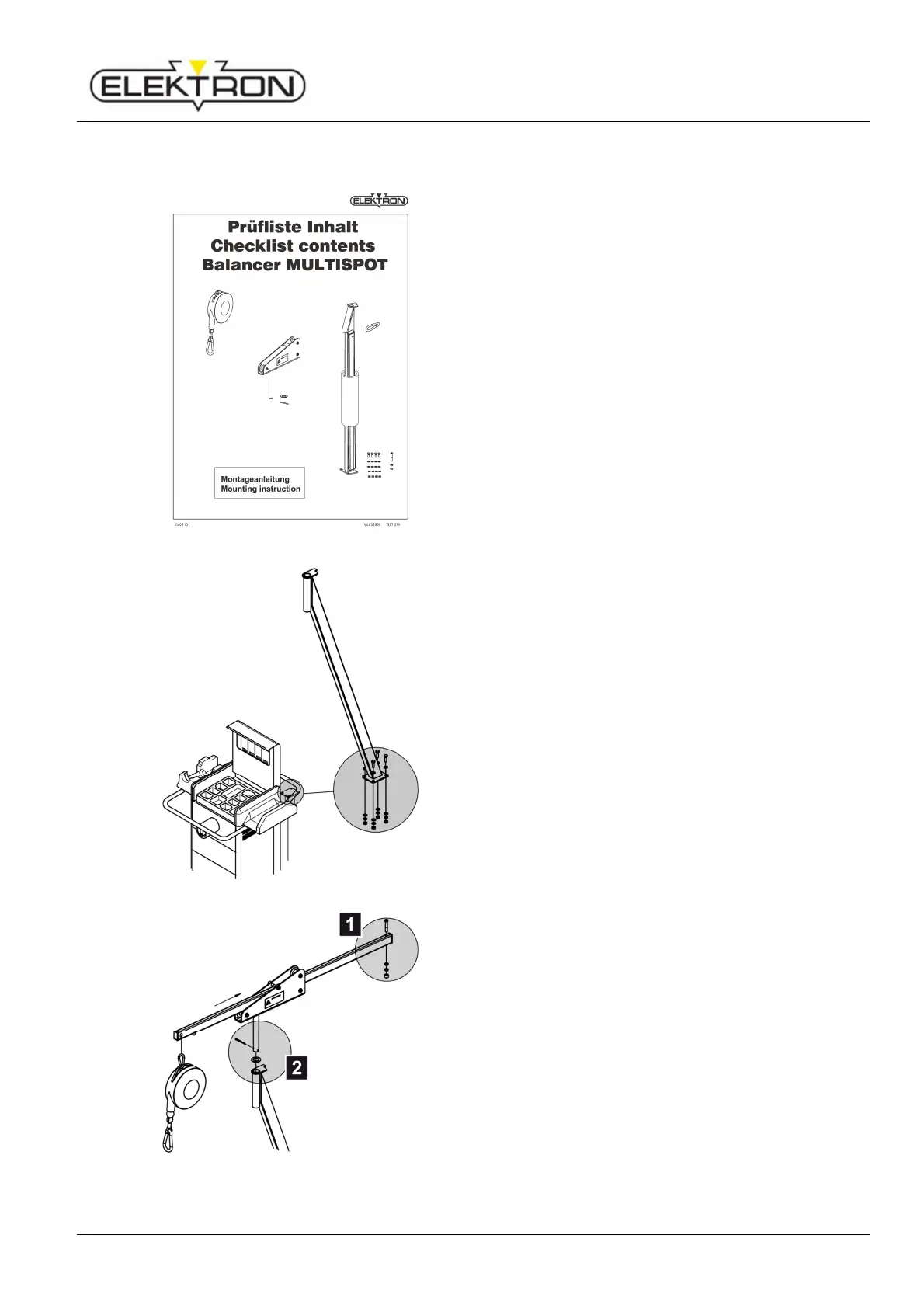

Fig. 22: Balancer checklist
1. Unpack the balancer.
2. Check balancer components for damage. Use the
checklist provided (Fig. 22) to check whether you have all
the parts.
—
——
— Balancer
—
——
— Guide rollers with locking pin and ring
—
——
— Vertical pipe and crossbar pipe
—
——
— Replacement carabine hook
—
——
— Four M8 bolts with two nuts and washers each
—
——
— Mounting instructions
Fig. 23: Vertical pipe
3. Mount the vertical pipe using four M8 bolts
(Fig. 23,  see separate operating and mounting
instructions).
Fig. 24: Crossbar pipe
4. Mount the crossbar (Fig. 24,
 see separate mounting instructions).
Proceed as follows:
—
——
— Mount and screw down stopper (Fig. 24/1).
—
——
— Insert crossbar pipe into guiding element.
Secure with locking pin (Fig. 24/2).
—
——
— Hang up spring balancer and secure (see operating
instructions for spring balancer).
