6.9.2 Pulling-out dents with washer
1. Grind the damaged area to a bright metal finish.
2. Insert contact piece U-B (Fig. 94) into welding gun.
3. Select “washer” mode and sheet thickness on display.
(Sheet steel thickness more than 2 x 1.5 = 3 mm cannot
be selected).
4. Fine-adjust +/–.
5. Position welding gun with washer in the area of the dent.
6. Press release button of the gun.

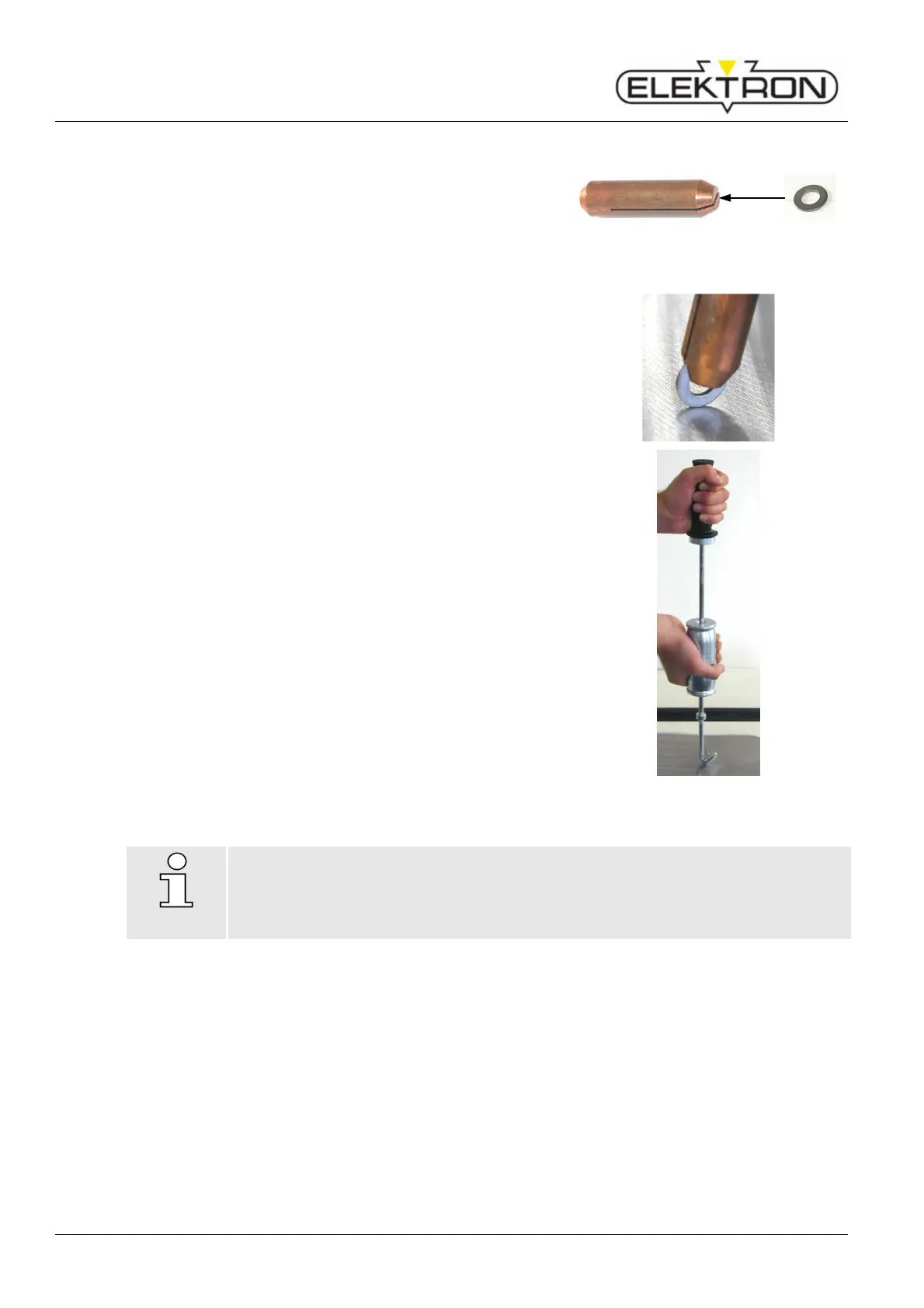

Fig. 94: Contact piece U-B
7. Hook pulling tool (Fig. 95) into the washer and carefully
beat out the dent.
8. Remove washer by twisting. Only twist the washer off,
otherwise holes in the sheet steel could result.
Fig. 95: Pulling tool
NOTE!
8 mm Washer. Always beat out major dents from the outside, working inwards.
Use bright washers instead of galvanized.
Adjust setting on display according to size and type of the dent, if necessary.
