Resistance welder MULTISPOT MI-100control
Installation
34
5.5 Electrical connections

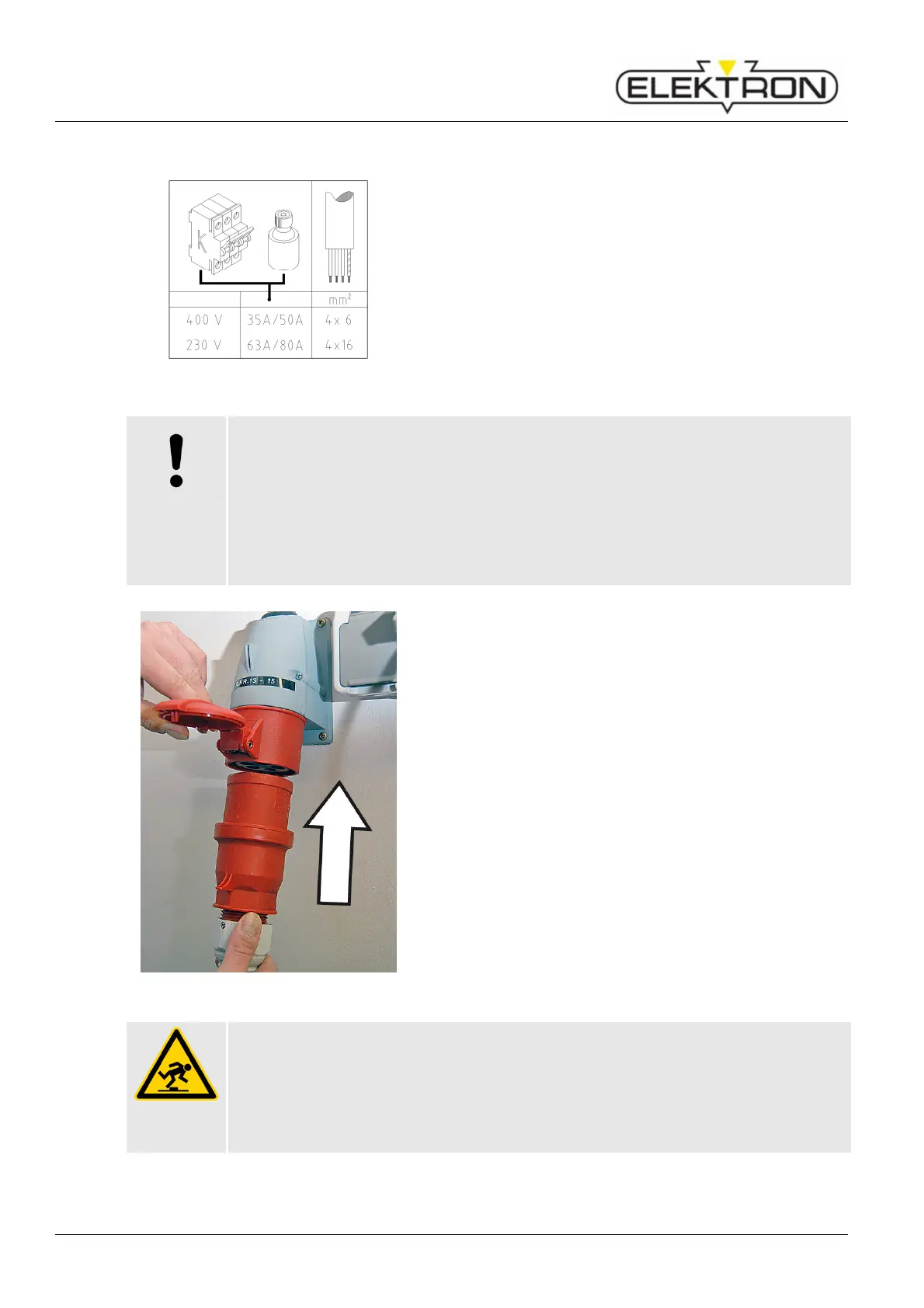

Fig. 25: Power grid specifications
Insufficient conductor cross-sections and fuse protection may make the grid collapse
and / or trigger the fuses and make efficient welding impossible.
Therefore:
Before you connect the welder to the mains, make sure conductor cross-sections
are sufficient (at least 6 mm² per 10 metres / AWG 10 per 33 ft of cable length).
Before you connect the welder to the mains, make sure the grid is properly
protected by fuses (at 32 A).
Fig. 26: Connecting welder to power supply
1. Take the power cord from its support.
2. Run the power cord along a safe route.
3. Connect the power cord to the mains.
4. Use strain relief clamps to protect cables.
Power cords may constitute a stumbling hazard when improperly laid or installed and
may cause people to fall and hurt themselves. In this particular case, the cable could
block the wheels of the welder and make it tip over.
Therefore:
Run the power cord along a safe route.
