Elektron MULTISPOT MI-100control - Connecting the pliers

Resistance welder MULTISPOT MI-100control
Installation
36

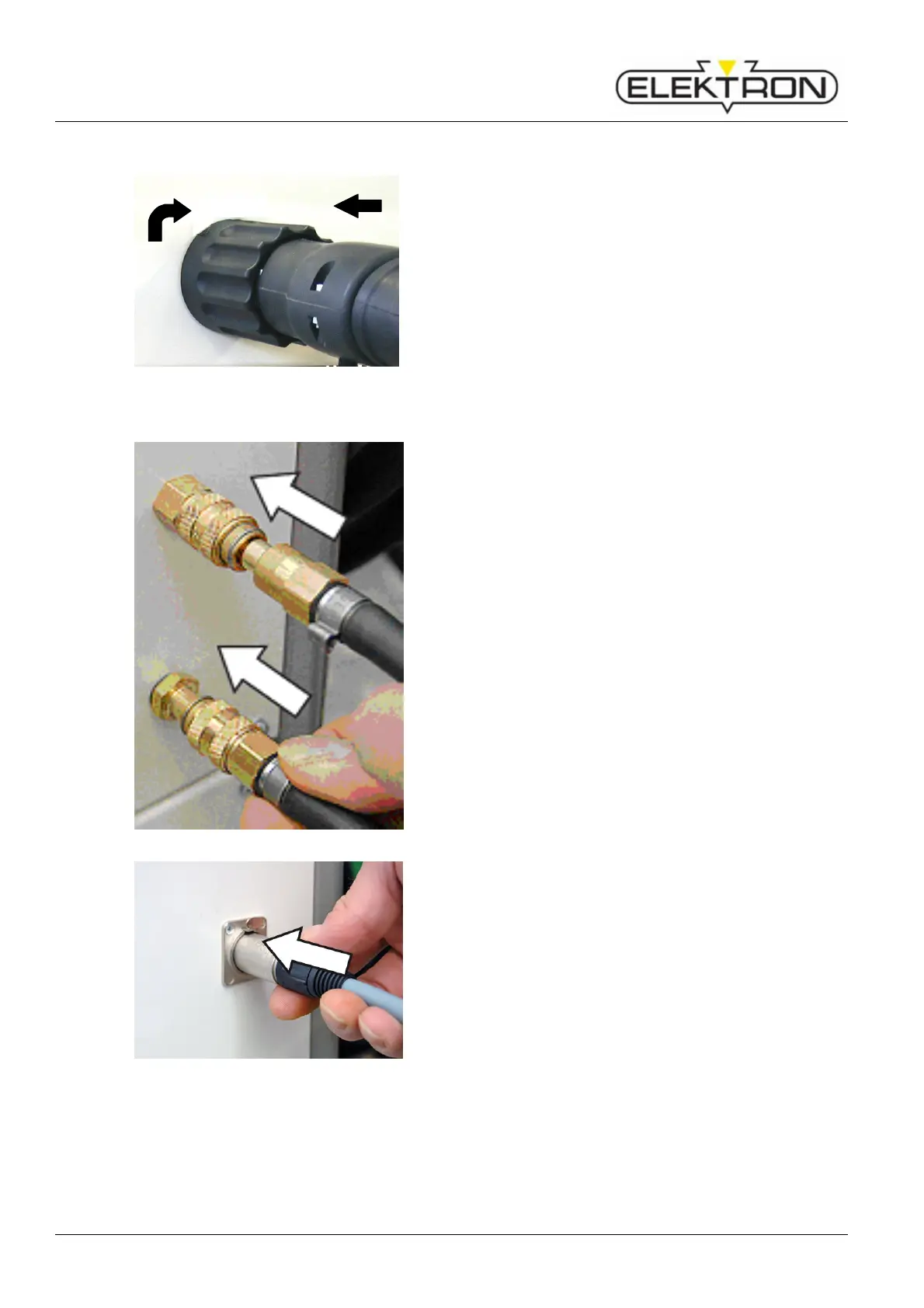

5.7 Connecting the pliers
Fig. 29: Connecting the pliers
1. Push the main plug of the welding pliers into the main
socket of the equipment (Fig. 29/1.).
2. Turn the retainer nut clockwise (Fig. 29/2.) to lock the
connection.
Fig. 30: Water cooling system for the pliers
3. Connect the water cooling system of the pliers.
Fig. 31: Connecting sensors of the pliers
4. Connect the sensors of the pliers.
2.
1.
