ELNA eXpressive 970 - Assembling the Spool Stand

9
v Attach the assembled spool stand to the machine with
the 3 setscrews.
i Setscrews
i
i

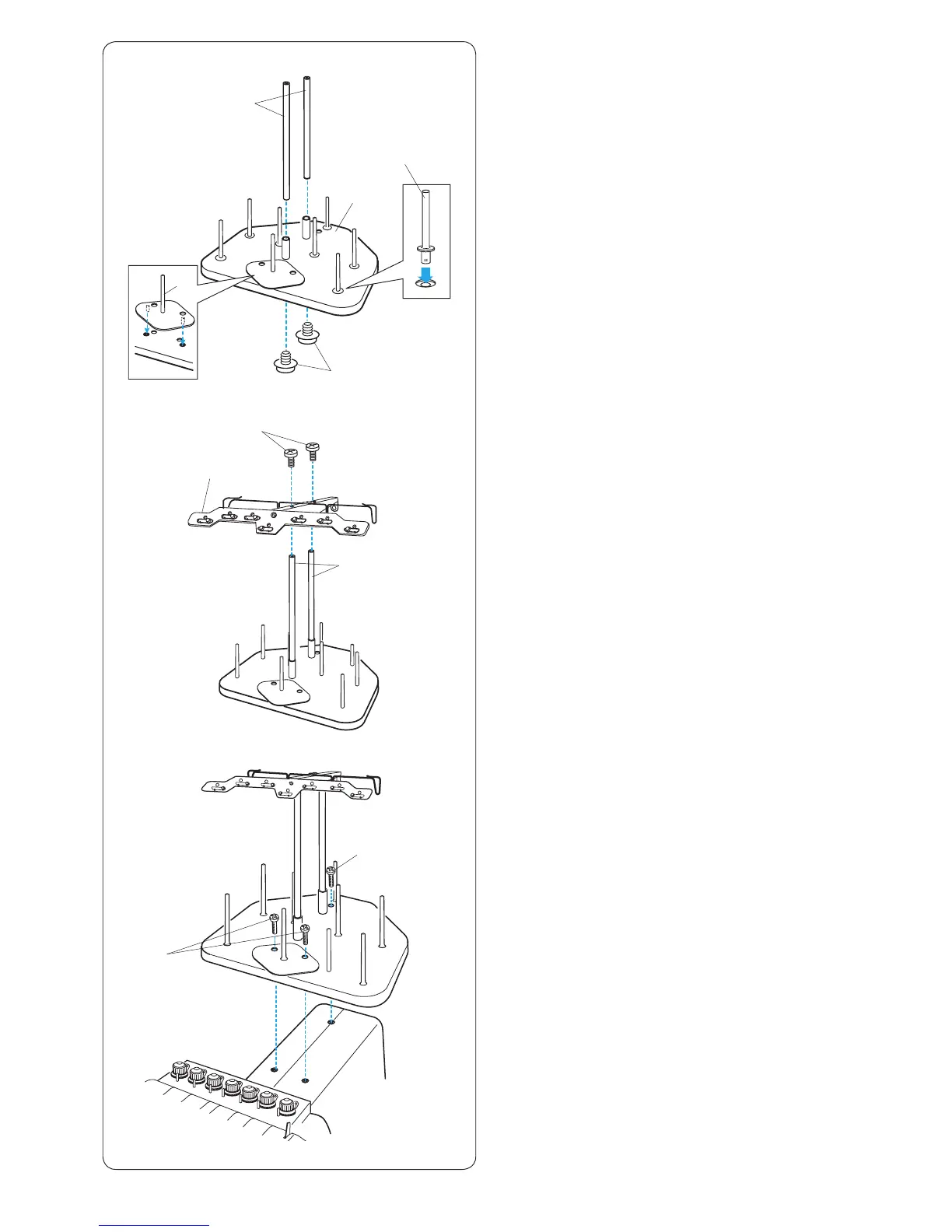

Assembling the Spool Stand
z Insert the spool pins A into the spool stand.
Insert the thread guide poles and secure the poles
with setscrews A from the bottom.
q Thread guide poles
w Setscrews A
e Spool stand
r Spool pin A
x Insert the spool pin B into the spool stand.
t Spool pin B
q
w
e
y
u
q
r
t
v
c
z x
c Attach the thread guide bar to the thread guide poles
with the setscrews B.
* Tighten the setscrews rmly with the screwdriver
(large).
y Thread guide bar
u Setscrews B
