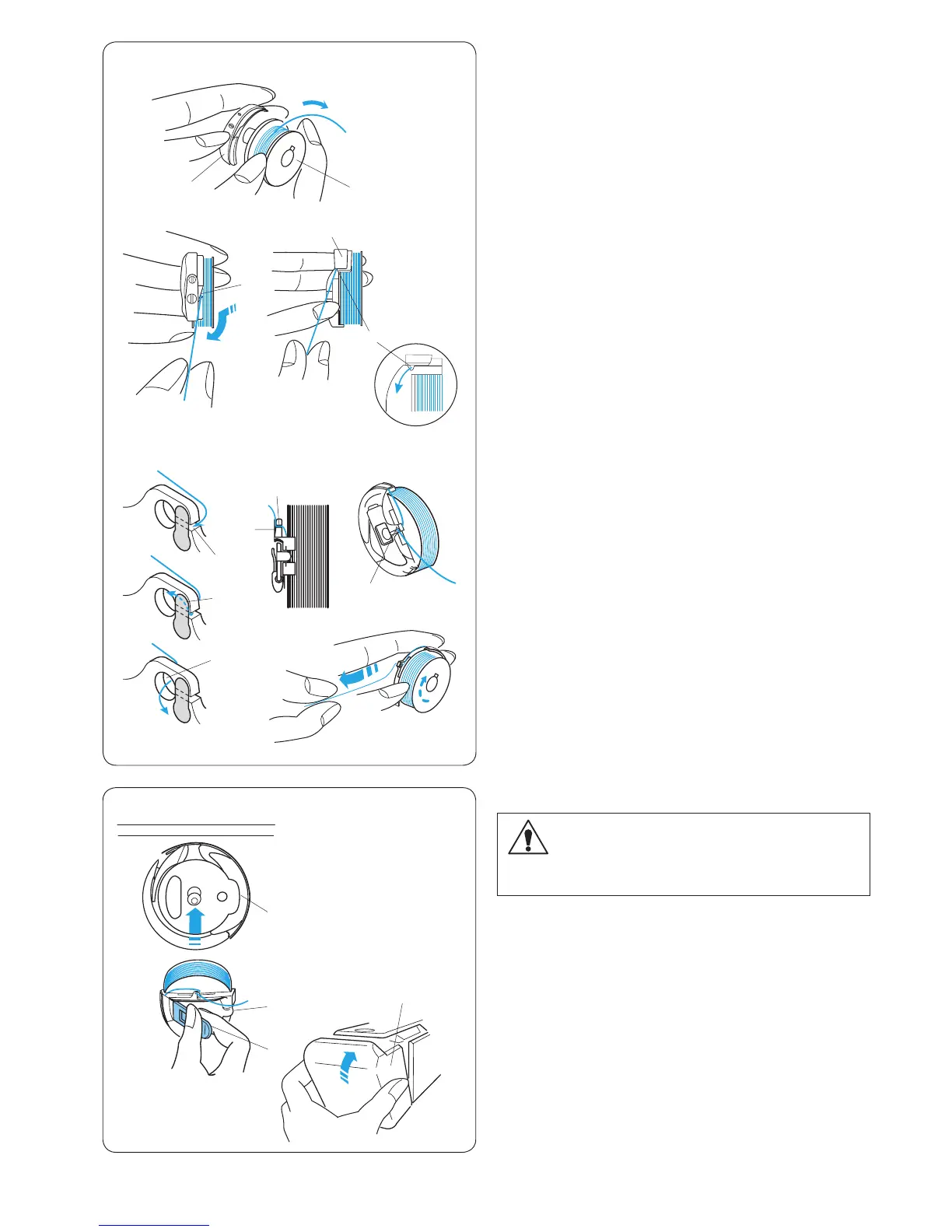

Inserting the bobbin
z Insert the bobbin into the bobbin case leaving a
2˝ (5 cm) thread tail as illustrated.
q Bobbin
w Bobbin case
z
x c
v
q
w
e
r
t
y
q
w
z
x
e
r
Inserting the bobbin case
CAUTION:
Turn the power switch off before inserting the bobbin
case.
z Hold the bobbin case with the latch and insert the
bobbin case into the hook, aligning the bulge with the
concave. Push the bobbin case as far as it will go and
release the latch.
q Latch
w Bulge
e Concave
x Close the hook cover.
r Hook cover
u
y
u
i
i
x Draw the thread to slip it into the slit of the bobbin
case.
e Slit
c Pull the thread to slide it under the tension blade until
the thread comes out from the notch.
r Tension blade
t Notch
v Draw the thread to the right behind the thread guide
and slip the thread into the back slit.
y Back slit
u Spring
i Front hole
* The bobbin should turn clockwise when the thread
is pulled.
* Pull out about 2˝ (5 cm) of thread.
