Oiling
If you use the machine frequently, oil the following points
every four months.
z Turn the machine on and select pattern #1.
Move the head to the right-most position by selecting
needle bar #7.
The oiling points will be exposed.
Turn the machine off.

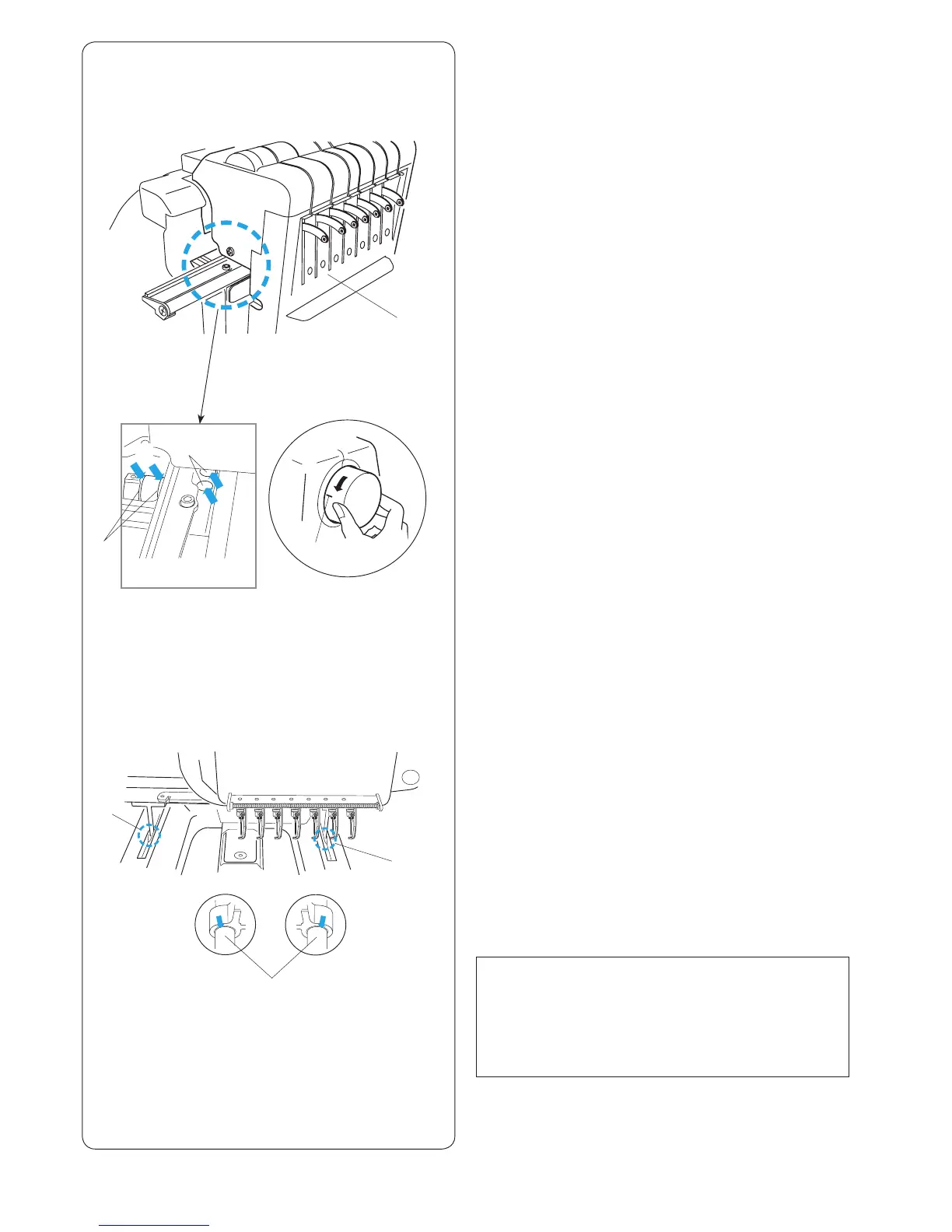

q Oiling points
See page 41 for selecting needle bar #7.
NOTE:
Use only good quality sewing machine oil.
Apply oil only to the points indicated.
Do not apply too much oil, otherwise threads and
fabric may be stained with excess oil.
Wipe off any excess oil with a waste cloth.
x Turn the hand wheel to set the hairline at 9 o’clock so
the crank rod is accessible.
w Hairline
c Apply a few drops of oil to the crank rod.
Apply a few drops of oil to the main shaft through the
2 holes.
e Crank rod
r Main shaft
v Apply a few drops of oil to the Y-carriage bushings
through the slit of the base cover.
t Slit
y Y-carriage bushing
